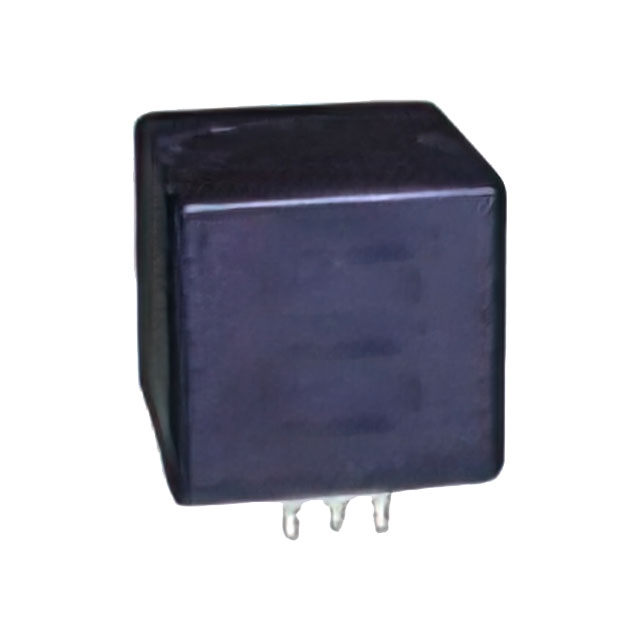

AZ983 Series
Manufacturer: American Zettler
Beta
⌘K
RELAY AUTOMOTIVE SPST 80A 12V
| Part | Coil Power | Coil Resistance | Contact Material | Features | Coil Voltage | Contact Form | Must Operate Voltage | Termination Style | Coil Type | Contact Rating (Current) | Mounting Type | Switching Voltage [Max] | Coil Current | Operating Temperature [Max] | Operating Temperature [Min] | Must Release Voltage | Operate Time | Release Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 1.8 W | 80 Ohms | Silver Tin Oxide (AgSnO) | Sealed - Epoxy | 12 VDC | SPST-NO (1 Form A) | 7.8 VDC | PC Pin | Non Latching | 80 A | Through Hole | 75 VDC | 0.15 A | 85 °C | -40 C | 1.2 VDC | 7 ms | 5 ms |
American Zettler | 1.8 W | 80 Ohms | Silver Tin Oxide (AgSnO) | Sealed - Epoxy | 12 VDC | SPDT (1 Form C) | 7.8 VDC | PC Pin | Non Latching | 60 A | Through Hole | 75 VDC | 0.15 A | 85 °C | -40 C | 1.2 VDC | 7 ms | 5 ms |
