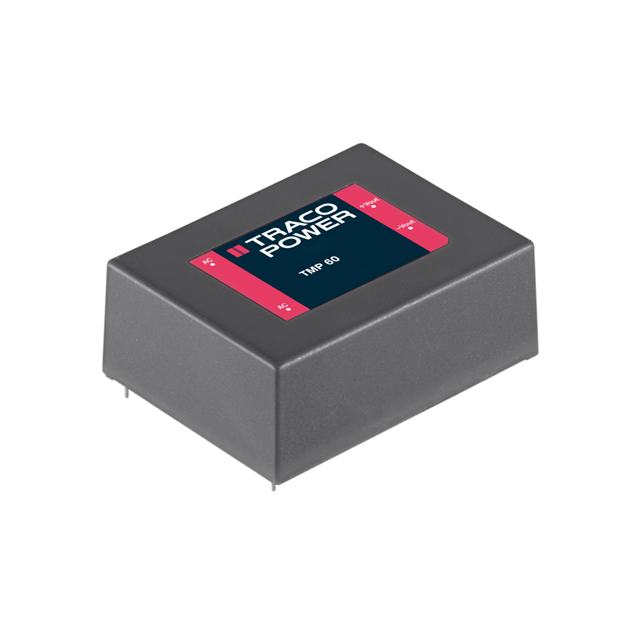

TMP 60 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER 48V 60W
| Part | Current - Output (Max) [Max] | Power (Watts) | Package / Case | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Type | Features | Approval Agency | Mounting Type | Voltage - Input [Min] | Voltage - Input [Max] | Efficiency | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Applications | Load Regulation | Line Regulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 1.25 A | 60 W | 6-DIP Module 4 Leads | 2.66 in | 34.2 mm | 1.35 in | 3.5 " | 88.9 mm | 67.5 mm | Enclosed | OTP SCP Universal Input | CB CE cULus cURus | Through Hole | 85 VAC 120 VDC | 264 VAC 370 VDC | 84 % | 1 | 70 °C | -25 °C | 48 V | ITE (Commercial) | ||
 Traco Power | 2.5 A | 60 W | 7-DIP Module 4 Leads | 2.66 in | 34.2 mm | 1.35 in | 3.5 " | 88.9 mm | 67.5 mm | Enclosed | OTP SCP Universal Input | CB CE cULus cURus | Through Hole | 85 VAC 120 VDC | 264 VAC 370 VDC | 84 % | 1 | 70 °C | -25 °C | 24 V | ITE (Commercial) | ±1% | 1 % |
