BM23FR0.6 Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS 10P RCPT STRGHT SMT SIGNAL ONLY

Part	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Rows [custom]	Features	Connector Type	Mated Stacking Heights	Pitch	Pitch	Height Above Board [z]	Height Above Board [z]

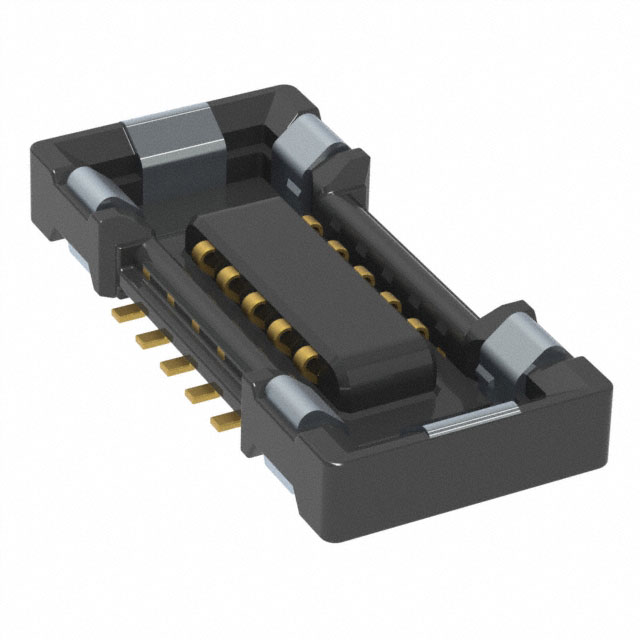

Hirose Electric Co Ltd BM23FR0.6-10DS-0.35V(895)	10	Gold	1.97 Áin	0.05 Ám	Surface Mount	2	Solder Retention	Receptacle Center Strip Contacts	0.6 mm	0.014 in	0.35 mm	0.024 in	0.61 mm

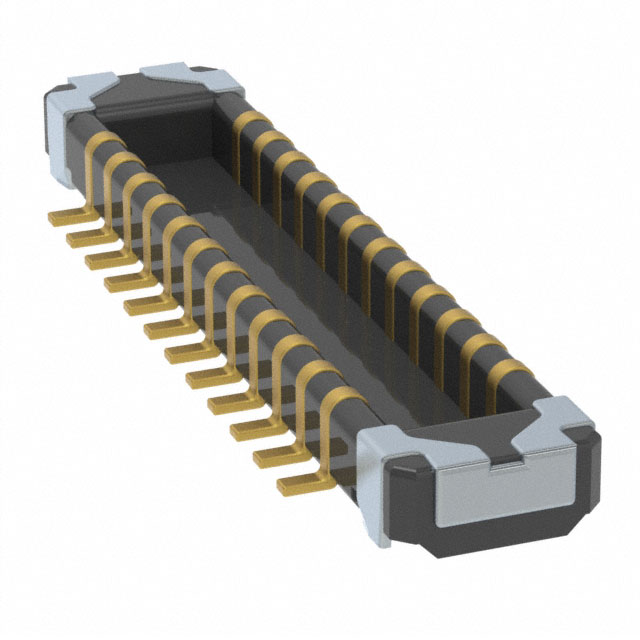

Hirose Electric Co Ltd BM23FR0.6-24DP-0.35V(895)	24	Gold	1.97 Áin	0.05 Ám	Surface Mount	2	Solder Retention	Header Outer Shroud Contacts	0.6 mm	0.014 in	0.35 mm	0.02 in	0.5 mm

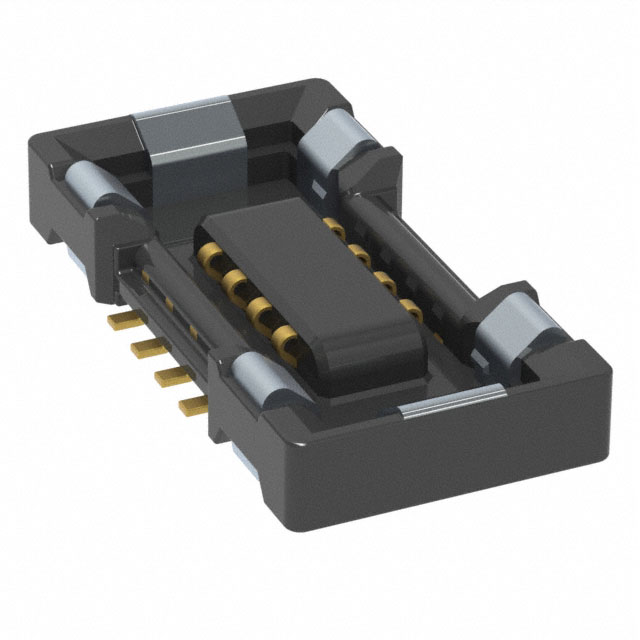

Hirose Electric Co Ltd BM23FR0.6-8DS-0.35V(895)	8	Gold	1.97 Áin	0.05 Ám	Surface Mount	2	Solder Retention	Receptacle Center Strip Contacts	0.6 mm	0.014 in	0.35 mm	0.024 in	0.61 mm

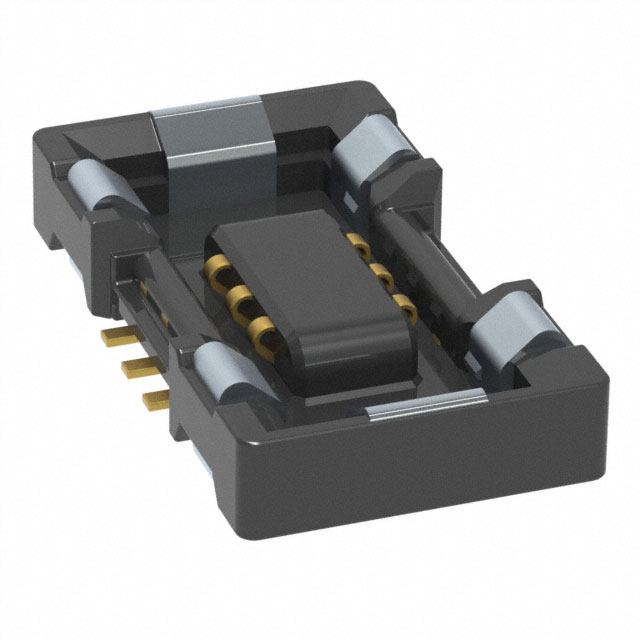

Hirose Electric Co Ltd BM23FR0.6-6DS-0.35V(51)	6	Gold	1.97 Áin	0.05 Ám	Surface Mount	2	Solder Retention	Receptacle Center Strip Contacts	0.6 mm	0.014 in	0.35 mm	0.024 in	0.61 mm
Hirose Electric Co Ltd BM23FR0.6-8DS-0.35V(51)	8	Gold	1.97 Áin	0.05 Ám	Surface Mount	2	Solder Retention	Receptacle Center Strip Contacts	0.6 mm	0.014 in	0.35 mm	0.024 in	0.61 mm

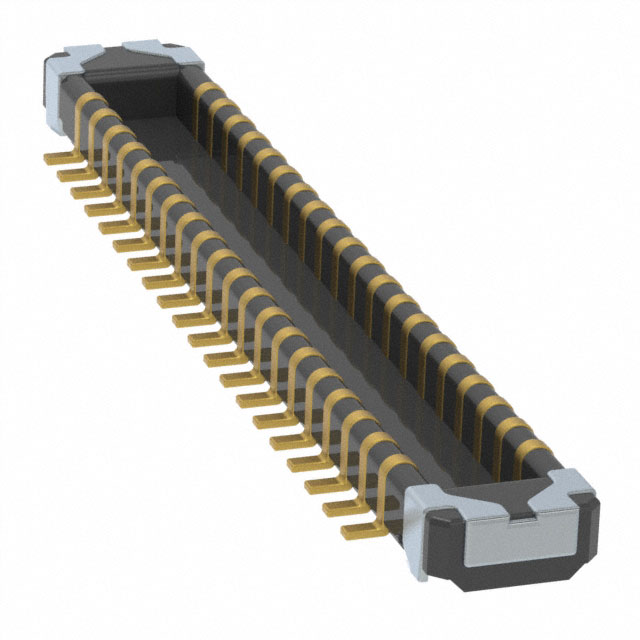

Hirose Electric Co Ltd BM23FR0.6-40DP-0.35V(51)	40	Gold	1.97 Áin	0.05 Ám	Surface Mount	2	Solder Retention	Header Outer Shroud Contacts	0.6 mm	0.014 in	0.35 mm	0.02 in	0.5 mm

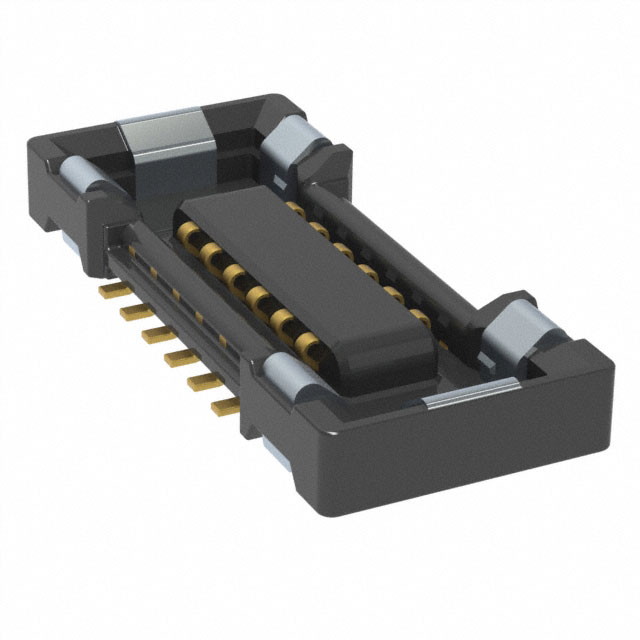

Hirose Electric Co Ltd BM23FR0.6-12DS-0.35V(51)	12	Gold	1.97 Áin	0.05 Ám	Surface Mount	2	Solder Retention	Receptacle Center Strip Contacts	0.6 mm	0.014 in	0.35 mm	0.024 in	0.61 mm

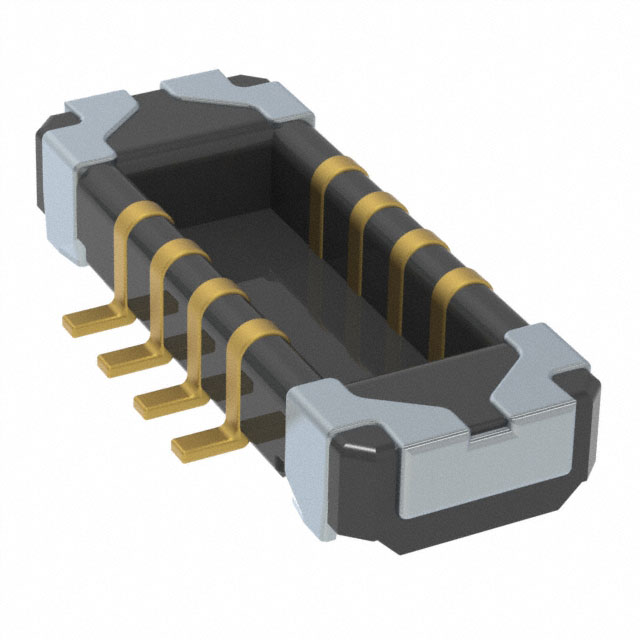

Hirose Electric Co Ltd BM23FR0.6-8DP-0.35V(895)	8	Gold	1.97 Áin	0.05 Ám	Surface Mount	2	Solder Retention	Header Outer Shroud Contacts	0.6 mm	0.014 in	0.35 mm	0.02 in	0.5 mm
Hirose Electric Co Ltd BM23FR0.6-8DP-0.35V(51)	8	Gold	1.97 Áin	0.05 Ám	Surface Mount	2	Solder Retention	Header Outer Shroud Contacts	0.6 mm	0.014 in	0.35 mm	0.02 in	0.5 mm
Hirose Electric Co Ltd BM23FR0.6-6DS-0.35V(895)	6	Gold	1.97 Áin	0.05 Ám	Surface Mount	2	Solder Retention	Receptacle Center Strip Contacts	0.6 mm	0.014 in	0.35 mm	0.024 in	0.61 mm
