845-080 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 80POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Number of Positions/Bay/Row [custom]	Number of Rows [custom]	Mounting Type	Contact Type	Number of Positions	Contact Material	Termination	Contact Finish Thickness	Contact Finish Thickness	Color	Card Type	Flange Feature [diameter]	Flange Feature [diameter]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Gender	Flange Feature	Features

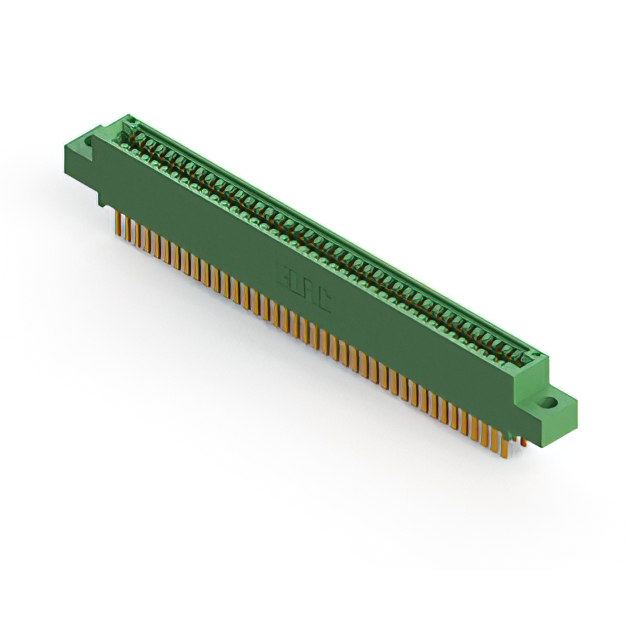

EDAC Inc. 845-080-544-504	Diallyl Phthalate (DAP)	2	Gold	125 °C	-40 C	Dual	40	2	Through Hole	Cantilever	80	Copper Alloy	Wire Wrap	0.25 Ám	10 Áin	Green	Non Specified - Dual Edge	0.156 "	3.96 mm	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female

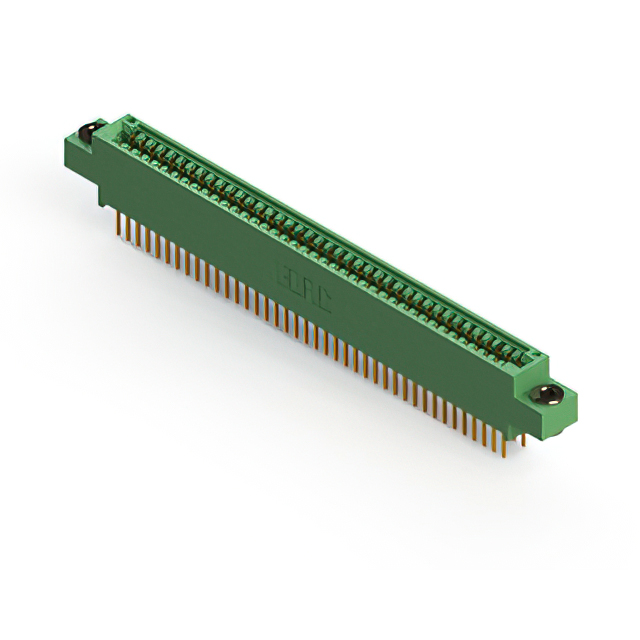

EDAC Inc. 845-080-541-803	Diallyl Phthalate (DAP)	2	Gold	125 °C	-40 C	Dual	40	2	Through Hole	Cantilever	80	Copper Alloy	Wire Wrap	0.25 Ám	10 Áin	Green	Non Specified - Dual Edge	0.116 "	2.95 mm	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Floating Bobbin Top Mount Opening
EDAC Inc. 845-080-500-803	Diallyl Phthalate (DAP)	2	Gold	125 °C	-40 C	Dual	40	2	Through Hole	Cantilever	80	Copper Alloy	Solder Eyelet(s)	0.25 Ám	10 Áin	Green	Non Specified - Dual Edge	0.116 "	2.95 mm	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Floating Bobbin Top Mount Opening
EDAC Inc. 845-080-558-507	Diallyl Phthalate (DAP)	2	Gold	125 °C	-40 C	Dual	40	2	Right Angle Through Hole	Cantilever	80	Copper Alloy	Solder	0.25 Ám	10 Áin	Green	Non Specified - Dual Edge			0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	M3 Threaded Insert Top Mount Opening

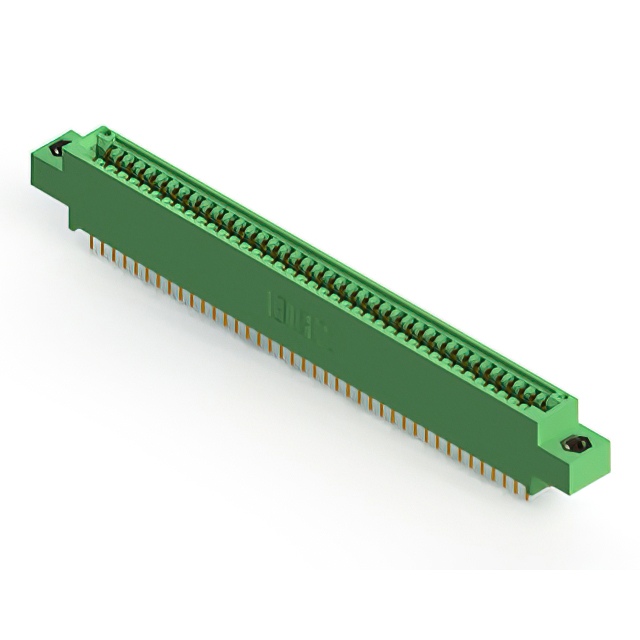

EDAC Inc. 845-080-525-808	Diallyl Phthalate (DAP)	2	Gold	125 °C	-40 C	Dual	40	2	Through Hole	Cantilever	80	Copper Alloy	Solder	0.25 Ám	10 Áin	Green	Non Specified - Dual Edge			0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	4-40 Threaded Insert Top Mount Opening

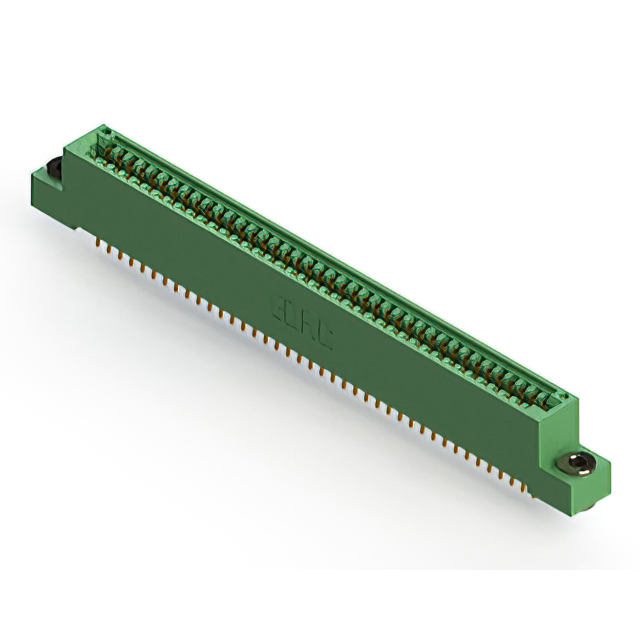

EDAC Inc. 845-080-556-203	Diallyl Phthalate (DAP)	2	Gold	125 °C	-40 C	Dual	40	2	Board Edge Straddle Mount	Cantilever	80	Copper Alloy	Solder	0.25 Ám	10 Áin	Green	Non Specified - Dual Edge	0.116 "	2.95 mm	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Floating Bobbin Flush Mount	Card Extender
EDAC Inc. 845-080-521-808	Diallyl Phthalate (DAP)	2	Gold	125 °C	-40 C	Dual	40	2	Through Hole	Cantilever	80	Copper Alloy	Solder	0.25 Ám	10 Áin	Green	Non Specified - Dual Edge			0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 845-080-560-202	Diallyl Phthalate (DAP)	2	Gold	125 °C	-40 C	Dual	40	2	Board Edge Straddle Mount	Cantilever	80	Copper Alloy	Solder	0.25 Ám	10 Áin	Green	Non Specified - Dual Edge	0.128 "	3.25 mm	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Flush Mount Top Opening Unthreaded	Card Extender
EDAC Inc. 845-080-521-804	Diallyl Phthalate (DAP)	2	Gold	125 °C	-40 C	Dual	40	2	Through Hole	Cantilever	80	Copper Alloy	Solder	0.25 Ám	10 Áin	Green	Non Specified - Dual Edge	0.156 "	3.96 mm	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female
EDAC Inc. 845-080-540-207	Diallyl Phthalate (DAP)	2	Gold	125 °C	-40 C	Dual	40	2	Through Hole	Cantilever	80	Copper Alloy	Wire Wrap	0.25 Ám	10 Áin	Green	Non Specified - Dual Edge			0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Flush Mount M3 Threaded Insert Top Opening
