AMSRB Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER 3.3V 1.7W

Part	Package / Case	Supplier Device Package	Applications	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Approval Agency	Type	Mounting Type	Efficiency	Power (Watts)	Standard Number	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max)	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]
aimtec AMSRB-783.3Z	3-SIP Module	3-SIP Module	ITE (Commercial)	1	28 V	3.3 V	500 mA	4.5 V	-40 °C	85 °C	7.5 mm	0.3 "	0.4 "	10.2 mm	0.46 in	11.7 mm	CE	Non-Isolated PoL Module	Through Hole	75 %	1.65 W

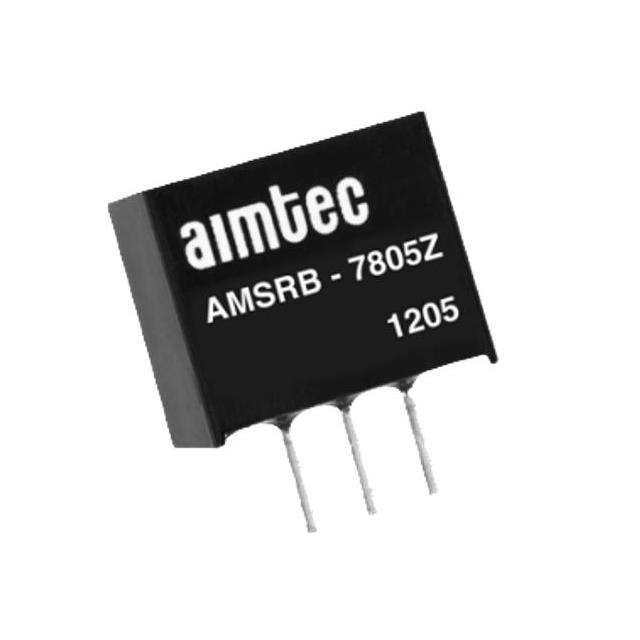

aimtec AMSRB-7812Z	3-SIP Module	3-SIP Module	ITE (Commercial)	1	28 V	12 V	500 mA	14 V	-40 °C	85 °C	7.5 mm	0.29 in	0.4 "	10.2 mm	0.46 in	11.7 mm	CE	Non-Isolated PoL Module	Through Hole	90 %	6 W	55032 Class B
aimtec AMSRB-7805Z	3-SIP Module		ITE (Commercial)	1	28 V	5 V	500 mA	7 V	-40 C	85 °C	7.5 mm	0.29 in	0.4 "	10.2 mm	0.46 in	11.7 mm	CE	Non-Isolated PoL Module	Through Hole	80 %

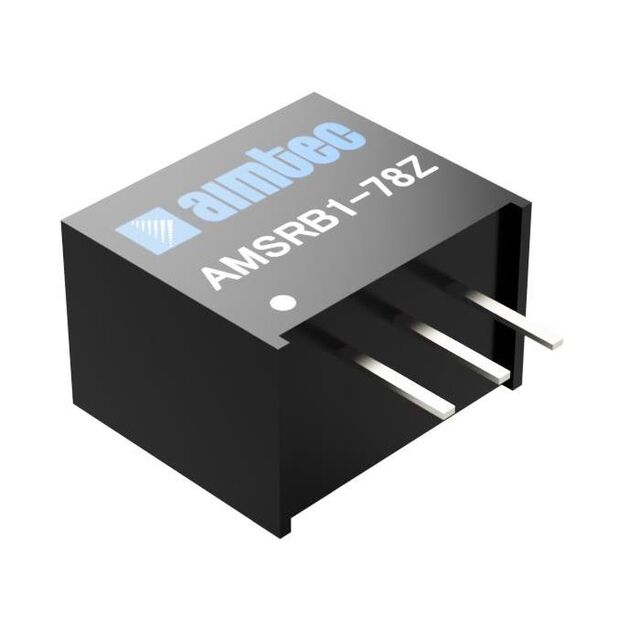

aimtec AMSRB1-7805Z	3-SIP Module		ITE (Commercial)	1	28 V	5 V	1 A	8 V	-40 C	85 °C		0.3 "	0.4 "		0.46 in	11.7 mm		Non-Isolated PoL Module	Through Hole	86 %	5 W		10.2 mm	7.7 mm

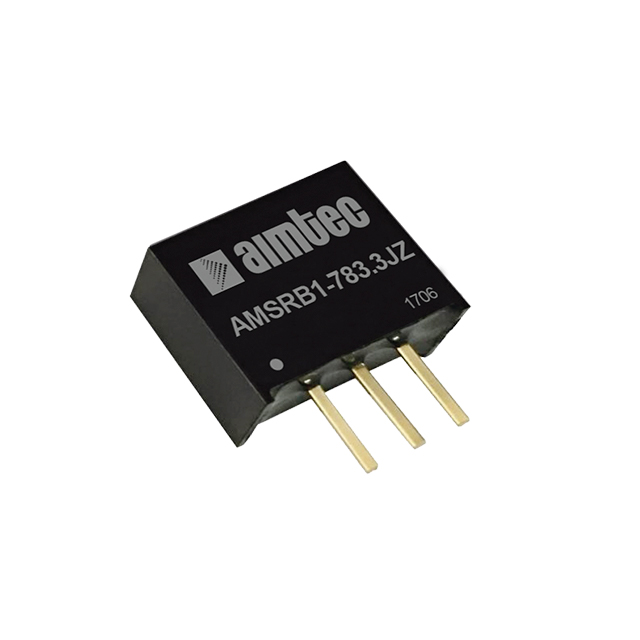

aimtec AMSRB1-7812JZ	3-SIP Module	3-SIP	ITE (Commercial)	1	36 V	12 V	1 A	16 V	-40 °C	85 °C	8 mm	0.32 "	0.41 in	10.4 mm	0.46 in	11.6 mm		Non-Isolated PoL Module	Through Hole	96 %	12 W				1 A 300 mA
aimtec AMSRB1-7809JZ	3-SIP Module		ITE (Commercial)	1	36 V	9 V	1 A	13 V	-40 C	85 °C	8 mm	0.31 in	0.41 in	10.4 mm	0.46 in	11.6 mm		Non-Isolated PoL Module	Through Hole	89 %	9 W
aimtec AMSRB1-783.3JZ	3-SIP Module		ITE (Commercial)	1	36 V	3.3 V	1 A	6 V	-40 C	85 °C	8 mm	0.31 in	0.41 in	10.4 mm	0.46 in	11.6 mm		Non-Isolated PoL Module	Through Hole	80 %	3.3 W
aimtec AMSRB-7815Z	3-SIP Module	3-SIP Module	ITE (Commercial)	1	28 V	15 V	500 mA	17 V	-40 °C	85 °C	7.5 mm	0.29 in	0.4 "	10.2 mm	0.46 in	11.7 mm	CE	Non-Isolated PoL Module	Through Hole	92 %	7.5 W	55032 Class B

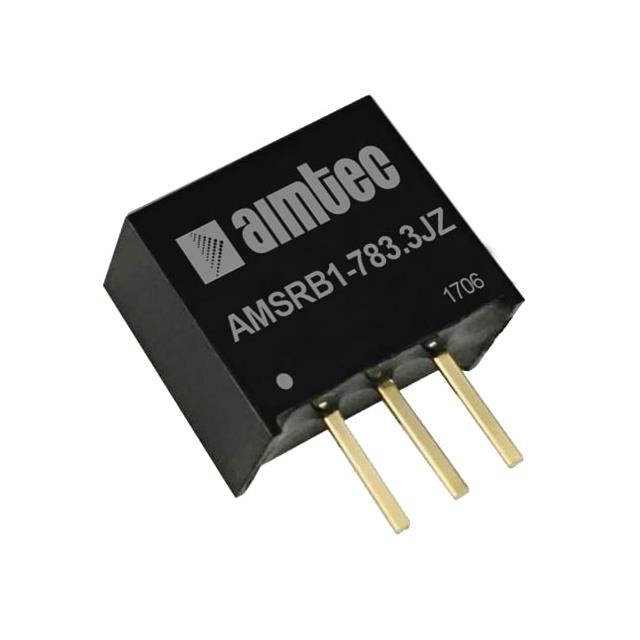

aimtec AMSRB1-7815JZ	3-SIP Module		ITE (Commercial)	1	36 V		1 A	20 V	-40 C	85 °C	8 mm	0.31 in	0.41 in	10.4 mm	0.46 in	11.6 mm		Non-Isolated PoL Module	Through Hole	93 %	15 W					15 V	-15 V
aimtec AMSRB1-7805JZ	3-SIP Module	3-SIP	ITE (Commercial)	1	36 V	5 V	1 A	8 V	-40 °C	85 °C	8 mm	0.32 "	0.41 in	10.4 mm	0.46 in	11.6 mm		Non-Isolated PoL Module	Through Hole	93 %	5 W
