BXRE-27 Series

Manufacturer: BRIDGELUX

Catalog

Catalog

LED COB V8 ARRAY WM WHT SQ 2700K

...

Part	Configuration	CCT (K)	CCT (K)	Lens Type	Temperature - Test	Type	Current - Test	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [diameter]	Size / Dimension [y]	Size / Dimension [x]	Height [z]	Current - Max [Max]	Lumens/Watt @ Current - Test	Color	Viewing Angle	CRI (Color Rendering Index)	Features

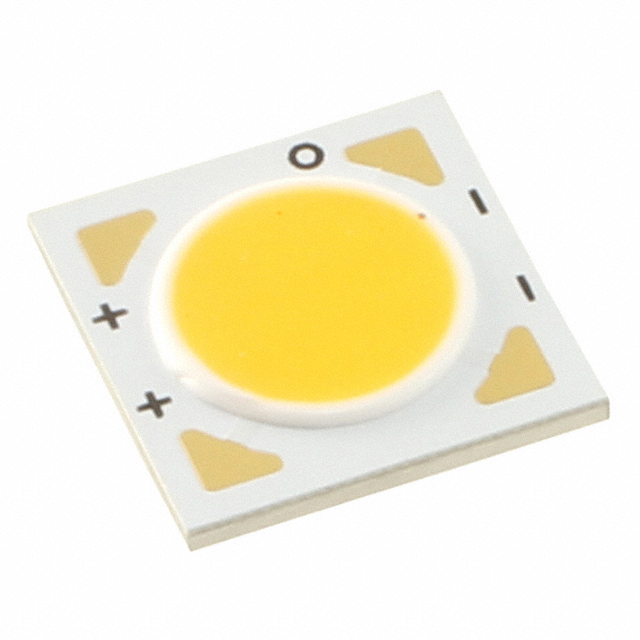

BRIDGELUX BXRE-27E0800-B-03	Square	2700 K	3-Step MacAdam Ellipse	Flat	25 °C	Chip On Board (COB)	350 mA	705 lm	17.8 V	8.1 mm	12.5 mm	12.5 mm	1.7 mm	700 mA	113 lm/W	Warm White	120 °	80
BRIDGELUX BXRE-27E2000-B-73	Square	2700 K	3-Step MacAdam Ellipse	Flat	85 °C	Chip On Board (COB)	450 mA	2090 lm 2160 lm	33.9 V	14 mm	19 mm	19 mm	1.7 mm	900 mA	137 lm/W 142 lm/W	Warm White	120 °	80
BRIDGELUX BXRE-27E6500-D-72	Square	2700 K	2-Step MacAdam Ellipse	Flat	85 °C	Chip On Board (COB)		6635 lm 6768 lm	33.4 V	22.6 mm	28 mm	28 mm	1.7 mm	2.8 A	142 lm/W 145 lm/W	Warm White	120 °	80
BRIDGELUX BXRE-27G3001-D-23	Square	2700 K	3-Step MacAdam Ellipse	Flat	25 °C	Chip On Board (COB)		2520 lm	36 V	15.2 mm	21 mm	21 mm	1.7 mm	1.4 A	100 lm/W	Warm White	120 °	90
BRIDGELUX BXRE-27G65F0-C-83	Square	2700 K		Flat	85 °C	Chip On Board (COB)		20808 lm	57 V	23.3 mm	28 mm	28 mm	1.65 mm	2.7 A	135 lm/W	Warm White	120 °	90	Dimming
BRIDGELUX BXRE-27G4000-C-72	Square	2700 K	2-Step MacAdam Ellipse	Flat	85 °C	Chip On Board (COB)	1.17 A	4529 lm	34 V	19.2 mm	24 mm	24 mm	1.7 mm	2.34 A	114 lm/W	Warm White	120 °	90
BRIDGELUX BXRE-27G1000-C-72	Square	2700 K	2-Step MacAdam Ellipse	Flat	85 °C	Chip On Board (COB)	360 mA	1348 lm	33.8 V	10.2 mm	13.5 mm	13.5 mm	1.7 mm	720 mA	110 lm/W	Warm White	120 °	90
BRIDGELUX BXRE-27G40F0-C-83	Square	2700 K		Flat	85 °C	Chip On Board (COB)		11157 lm	38 V	19.6 mm	24 mm	24 mm	1.65 mm	2.16 A	136 lm/W	Warm White	120 °	90	Dimming
BRIDGELUX BXRE-27G20F0-C-83	Square	2700 K		Flat	25 °C	Chip On Board (COB)	500 mA	3146 lm	33.4 V	14.8 mm	19 mm	19 mm	1.65 mm	1.26 A	184 lm/W	Warm White	120 °	90	Dimming
BRIDGELUX BXRE-27G4000-C-73	Square	2700 K	3-Step MacAdam Ellipse	Flat	85 °C	Chip On Board (COB)	1.17 A	4529 lm	34 V	19.2 mm	24 mm	24 mm	1.7 mm	2.34 A	114 lm/W	Warm White		90
