GRN-45 Series

Catalog

GRN-45-4001 OVP CHCO

Part	Number of Outputs	Voltage - Output 2	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Type	Operating Temperature [Max]	Standard Number	Voltage - Output 1	Voltage - Output 3	Current - Output 2	Current - Output 4	Current - Output 1	Mounting Type	Efficiency	Power (Watts)	Features	Approval Agency	Applications	Voltage - Output 4
Integrated Power Designs 1011391CHCO	4	5 V	4.5 in	69.9 mm	114.3 mm	32.5 mm	1.28 "	2.75 in	Enclosed	70 °C	60601-1; 62368-1	3.3 V	12 V	5 A	1 A	5 A	Chassis Mount	85 %	45 W	Adjustable Output Universal Input	CE cURus TUV UKCA	ITE (Commercial) Medical	-12 V

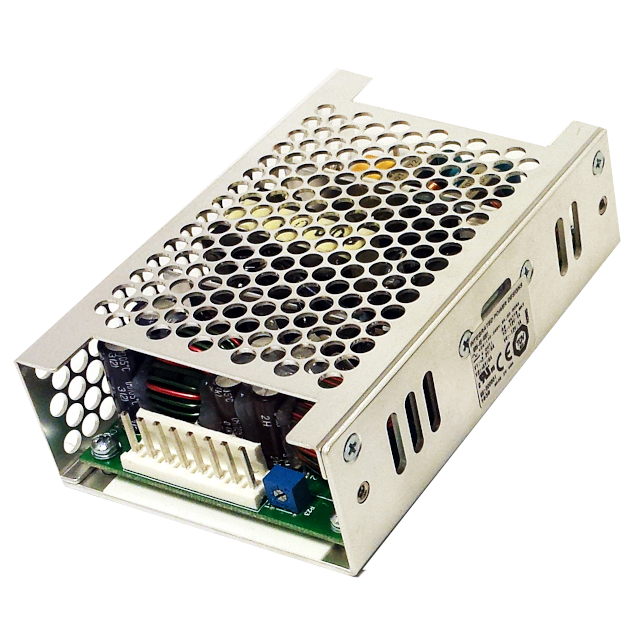

Integrated Power Designs 1011266CHCO	3	15 V	4.5 in	69.9 mm	114.3 mm	32.5 mm	1.28 "	2.75 in	Enclosed	70 °C	60601-1; 62368-1	5 V	-15 V	1 A		5 A	Chassis Mount	85 %	45 W	Adjustable Output Universal Input	CE cURus TUV UKCA	ITE (Commercial) Medical
Integrated Power Designs 1011265CHCO	3	12 V	4.5 in	69.9 mm	114.3 mm	32.5 mm	1.28 "	2.75 in	Enclosed	70 °C	60601-1; 62368-1	5 V	-12 V	1 A		5 A	Chassis Mount	85 %	45 W	Adjustable Output Universal Input	CE cURus TUV UKCA	ITE (Commercial) Medical
Integrated Power Designs 1011265CH	3	12 V	4.5 in	69.9 mm	114.3 mm	32.5 mm	1.28 "	2.75 in	Chassis	70 °C	60601-1; 62368-1	5 V	-12 V	1 A		5 A	Chassis Mount	85 %	45 W	Adjustable Output Universal Input	CE cURus TUV UKCA	ITE (Commercial) Medical
Integrated Power Designs 1011270CH	2	-15 V	4.5 in	69.9 mm	114.3 mm	32.5 mm	1.28 "	2.75 in	Chassis	70 °C	60601-1; 62368-1	15 V		2 A		2 A	Chassis Mount	85 %	45 W	Adjustable Output Universal Input	CE cURus TUV UKCA	ITE (Commercial) Medical
Integrated Power Designs 1011266CH	3	15 V	4.5 in	69.9 mm	114.3 mm	32.5 mm	1.28 "	2.75 in	Chassis	70 °C	60601-1; 62368-1	5 V	-15 V	1 A		5 A	Chassis Mount	85 %	45 W	Adjustable Output Universal Input	CE cURus TUV UKCA	ITE (Commercial) Medical
Integrated Power Designs 1011399CH	2	-12 V	4.5 in	69.9 mm	114.3 mm	32.5 mm	1.28 "	2.75 in	Chassis	70 °C	60601-1; 62368-1	12 V		2 A		2 A	Chassis Mount	85 %	45 W	Adjustable Output Universal Input	CE cURus TUV UKCA	ITE (Commercial) Medical
Integrated Power Designs 1011270CHCO	2	-15 V	4.5 in	69.9 mm	114.3 mm	32.5 mm	1.28 "	2.75 in	Enclosed	70 °C	60601-1; 62368-1	15 V		2 A		2 A	Chassis Mount	85 %	45 W	Adjustable Output Universal Input	CE cURus TUV UKCA	ITE (Commercial) Medical
Integrated Power Designs 1011269CHCO	2	-12 V	4.5 in	69.9 mm	114.3 mm	32.5 mm	1.28 "	2.75 in	Enclosed	70 °C	60601-1; 62368-1	12 V		2 A		2 A	Chassis Mount	85 %	45 W	Adjustable Output Universal Input	CE cURus TUV UKCA	ITE (Commercial) Medical
Integrated Power Designs 1011398CH	2	12 V	4.5 in	69.9 mm	114.3 mm	32.5 mm	1.28 "	2.75 in	Chassis	70 °C	60601-1; 62368-1	5 V		2 A		5 A	Chassis Mount	85 %	45 W	Adjustable Output Universal Input	CE cURus TUV UKCA	ITE (Commercial) Medical
