C2686 Series
Manufacturer: Prysmian Group
Beta
⌘K

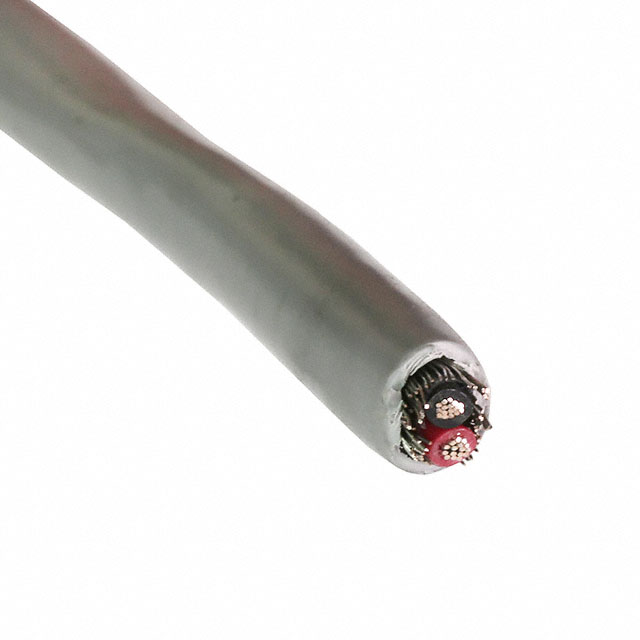

CABLE 2CON 18AWG GRAY SHLD
| Part | Shield Type | Jacket (Insulation) Material | Cable Type | Length [x] | Length [x] | Length | Length | Conductor Material | Ratings | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Voltage | Shield Coverage | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | Braid | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 100 ft | 30.5 m | 15.24 m 304.8 m | 50 ft 1000 ft | Copper Annealed Tinned | ASTM B-33 | 18 AWG | 0.813 mm | 0.032 in | Communication Control | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | 2 | 0.252 in | 6.4 mm | Gray | 80 °C | -20 ░C | 300 VDC | ||
Prysmian Group | Braid | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 152.4 m | 500 ft | Copper Annealed Tinned | ASTM B-33 | 18 AWG | 0.813 mm | 0.032 in | Communication Control | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | 2 | 0.252 in | 6.4 mm | Gray | 80 °C | -20 ░C | 300 VDC | 75 % | Copper Tinned | ||
Prysmian Group | Braid | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 100 ft | 30.5 m | 304.8 m | 1000 ft | Copper Annealed Tinned | ASTM B-33 | 18 AWG | 0.813 mm | 0.032 in | Communication Control | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | 2 | 0.252 in | 6.4 mm | Gray | 80 °C | -20 ░C | 300 VDC | 75 % | Copper Tinned |
