T16-100 Series

Catalog

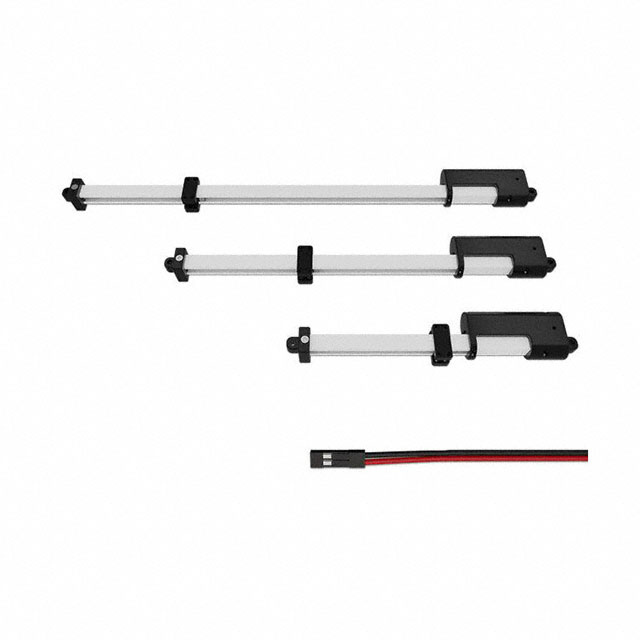

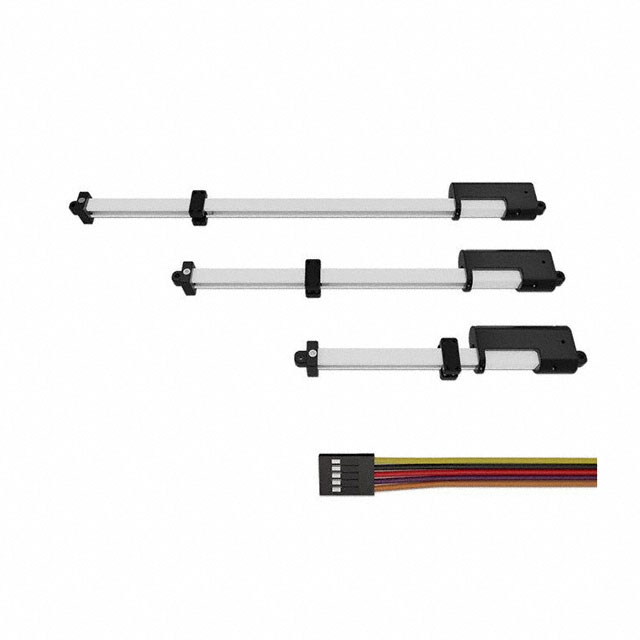

T16-S MICRO LINEAR ACTUATOR

Part	Load Force (Dynamic)	Load Force (Dynamic)	Voltage - Rated	Accuracy	Type	Stroke Length	Stroke Length	Gear Reduction Ratio	Speed	Speed	Features	Operating Temperature [Max]	Operating Temperature [Min]	Load Force (Static)	Load Force (Static)	Construction	Motor Type	Duty Cycle	Feedback Type
Actuonix Motion Devices Inc T16-100-256-12-S	300 N	67.44 lbf	12 VDC	0.4 mm	Linear Actuator	100 mm	3.937 in	256	4.8 mm/s	0.19 in/s	Limit Switches	50 °C	-10 °C	122.4 lbf	500 N	Ball Screw	Brushed	20 %
Actuonix Motion Devices Inc T16-100-64-12-P	90 N	20.23 lbf	12 VDC	0.4 mm	Linear Actuator	100 mm	3.937 in	64	18 mm/s	0.71 in/s		50 °C	-10 °C	122.4 lbf	500 N	Ball Screw	Brushed	20 %	Potentiometer
Actuonix Motion Devices Inc T16-100-64-12-S	90 N	20.23 lbf	12 VDC	0.4 mm	Linear Actuator	100 mm	3.937 in	64	18 mm/s	0.71 in/s	Limit Switches	50 °C	-10 °C	122.4 lbf	500 N	Ball Screw	Brushed	20 %
Actuonix Motion Devices Inc T16-100-256-12-P	300 N	67.44 lbf	12 VDC	0.4 mm	Linear Actuator	100 mm	3.937 in	256	4.8 mm/s	0.19 in/s		50 °C	-10 °C	122.4 lbf	500 N	Ball Screw	Brushed	20 %	Potentiometer
Actuonix Motion Devices Inc T16-100-22-12-S	50 N	11.24 lbf	12 VDC	0.4 mm	Linear Actuator	100 mm	3.937 in	22	46 mm/s	1.81 in/s	Limit Switches	50 °C	-10 °C	122.4 lbf	500 N	Ball Screw	Brushed	20 %
Actuonix Motion Devices Inc T16-100-22-12-P	50 N	11.24 lbf	12 VDC	0.4 mm	Linear Actuator	100 mm	3.937 in	22	46 mm/s	1.81 in/s		50 °C	-10 °C	122.4 lbf	500 N	Ball Screw	Brushed	20 %	Potentiometer
