THI 2 Series

Catalog

DC DC CONVERTER +/-12V 2W

Part	Power (Watts)	Voltage - Output 2	Number of Outputs	Voltage - Isolation	Features	Voltage - Input (Max) [Max]	Voltage - Output 1	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Output (Max)	Current - Output (Max)	Type	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Applications	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]

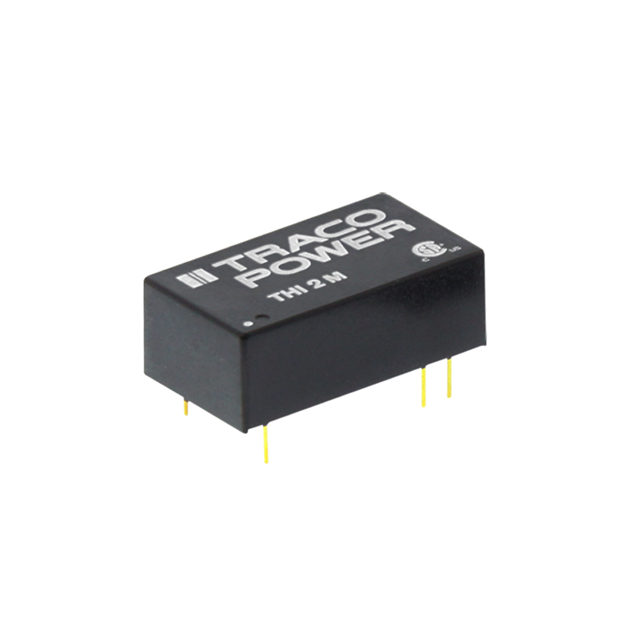

Traco Power THI 2-2422M	2 W	-12 V	2	3000 V	SCP	26.4 V	12 V	Through Hole	-40 °C	71 °C	16-DIP Module 6 Leads	83 mA	83 mA	Isolated Module	74 %	0.34 in	23.8 mm	0.54 in	0.94 in	13.7 mm	8.6 mm	ITE (Commercial) Medical	21.6 V
Traco Power THI 2-0512M	2 W		1	3000 V	SCP	5.5 V	12 V	Through Hole	-40 °C	71 °C	16-DIP Module 6 Leads			Isolated Module	66 %	0.34 in	23.8 mm	0.54 in	0.94 in	13.7 mm	8.6 mm	ITE (Commercial) Medical	4.5 V	165 mA
Traco Power THI 2-1223M	2 W	-15 V	2	3000 V	SCP	13.2 V	15 V	Through Hole	-40 °C	71 °C	16-DIP Module 6 Leads	66 mA		Isolated Module	75 %	0.34 in	23.8 mm	0.54 in	0.94 in	13.7 mm	8.6 mm	ITE (Commercial) Medical	10.8 V
Traco Power THI 2-2413M	2 W		1	3000 V	SCP	26.4 V	15 V	Through Hole	-40 °C	71 °C	16-DIP Module 6 Leads			Isolated Module	66 %	0.34 in	23.8 mm	0.54 in	0.94 in	13.7 mm	8.6 mm	ITE (Commercial) Medical	21.6 V	133 mA
Traco Power THI 2-1222M	2 W	-12 V	2	3000 V	SCP	13.2 V	12 V	Through Hole	-40 °C	71 °C	16-DIP Module 6 Leads	83 mA	83 mA	Isolated Module	74 %	0.34 in	23.8 mm	0.54 in	0.94 in	13.7 mm	8.6 mm	ITE (Commercial) Medical	10.8 V
