Board to Board & Mezzanine Connectors
Board to Board & Mezzanine Connectors
| Part | Contact Finish Thickness - Post | Insulation Material | Contact Material | Number of Rows [custom] | Insulation Color | Mated Stacking Heights | Material Flammability Rating | Number of Positions | Contact Finish - Mating | Contact Type | Contact Finish - Post | Features | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Style | Fastening Type | Connector Type | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Insulation Height [z] | Insulation Height [z] | Current Rating (Amps) | Termination | Number of Positions [custom] | Number of Positions [custom] | Contact Shape | Shrouding | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

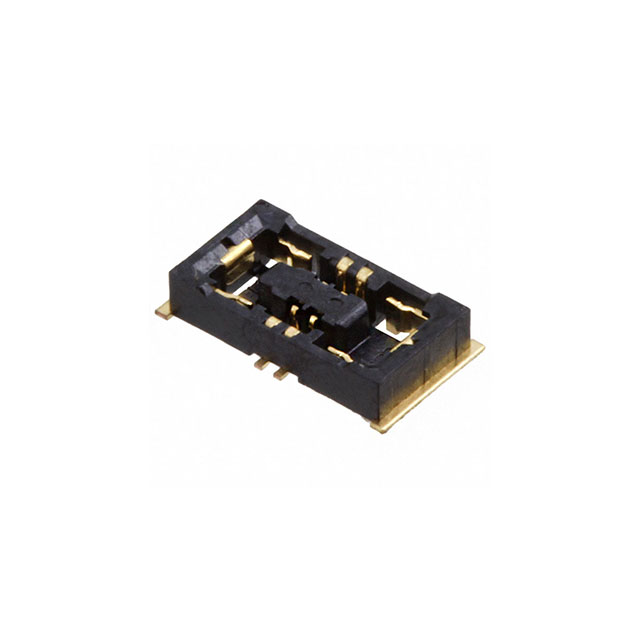

 Hirose Electric Co Ltd | Flash | Liquid Crystal Polymer (LCP) | Copper Alloy | 2 | Black | 0.9 mm | UL94 V-0 | 6 | Gold | Center Strip Contact | Gold | Pick and Place | 50 V | 85 °C | -35 °C | Surface Mount | 0.05 Ám | 1.97 Áin | Board to FPC | Friction Lock | Receptacle | 0.4 mm | 0.016 in | All | 0.9 mm | 0.035 in | 0.3 A 4 A | Solder | ||||||

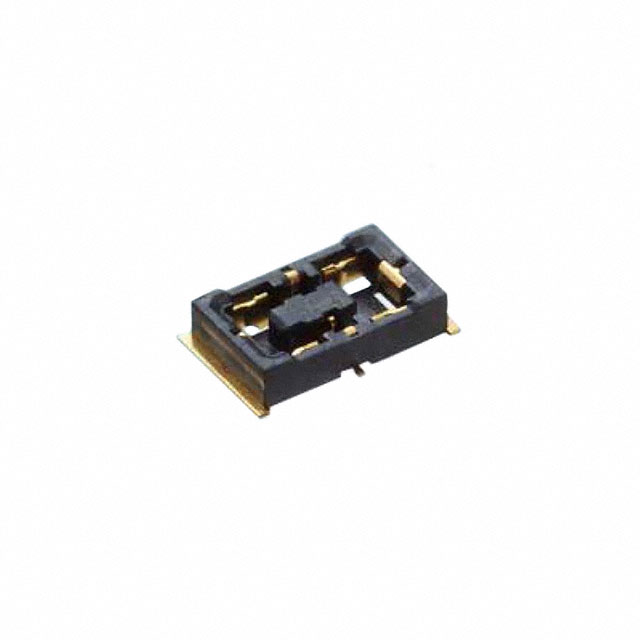

 Hirose Electric Co Ltd | Flash | Liquid Crystal Polymer (LCP) | Copper Alloy | 2 | Black | 0.9 mm | UL94 V-0 | Gold | Center Strip Contact | Gold | Pick and Place | 50 V | 85 °C | -35 °C | Surface Mount | 0.05 Ám | 1.97 Áin | Board to FPC | Friction Lock | Receptacle | All | 0.9 mm | 0.035 in | 0.3 A 4 A | Solder | 4 | 2 | |||||||
 Hirose Electric Co Ltd | Flash | Liquid Crystal Polymer (LCP) | Copper Alloy | 2 | Black | 0.9 mm | UL94 V-0 | Gold | Center Strip Contact | Gold | Pick and Place | 50 V | 85 °C | -35 °C | Surface Mount | 0.76 Ám | 30 Áin | Board to FPC | Friction Lock | Receptacle | All | 0.9 mm | 0.035 in | 0.3 A 4 A | Solder | 4 | 2 | |||||||
 Hirose Electric Co Ltd | Liquid Crystal Polymer (LCP) | Copper Alloy | 2 | Black | UL94 V-0 | 6 | Gold | Center Strip Contact | Tin | 50 VAC | 85 °C | -35 °C | Through Hole | 0.3 Ám | 12 Áin | Push-Pull | Receptacle | 0.4 mm | 0.016 in | All | Solder | Square | ||||||||||||

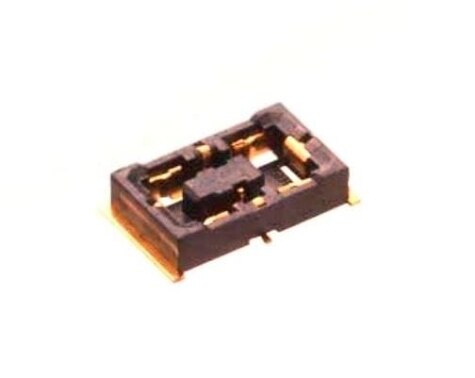

Hirose Electric Co Ltd | Flash | Liquid Crystal Polymer (LCP) | Copper Alloy | 2 | Black | 0.9 mm | UL94 V-0 | 6 | Gold | Center Strip Contact | Gold | Pick and Place | 50 V | 85 °C | -35 °C | Surface Mount | 0.05 Ám | 1.97 Áin | Board to FPC | Friction Lock | Receptacle | 0.4 mm | 0.016 in | All | 0.9 mm | 0.035 in | 0.3 A 4 A | Solder | ||||||
Hirose Electric Co Ltd | Liquid Crystal Polymer (LCP) | Copper Alloy | Black | 0.9 mm | UL94 V-0 | Gold | Outer Shroud Contact | 50 V | 85 °C | -35 °C | Surface Mount | 0.76 Ám | 30 Áin | Friction Lock | Header | All | Solder | 4 | 2 | Shrouded - 4 Wall | 0.03 " | 0.75 mm | ||||||||||||
Hirose Electric Co Ltd | Flash | Liquid Crystal Polymer (LCP) | Copper Alloy | 2 | Black | 0.9 mm | UL94 V-0 | Gold | Center Strip Contact | Gold | Pick and Place | 50 V | 85 °C | -35 °C | Surface Mount | 0.05 Ám | 1.97 Áin | Board to FPC | Friction Lock | Receptacle | All | 0.9 mm | 0.035 in | 0.3 A 4 A | Solder | 4 | 2 | |||||||
Hirose Electric Co Ltd | Flash | Liquid Crystal Polymer (LCP) | Copper Alloy | Black | 0.9 mm | UL94 V-0 | Gold | Outer Shroud Contact | Gold | 50 V | 85 °C | -35 °C | Surface Mount | 0.051 µm | 2 µin | Friction Lock | Header | All | Solder | 4 | 2 | Shrouded - 4 Wall | 0.03 " | 0.75 mm |
