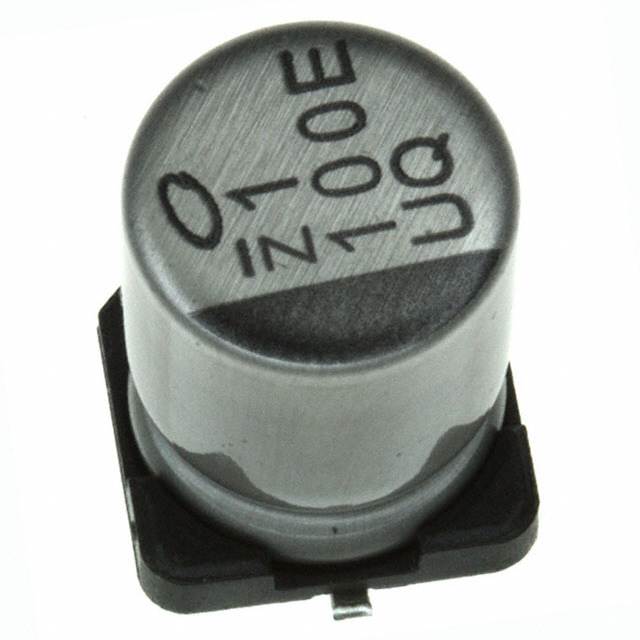

UUQ Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD 16VOLTS 220UF AEC-Q200

Part	Ratings	Capacitance	Ripple Current @ High Frequency	Tolerance	Polarization	Applications	Mounting Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Voltage - Rated	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon UUQ1C221MCL1GS	AEC-Q200	220 µF	315 mA	20 %	Polar	Audio	Surface Mount	8.3 mm	8.3 mm	0.327 in	0.327 in	16 V	Radial Can - SMD	-40 C	105 ░C	0.315 in	8 mm	10 mm	0.394 in	1000 Hrs	210 mA

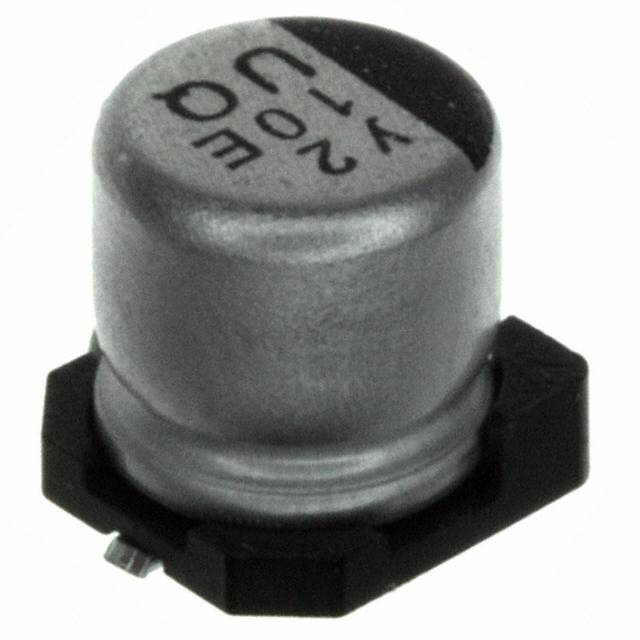

Nichicon UUQ1V100MCL1GB	AEC-Q200	10 µF	37.5 mA	20 %	Polar	Audio	Surface Mount	0.209 in 5.3 mm	0.209 in 5.3 mm			35 V	Radial Can - SMD	-40 C	105 ░C	0.197 in	5 mm	5.4 mm	0.213 in	1000 Hrs	25 mA
Nichicon UUQ1A330MCL1GB	AEC-Q200	33 ÁF		20 %	Polar	Audio	Surface Mount	0.209 in 5.3 mm	0.209 in 5.3 mm			10 V	Radial Can - SMD	-40 C	105 ░C	0.197 in	5 mm	5.4 mm	0.213 in	1000 Hrs	35 mA
Nichicon UUQ1C331MCL1GS	AEC-Q200	330 µF	315 mA	20 %	Polar	Audio	Surface Mount	8.3 mm	8.3 mm	0.327 in	0.327 in	16 V	Radial Can - SMD	-40 C	105 ░C	0.315 in	8 mm	10 mm	0.394 in	1000 Hrs	210 mA
Nichicon UUQ0J221MCL1GS	AEC-Q200	220 µF	153 mA	20 %	Polar	Audio	Surface Mount	8.3 mm	8.3 mm	0.327 in	0.327 in	6.3 VDC	Radial Can - SMD	-40 C	105 ░C	0.315 in	8 mm			1000 Hrs	102 mA	0.244 in	6.2 mm
Nichicon UUQ1V330MCL1GS	AEC-Q200	33 ÁF	88.5 mA	20 %	Polar	Audio	Surface Mount	8.3 mm	8.3 mm	0.327 in	0.327 in	35 V	Radial Can - SMD	-40 C	105 ░C	0.315 in	8 mm			1000 Hrs	59 mA	0.244 in	6.2 mm
