HR31 Series

Catalog

CONN SOCKET 14-16AWG CRIMP GOLD

Part	Pin or Socket	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Contact Finish	Note	Color	Contact Type	Number of Rows	Mounting Type	Pitch	Pitch	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Color	Fastening Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Finish - Mating	Features	Style	Contact Material	Contact Shape	Material Flammability Rating	Insulation Material	Shrouding	Termination	Contact Length - Post	Contact Length - Post

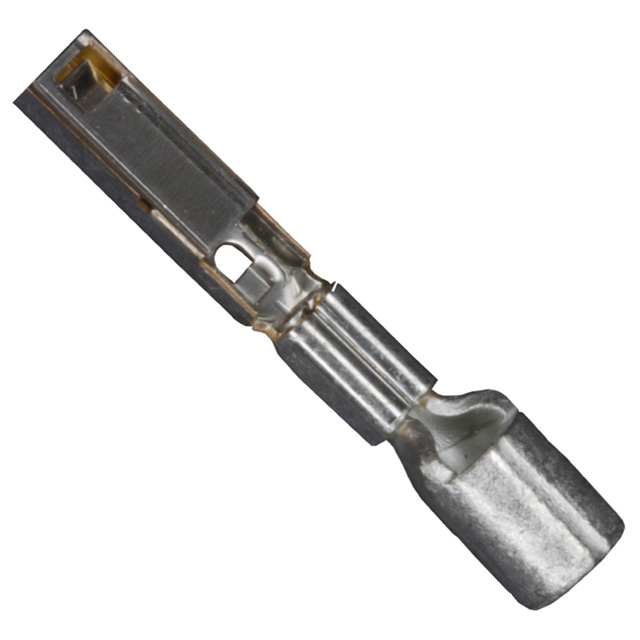

Hirose Electric Co Ltd HR31-SC-111	Socket	14 AWG	16 AWG	Crimp	Gold

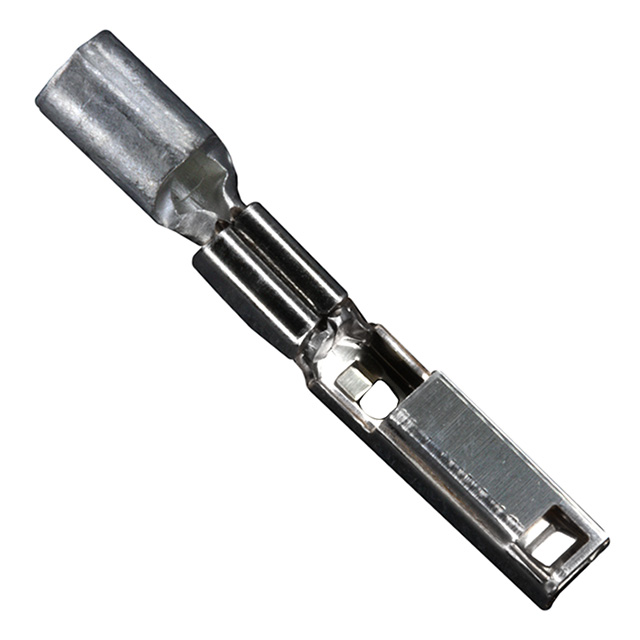

Hirose Electric Co Ltd HR31-SC-121(71)	Socket	17.5 AWG	24 AWG	Crimp	Gold
Hirose Electric Co Ltd HR31-SC-121	Socket	17.5 AWG	24 AWG	Crimp	Gold

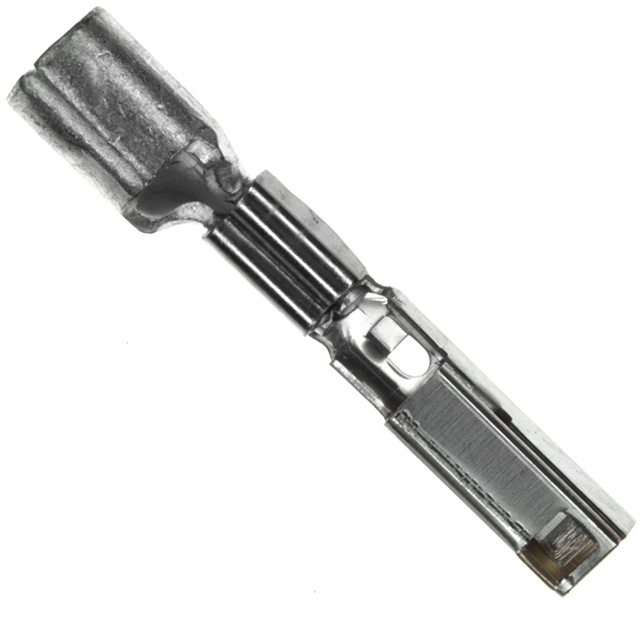

Hirose Electric Co Ltd HR31-SC-111(71)	Socket	14 AWG	16 AWG	Crimp	Gold

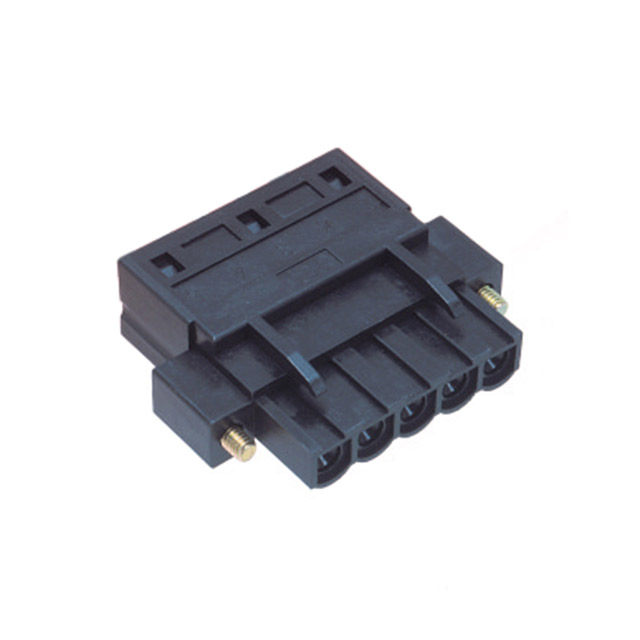

Hirose Electric Co Ltd HR31-5.08P-5SC				Crimp		Contacts Not Included	Black	Female Socket	1	Free Hanging (In-Line)	5.08 mm	0.2 in	5	Plug
Hirose Electric Co Ltd HR31-5.08R-5PDL(75)								Male Pin	1	Right Angle Through Hole			5	Header	0.2 "	5.08 mm	Green	Threaded	8.61 mm	0.339 "	-40 C	100 °C	All	Gold	Board Lock Mating Flange	Board to Cable/Wire	Brass	Circular	UL94 V-0	Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	Solder	0.13 "	3.3 mm

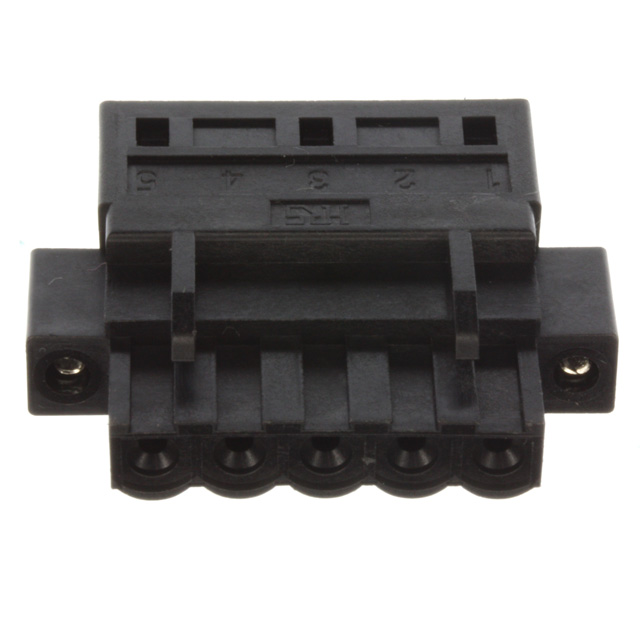

Hirose Electric Co Ltd HR31-5.08P-5SC(71)				Crimp		Contacts Not Included	Black	Female Socket	1	Free Hanging (In-Line)	5.08 mm	0.2 in	5	Plug							-40 C	100 °C								Polybutylene Terephthalate (PBT)
Hirose Electric Co Ltd HR31-5.08R-5PD(76)								Male Pin	1	Through Hole			5	Header	0.2 "	5.08 mm	Green	Threaded	12 mm	0.472 "	-40 C	100 °C	All	Gold	Mating Flange	Board to Cable/Wire	Brass	Circular	UL94 V-0	Polybutylene Terephthalate (PBT)	Shrouded - 4 Wall	Solder	0.169 in	4.3 mm
