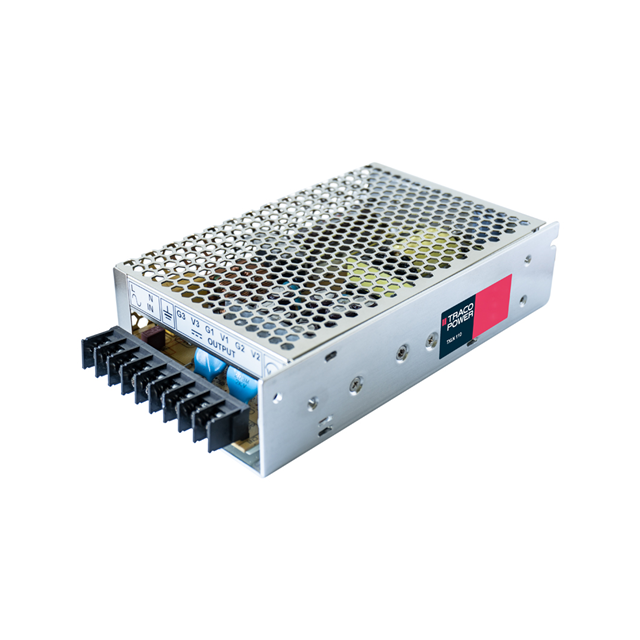

TXLN 110 Series
Manufacturer: Traco Power
Beta
⌘K
SWITCHING POWER SUPPLIES 100W 5V 20A
| Part | Minimum Load Required | Approval Agency | Features | Voltage - Output 1 | Standard Number | Voltage - Input [Min] | Voltage - Input [Max] | Applications | Power (Watts) | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Current - Output 1 | Efficiency | Voltage - Isolation | Number of Outputs | Mounting Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | CB CE cURus | Adjustable Output Universal Input | 5 V | 62368-1 | 88 VAC 125 VDC | 264 VAC 375 VDC | ITE (Commercial) | 100 W | 70 °C | -20 °C | 1.5 in | 6.26 in | 38 mm | 3.74 in | 159 mm | 95 mm | 20 A | 84 % | 3000 V | 1 | Chassis Mount | Enclosed | |
 Traco Power | CB CE cURus | Adjustable Output Universal Input | 12 V | 62368-1 | 88 VAC 125 VDC | 264 VAC 375 VDC | ITE (Commercial) | 110 W | 70 °C | -20 °C | 1.5 in | 6.26 in | 38 mm | 3.74 in | 159 mm | 95 mm | 9.2 A | 85 % | 3000 V | 1 | Chassis Mount | Enclosed | |
Traco Power | CB CE cURus | Adjustable Output Universal Input | 15 V | 62368-1 | 88 VAC 125 VDC | 264 VAC 375 VDC | ITE (Commercial) | 110 W | 70 °C | -20 °C | 1.5 in | 6.26 in | 38 mm | 3.74 in | 159 mm | 95 mm | 7.3 A | 86 % | 3000 V | 1 | Chassis Mount | Enclosed | |
Traco Power | CB CE cURus | Adjustable Output Universal Input | 48 V | 62368-1 | 88 VAC 125 VDC | 264 VAC 375 VDC | ITE (Commercial) | 110 W | 70 °C | -20 °C | 1.5 in | 6.26 in | 38 mm | 3.74 in | 159 mm | 95 mm | 2.3 A | 87 % | 3000 V | 1 | Chassis Mount | Enclosed |
