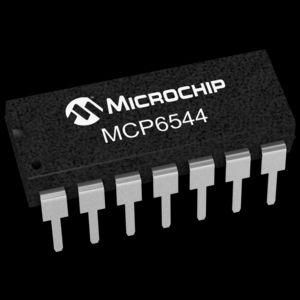

MCP6544 Series

Push-Pull Output Sub-Microamp Comparators

Catalog

Push-Pull Output Sub-Microamp Comparators

Part	Hysteresis	Package / Case [x]	Package / Case [y]	Package / Case	Current - Quiescent (Max) [Max]	Output Type	Number of Elements	CMRR, PSRR (Typ)	Type	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Mounting Type	Voltage - Input Offset (Max) [Max]	Current - Input Bias (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Propagation Delay (Max) [Max]	Package / Case [custom]	Package / Case [custom]	Supplier Device Package
Microchip Technology MCP6544-E/SL	6.5 mV	0.154 in	3.9 mm	14-SOIC	1 çA	CMOS Push-Pull Rail-to-Rail TTL	4	70 dB 80 dB	General Purpose	1.6 V	5.5 V	Surface Mount	7 mV	1 pA	125 °C	-40 °C	8 µs
Microchip Technology MCP6544-E/ST	6.5 mV			14-TSSOP	1 çA	CMOS Push-Pull Rail-to-Rail TTL	4	70 dB 80 dB	General Purpose	1.6 V	5.5 V	Surface Mount	7 mV	1 pA	125 °C	-40 °C	8 µs	0.173 "	4.4 mm	14-TSSOP
Microchip Technology MCP6544-I/P	6.5 mV	0.3 "	7.62 mm	14-DIP	1 çA	CMOS Push-Pull Rail-to-Rail TTL	4	70 dB 80 dB	General Purpose	1.6 V	5.5 V	Through Hole	7 mV	1 pA	85 °C	-40 °C	8 µs
Microchip Technology MCP6544-E/P	6.5 mV	0.3 "	7.62 mm	14-DIP	1 çA	CMOS Push-Pull Rail-to-Rail TTL	4	70 dB 80 dB	General Purpose	1.6 V	5.5 V	Through Hole	7 mV	1 pA	125 °C	-40 °C	8 µs
Microchip Technology MCP6544-I/SL	6.5 mV	0.154 in	3.9 mm	14-SOIC	1 çA	CMOS Push-Pull Rail-to-Rail TTL	4	70 dB 80 dB	General Purpose	1.6 V	5.5 V	Surface Mount	7 mV	1 pA	85 °C	-40 °C	8 µs
Microchip Technology MCP6544T-I/ST	6.5 mV			14-TSSOP	1 çA	CMOS Push-Pull Rail-to-Rail TTL	4	70 dB 80 dB	General Purpose	1.6 V	5.5 V	Surface Mount	7 mV	1 pA	85 °C	-40 °C	8 µs	0.173 "	4.4 mm	14-TSSOP

Catalog

Push-Pull Output Sub-Microamp Comparators

Key Features

- Quad, Push-Pull Outputs

- 4us Propagation Delay

- Low Operating Voltage, 1.6V to 5.5V

- Low Operating Current, 600nA (typical)

- Rail-to-Rail Input/Output

- AEC-Q100 Grade 1

Description

The MCP6544 is a Push-pull, quad comparator. This single-ended device operates from 1.6V to 5.5V, with typical quiescent current of 600 nA and a maximum of 1 microamp. This device is offered in the 16 lead PDIP, SOIC and 14 lead TSSOP package. AEC-Q100 Grade 1 qualification is available for this device
