MCP4706 Series

8-Bit Single Output DAC w/EEPROM and I2C™

Catalog

8-Bit Single Output DAC w/EEPROM and I2C™

Part	Package / Case	Architecture	Output Type	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Settling Time	Number of Bits	Data Interface	Reference Type	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Mounting Type	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	INL/DNL (LSB)
Microchip Technology MCP4706A1T-E/MAY	6-VDFN Exposed Pad	R-2R	Voltage - Buffered	2.7 V	5.5 V	6 µs	8	I2C	External Supply	125 °C	-40 °C	6-DFN (2x2)	Surface Mount	5.5 V	2.7 V	0.0125 LSB 0.125 LSB
Microchip Technology MCP4706A0T-E/CH	SOT-23-6	R-2R	Voltage - Buffered	2.7 V	5.5 V	6 µs	8	I2C	External Supply	125 °C	-40 °C	SOT-23-6	Surface Mount	5.5 V	2.7 V	0.0125 LSB 0.125 LSB
Microchip Technology MCP4706A2T-E/CH	SOT-23-6	R-2R	Voltage - Buffered	2.7 V	5.5 V	6 µs	8	I2C	External Supply	125 °C	-40 °C	SOT-23-6	Surface Mount	5.5 V	2.7 V	0.0125 LSB 0.125 LSB
Microchip Technology MCP4706A0T-E/MAY	6-VDFN Exposed Pad	R-2R	Voltage - Buffered	2.7 V	5.5 V	6 µs	8	I2C	External Supply	125 °C	-40 °C	6-DFN (2x2)	Surface Mount	5.5 V	2.7 V	0.0125 LSB 0.125 LSB

Catalog

8-Bit Single Output DAC w/EEPROM and I2C™

Key Features

• * 8-bit: MCP4706

• * Rail-to-Rail Output

• * Fast Settling Time of 6 µs (typical)

• * VDD

• * VREF

• * Unity (1x)

• * 2x, only when VREF is used as voltage source

• * Auto Recall of Saved DAC register setting

• * Auto Recall of Saved Device Configuration (Voltage Reference, Gain, Power Down)

• * Disconnects output buffer

• * Selection of VOUT pull-down resistors

• * Normal Operation: 210 µA typ.

• * Power Down Operation: 60 nA typ. (PD1:PD0 = "11")

• * Single-Supply Operation: 2.7V to 5.5V

• * Eight Available Addresses

• * Standard (100 kbps), Fast (400 kbps), and High-Speed (3.4 Mbps) Modes

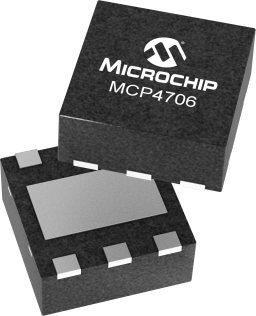

• * Small 6-lead SOT-23 and DFN (2x2) Packages

• * Extended Temperature Range: -40°C to +125°C

• * AEC-Q100 Grade 1 qualified

Description

MCP4706 is a single channel, 8-bit, voltage output Digital-to-Analog Converter with integrated EEPROM and an I2C Compatible Serial Interface. The MCP47X6 DAC family offers integrated non-volatile memory (EEPROM) which allows DAC register and configuration bit values to be saved at power off. The VREF pin or device VDD can be selected as the DAC’s reference voltage. Power-Down modes enable system current reduction when the DAC output voltage is not required. These devices are available in small 6-pin SOT-23 and DFN 2x2 mm packages.
