161 Series

Catalog

POWER TRANSFORMERS TRANSFORMER, LOW VOLT PCB MOUNT, 115V PRIMARY, 0.5VA, 10V C.T. @ 50MA SEC

Part	Power - Max [Max]	Type	Primary Winding(s)	Secondary Winding(s)	Termination Style	Voltage - Isolation	Weight	Weight	Mounting Type	Height - Seated (Max) [Max] [z]	Voltage - Secondary (Full Load)	Voltage - Primary	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max)	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Current - Output (Max) [custom]	Current - Output (Max) [custom]	Height - Seated (Max) [Max]	Weight [custom]	Weight [custom]

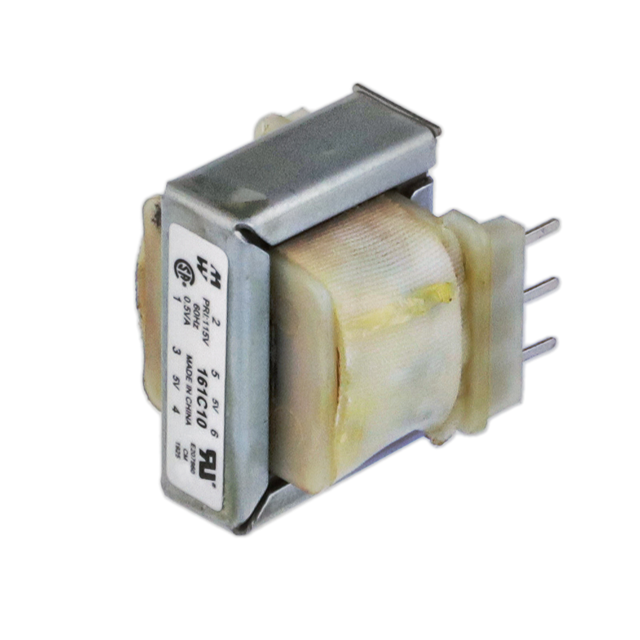

Hammond Manufacturing 161C10	0.5 VA	Laminated Core	Single	Multiple Taps Single	PC Pin	2000 Vrms	0.08 lb	36.29 g	Through Hole	21.34 mm	5 V 10 V	115 V	23.88 mm	1 in	50 mA 100 mA
Hammond Manufacturing 161G20	10 VA	Laminated Core	Single	Multiple Taps Single	PC Pin	2000 Vrms	0.7 lb	317.51 g	Through Hole	42.93 mm		115 V	36.58 mm	49.28 mm	1 A 500 mA	10 V	20 V
Hammond Manufacturing 161D12	1 VA	Laminated Core	Single	Multiple Taps Single	PC Pin	2000 Vrms	0.13 lbs	58.97 g	Through Hole	21.08 mm	6.3 V 12.6 V	115 V	35.05 mm	1 in	70 mA 140 mA
Hammond Manufacturing 161FA12	1.2 VA	Laminated Core	Single	Multiple Taps Single	PC Pin	2000 Vrms	0.19 lb	86.18 g	Through Hole	30.99 mm	6.3 V 12.6 V	115 V	30.23 mm	35.05 mm				100 mA	200 mA
Hammond Manufacturing 161H28	24 VA	Laminated Core	Single	Multiple Taps Single	PC Pin	2000 Vrms			Through Hole			115 V	2.25 in	41.4 mm		14 V	28 V	800 mA	1.6 A	35.05 mm	371.95 g	0.82 lb
Hammond Manufacturing 161D28	1 VA	Laminated Core	Single	Multiple Taps Single	PC Pin	2000 Vrms	0.13 lbs	58.97 g	Through Hole	21.08 mm		115 V	35.05 mm	1 in		14 V	28 V	30 mA	60 mA
