Ferrite Beads 60ohms 100MHz 6A Monolithic 1806 SMD
Ferrite Beads 60ohms 100MHz 6A Monolithic 1806 SMD
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | DC Resistance (DCR) (Max) | Size / Dimension [y] | Mounting Type | Impedance @ Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Height (Max) [z] | Height (Max) [z] | Package / Case | Package / Case | Filter Type | Number of Lines | Current Rating (Max) [Max] | DC Resistance (DCR) (Max) [Max] | Height (Max) [Max] [z] | Height (Max) [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Laird Technologies EMI | 0.031 in 0.032 in | 0.063 " | 1.6 mm | 0.8 mm | 40 mOhm | 0.8 mm | Surface Mount | 30 Ohms | 125 °C | -40 C | 0.031 in | 0.8 mm | 1608 Metric | 0603 | Power Signal Line | 1 | 3 A | |||

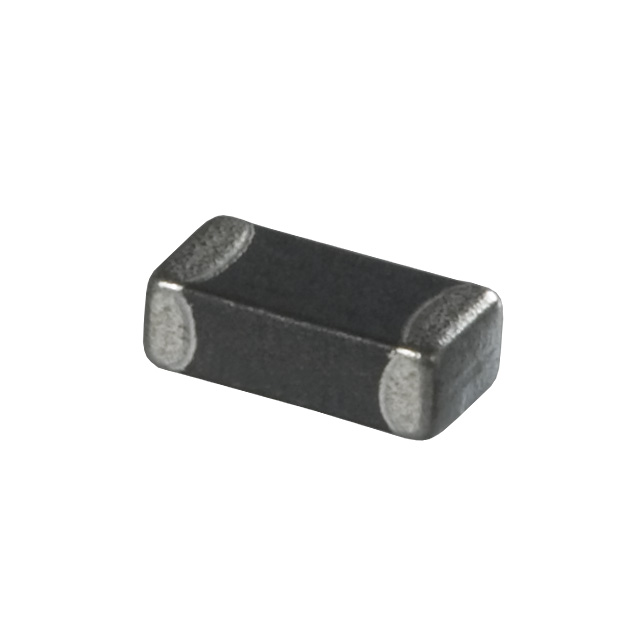

 Laird Technologies EMI | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | Surface Mount | 100 Ohms | 125 °C | -40 C | 1.1 mm | 1206 (3216 Metric) | Power Signal Line | 1 | 3 A | 35 mOhm | 0.043 in | |||||
 Laird Technologies EMI | 0.031 in | 0.063 " | 1.6 mm | 0.8 mm | Surface Mount | 70 Ohms | 125 °C | -40 C | 0.031 in | 0.8 mm | 1608 Metric | 0603 | Power Signal Line | 1 | 3.5 A | 20 mOhm | ||||
Laird Technologies EMI | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | Surface Mount | 50 Ohms | 125 °C | -40 C | 1.1 mm | 1206 (3216 Metric) | Power Signal Line | 1 | 6 A | 10 mOhm | 0.043 in | |||||
Laird Technologies EMI | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | Surface Mount | 600 Ohms | 125 °C | -40 C | 1.1 mm | 1206 (3216 Metric) | Power Signal Line | 1 | 3 A | 60 mOhm | 0.043 in | |||||

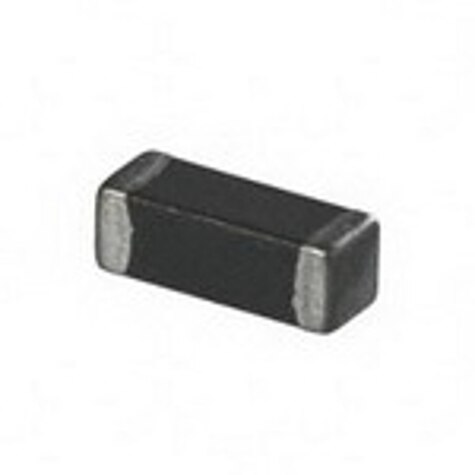

 Laird Technologies EMI | 0.063 " | 0.177 in | 4.5 mm | 1.6 mm | Surface Mount | 60 Ohms | 125 °C | -40 C | 1.6 mm | 1806 (4516 Metric) | Power Signal Line | 1 | 6 A | 10 mOhm | 0.063 in |
