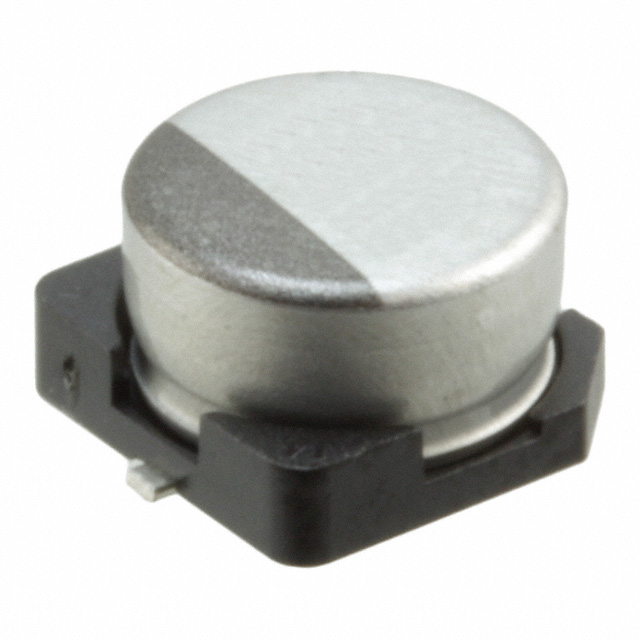

UZG Series
Manufacturer: Nichicon
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - SMD 16VOLTS 47UF AEC-Q200
| Part | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lifetime @ Temp. | Applications | Mounting Type | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Ripple Current @ Low Frequency | Tolerance | Ripple Current @ High Frequency | Capacitance | Package / Case | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | 0.156 in | 3.95 mm | 1000 Hrs | General Purpose | Surface Mount | 16 V | -40 C | 105 ░C | 44 mA | 20 % | 66 mA | 47 µF | Radial Can - SMD | 0.26 in | 6.6 mm | 6.6 mm | 0.26 in | 0.248 " | 6.3 mm | AEC-Q200 |
