LGN Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 82UF 500V 20%

Part	Polarization	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Tolerance	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Applications	Ripple Current @ High Frequency	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Package / Case	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Size / Dimension

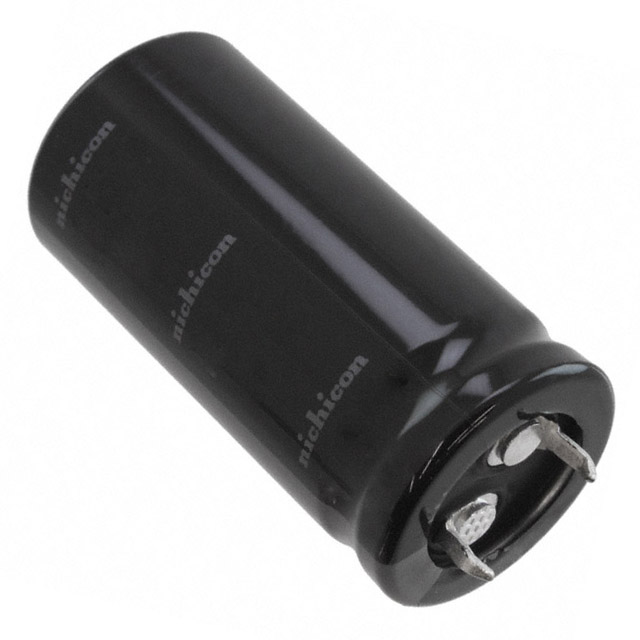

Nichicon LGN2H820MELZ35	Polar	500 V	105 ░C	-25 °C	0.082 mF	0.866 "	22 mm	Through Hole	20 %	590 mA	0.394 in	10 mm	General Purpose	843.7 mA	37 mm	1.457 in	Radial Can - Snap-In	3000 Hrs

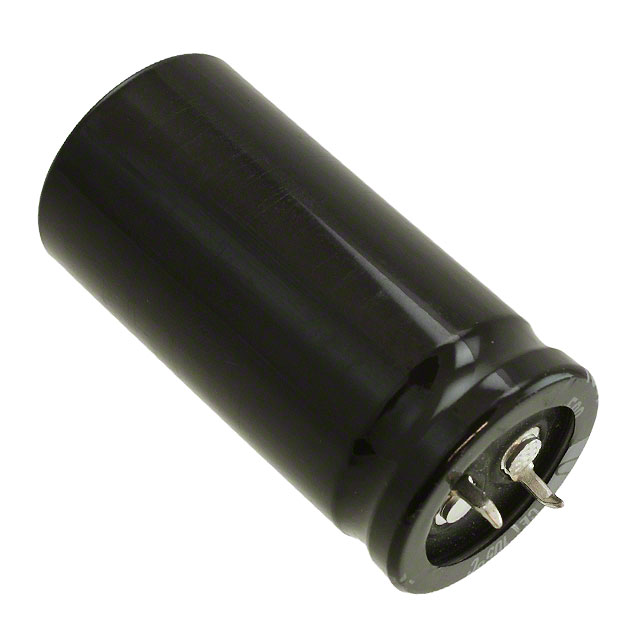

Nichicon LGN2Z152MELA50	Polar	180 VDC	105 ░C	-40 C	1.5 mF	0.984 "	25 mm	Through Hole	20 %	2.5 A	0.394 in	10 mm	General Purpose	3.75 A			Radial Can - Snap-In	3000 Hrs	2.047 in	52 mm
Nichicon LGNW6181MELY45	Polar	420 V	105 ░C	-25 °C	180 µF	0.787 "	20 mm	Through Hole	20 %	910 mA	0.394 in	10 mm	General Purpose	1.3013 A			Radial Can - Snap-In	3000 Hrs	1.85 in	47 mm

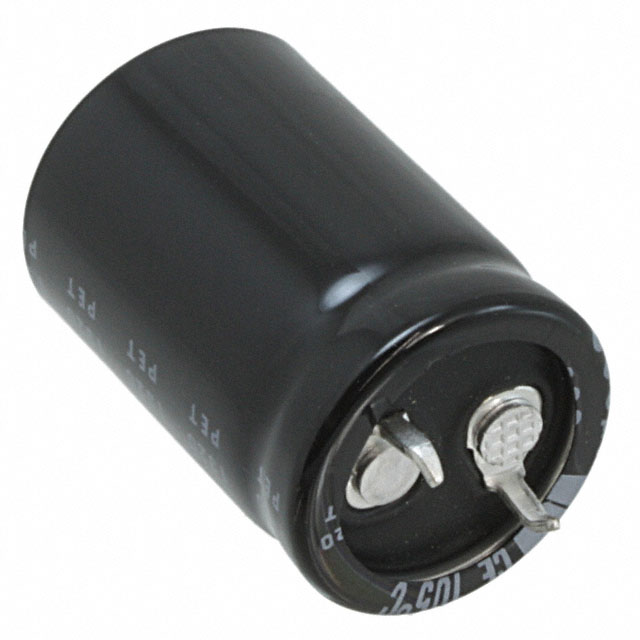

Nichicon LGN2C471MELY30	Polar	160 V	105 ░C	-40 C	470 µF	0.787 "	20 mm	Through Hole	20 %	1.4 A	0.394 in	10 mm	General Purpose	2.1 A		1.26 in	Radial Can - Snap-In	3000 Hrs			32 mm
Nichicon LGN2D391MELY30	Polar	200 VDC	105 ░C	-40 C	390 µF	0.787 "	20 mm	Through Hole	20 %	1.34 A	0.394 in	10 mm	General Purpose	2.01 A		1.26 in	Radial Can - Snap-In	3000 Hrs			32 mm

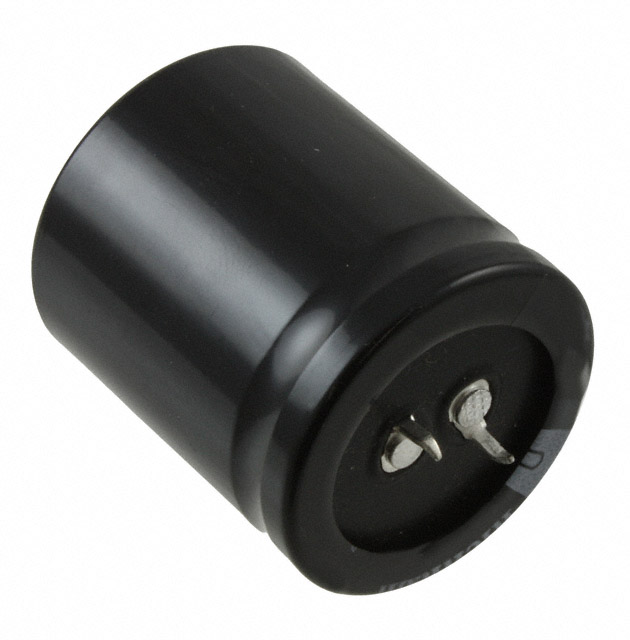

Nichicon LGN2V821MELC45	Polar	350 V	105 ░C	-25 °C	820 µF	1.378 "	35 mm	Through Hole	20 %	1.9 A	0.394 in	10 mm	General Purpose	2.717 A			Radial Can - Snap-In	3000 Hrs	1.85 in	47 mm
Nichicon LGN2X151MELC40	Polar	600 V	105 ░C	-25 °C	150 µF	1.378 "	35 mm	Through Hole	20 %	830 mA	0.394 in	10 mm	General Purpose			1.654 in	Radial Can - Snap-In	2000 Hrs			42 mm
Nichicon LGN2Z222MELB50	Polar	180 VDC	105 ░C	-40 C	2200 µF	1.181 "		Through Hole	20 %	2.9 A	0.394 in	10 mm	General Purpose	4.35 A			Radial Can - Snap-In	3000 Hrs	2.047 in	52 mm		30 mm
Nichicon LGN2G221MELZ45	Polar	400 V	105 ░C	-25 °C	220 µF	0.866 "	22 mm	Through Hole	20 %	1.1 A	0.394 in	10 mm	General Purpose	1.573 A			Radial Can - Snap-In	3000 Hrs	1.85 in	47 mm

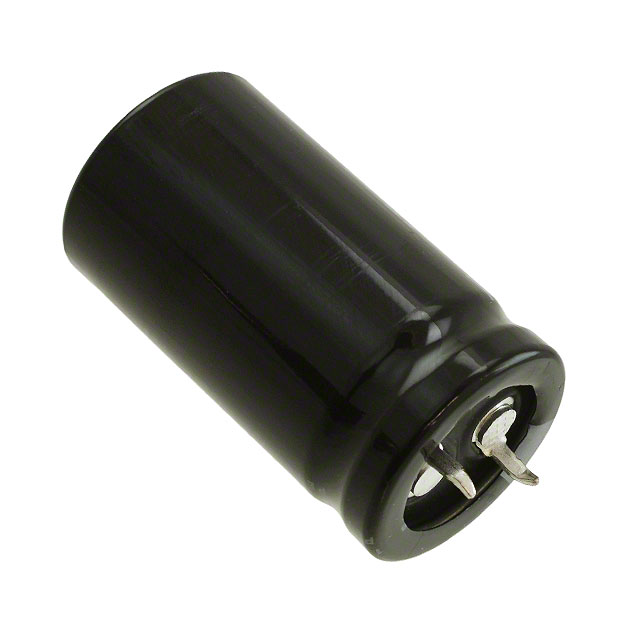

Nichicon LGN2E471MELZ40	Polar	250 V	105 ░C	-40 C	470 µF	0.866 "	22 mm	Through Hole	20 %	1.4 A	0.394 in	10 mm	General Purpose	2.1 A		1.654 in	Radial Can - Snap-In	3000 Hrs			42 mm
