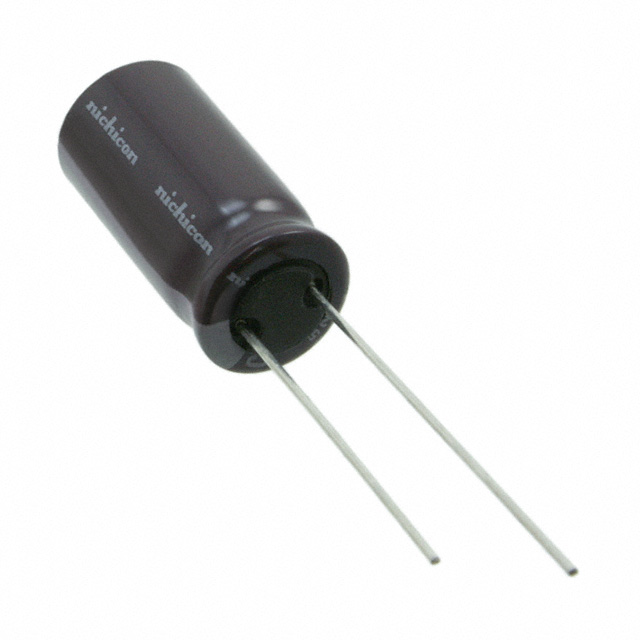

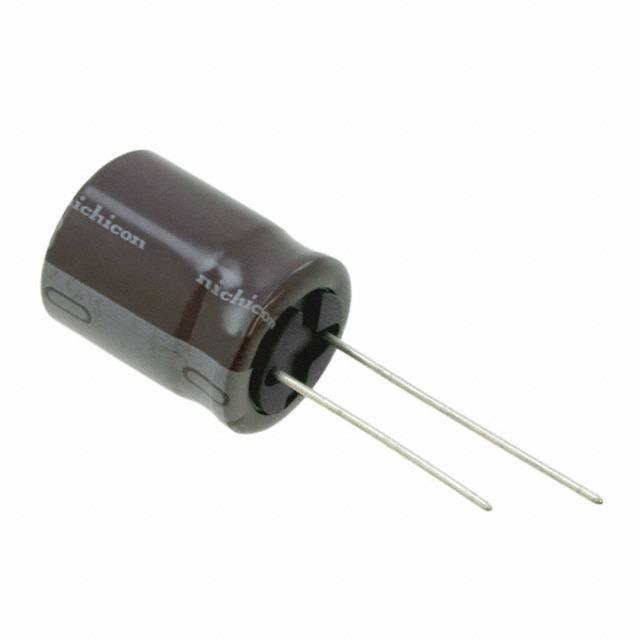

UCS Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Lead Spacing	Lead Spacing	Voltage - Rated	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Ripple Current @ High Frequency	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Lifetime @ Temp.	Applications	Capacitance	Polarization	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [z]
Nichicon UCS2E100MPD1AA	0.846 "	21.5 mm	Through Hole	0.197 "	5 mm	250 V	20 %	0.394 in	10 mm	350 mA	Can Radial	-40 C	105 ░C	175 mA	8000 Hrs	General Purpose	10 µF	Polar
Nichicon UCS2D220MPD1TD	0.846 "	21.5 mm	Through Hole	0.197 "	5 mm	200 VDC	20 %	0.394 in	10 mm	500 mA	Can Radial	-40 C	105 ░C	250 mA	8000 Hrs	General Purpose	22 µF	Polar
Nichicon UCS2V330MHD1TN	0.846 "	21.5 mm	Through Hole	0.295 in	7.5 mm	350 V	20 %	0.63 in	16 mm	900 mA	Can Radial	-40 C	105 ░C	450 mA	10000 Hrs	General Purpose	33 ÁF	Polar
Nichicon UCS2V101MHD1CM			Through Hole	0.295 in	7.5 mm	350 V	20 %	0.709 in	18 mm	1.575 A	Can Radial	-40 C	105 ░C	787.5 mA	10000 Hrs	General Purpose	100 µF	Polar	26.5 mm	1.043 in
Nichicon UCS2W6R8MPD	0.846 "	21.5 mm	Through Hole	0.197 "	5 mm	450 V	20 %	0.394 in	10 mm	280 mA	Can Radial	-25 °C	105 ░C	140 mA	8000 Hrs	General Purpose	6.8 µF	Polar
Nichicon UCS2C470MPD1TD	0.846 "	21.5 mm	Through Hole	0.197 "	5 mm	160 V	20 %	0.394 in	10 mm	750 mA	Can Radial	-40 C	105 ░C	375 mA	8000 Hrs	General Purpose	47 µF	Polar

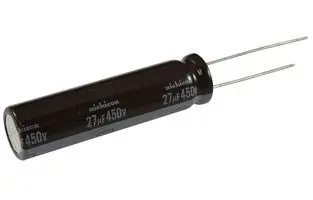

Nichicon UCS2W270MND9			Through Hole	0.197 "	5 mm	450 V	20 %	0.394 in	10 mm	580 mA	Can Radial	-25 °C	105 ░C	290 mA	10000 Hrs	General Purpose	27 µF	Polar	42 mm	1.654 in
Nichicon UCS2V330MHD	0.846 "	21.5 mm	Through Hole	0.295 in	7.5 mm	350 V	20 %	0.63 in	16 mm	900 mA	Can Radial	-40 C	105 ░C	450 mA	10000 Hrs	General Purpose	33 ÁF	Polar
Nichicon UCS2E221MHD			Through Hole	0.295 in	7.5 mm	250 V	20 %	0.709 in	18 mm	3.13 A	Can Radial	-40 C	105 ░C		10000 Hrs	General Purpose	220 µF	Polar	1.299 in		33 mm
Nichicon UCS2D271MNY9	2.047 in	52 mm	Through Hole	0.197 "	5 mm	200 VDC	20 %	0.492 in	12.5 mm	2.53 A	Can Radial	-40 C	105 ░C	1.265 A	10000 Hrs	General Purpose	270 µF	Polar
