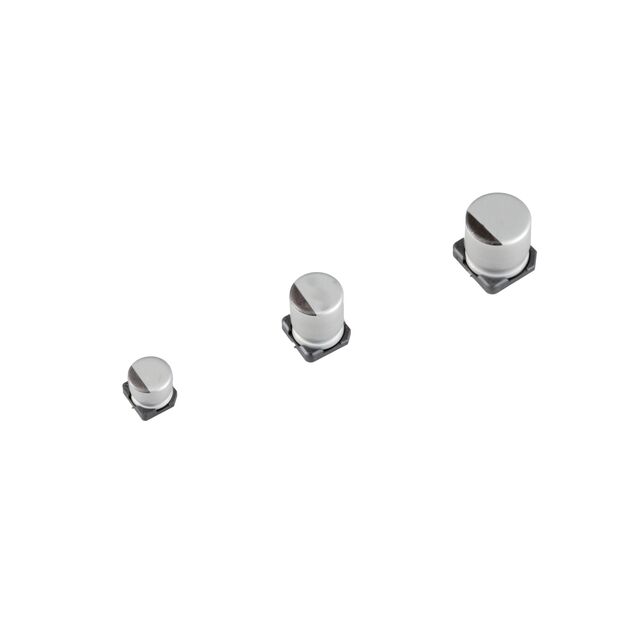

GXC Series
Manufacturer: Nichicon
Beta
⌘K
ALUMINUM ORGANIC POLYMER CAPACITORS 63VDC 33UF 20% AEC-Q200 ANTI-VIBE
| Part | Type | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Features | Applications | Voltage - Rated | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Package / Case | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Size / Dimension [diameter] | Size / Dimension [diameter] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Capacitance | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | Hybrid | 8.3 mm | 8.3 mm | 0.327 in | 0.327 in | Anti-Vibration | Automotive | 63 V | AEC-Q200 | -55 C | 135 °C | 20 % | 27 mOhms | 4000 Hrs | Radial Can - SMD | 495 mA | 3.3 A | 0.315 in | 8 mm | 0.425 in | 10.8 mm | 33 ÁF | Surface Mount |
Nichicon | Hybrid | 8.3 mm | 8.3 mm | 0.327 in | 0.327 in | Anti-Vibration | Automotive | 35 V | AEC-Q200 | -55 C | 135 °C | 20 % | 4000 Hrs | Radial Can - SMD | 600 mA | 4 A | 0.315 in | 8 mm | 0.425 in | 10.8 mm | 150 µF | Surface Mount |
