TEC-40 Series

Catalog

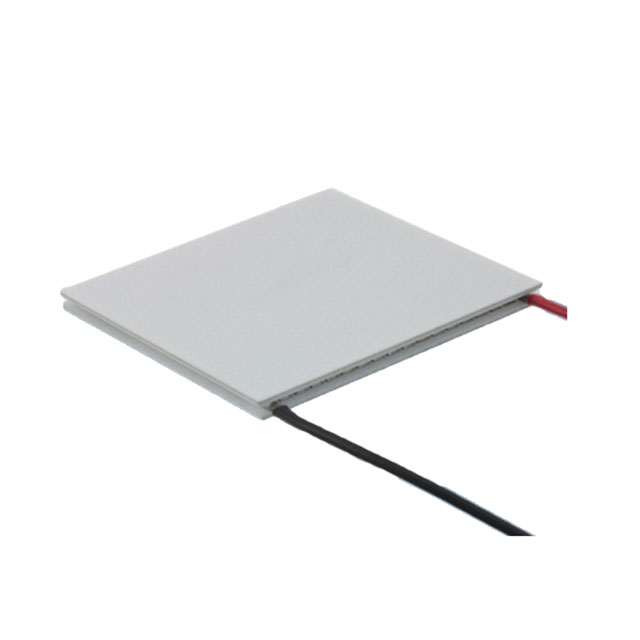

THERMOELECTRIC PELTIER COOLER MODULE, SINGLE STAGE, 51.4 W, 6 A, 15.4 VDC, 1.57" X 1.57" X 0.14"

Part	Delta Tmax @ Th	Voltage - Max [Max]	Operating Temperature	Features	Size / Dimension [x]	Size / Dimension [y]	Height [z]	Current - Max [Max]	Qmax @ Th	Resistance	Number of Stages	Type
Wakefield Thermal Solutions TEC-40-36-127	27 °C 68 °C	15.4 V	194 °F	Lead Wires Sealed - Silicone RTV	40 mm	40 mm	3.6 mm	6 A	51.4 W	2.17 Ohms	1
Wakefield Thermal Solutions TEC-40-33-127	27 °C 68 °C	15.4 V	194 °F	Lead Wires Sealed - Silicone RTV	40 mm	40 mm	3.3 mm	8.5 A	72 W	1.66 Ohms	1
Wakefield Thermal Solutions TEC-40-33-127	27 °C 68 °C	15.4 V	194 °F	Lead Wires Sealed - Silicone RTV	40 mm	40 mm	3.3 mm	8.5 A	72 W	1.66 Ohms	1	TEC (Thermoelectric Cooler)
Wakefield Thermal Solutions TEC-40-39-127	27 °C 68 °C	15.4 V	194 °F	Lead Wires Sealed - Silicone RTV	40 mm	40 mm	3.91 mm	4 A	33.4 W	3.22 Ohms	1	TEC (Thermoelectric Cooler)
Wakefield Thermal Solutions TEC-40-39-127	27 °C 68 °C	15.4 V	194 °F	Lead Wires Sealed - Silicone RTV	40 mm	40 mm	3.91 mm	4 A	33.4 W	3.22 Ohms	1
Wakefield Thermal Solutions TEC-40-36-127	27 °C 68 °C	15.4 V	194 °F	Lead Wires Sealed - Silicone RTV	40 mm	40 mm	3.6 mm	6 A	51.4 W	2.17 Ohms	1	TEC (Thermoelectric Cooler)
