UKA Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 6.3VOLTS 100UF AEC-Q200

Part	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Package / Case	Mounting Type	Lead Spacing	Lead Spacing	Capacitance	Lifetime @ Temp.	Polarization	Applications	Ripple Current @ Low Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

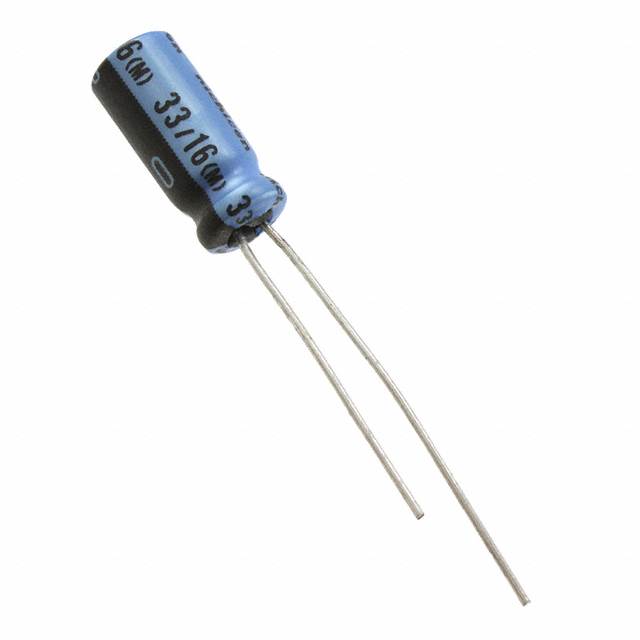

Nichicon UKA0J101MDD	6.3 VDC	-55 C	105 ░C	142.5 mA	0.197 in	5 mm	20 %	Can Radial	Through Hole	2 mm	0.079 in	100 µF	2000 Hrs	Polar	Audio	95 mA	0.492 in	12.5 mm
Nichicon UKA0J470MDD1TD	6.3 VDC	-55 C	105 ░C	130 mA	0.197 in	5 mm	20 %	Can Radial	Through Hole	2.5 mm	0.098 in	47 µF	2000 Hrs	Polar	Audio	65 mA	0.492 in	12.5 mm
Nichicon UKA1H330MDD	50 VDC	-55 C	105 ░C	180 mA	0.197 in	5 mm	20 %	Can Radial	Through Hole	2 mm	0.079 in	33 ÁF	2000 Hrs	Polar	Audio	90 mA	0.492 in	12.5 mm
Nichicon UKA1V470MDD1TD	35 V	-55 C	105 ░C	186 mA	0.197 in	5 mm	20 %	Can Radial	Through Hole	2.5 mm	0.098 in	47 µF	2000 Hrs	Polar	Audio	93 mA	0.492 in	12.5 mm

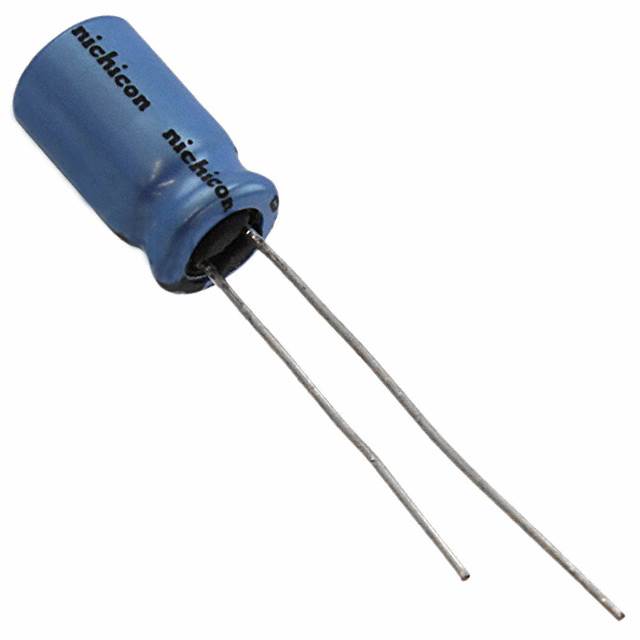

Nichicon UKA1E101MED1TD	25 VDC	-55 C	105 ░C	210 mA	0.248 "	6.3 mm	20 %	Can Radial	Through Hole	2.5 mm	0.098 in	100 µF	2000 Hrs	Polar	Audio	140 mA	0.492 in	12.5 mm
Nichicon UKA0J332MHD	6.3 VDC	-55 C	105 ░C	1.0465 A	0.492 in	12.5 mm	20 %	Can Radial	Through Hole	5 mm	0.197 "	3.3 mF	2000 Hrs	Polar	Audio	910 mA			0.866 in	22 mm	AEC-Q200
Nichicon UKA1A220MDD1TD	10 V	-55 C	105 ░C		0.197 in	5 mm	20 %	Can Radial	Through Hole	2.5 mm	0.098 in	22 µF	2000 Hrs	Polar	Audio	45 mA	0.492 in	12.5 mm
Nichicon UKA1V221MPD1TD	35 V	-55 C	105 ░C	390 mA	0.315 in	8 mm	20 %	Can Radial	Through Hole	3.5 mm	0.138 in	220 µF	2000 Hrs	Polar	Audio	260 mA						0.512 "	13 mm
Nichicon UKA1E101MED	25 VDC	-55 C	105 ░C	210 mA	0.248 "	6.3 mm	20 %	Can Radial	Through Hole	2.5 mm	0.098 in	100 µF	2000 Hrs	Polar	Audio	140 mA	0.492 in	12.5 mm

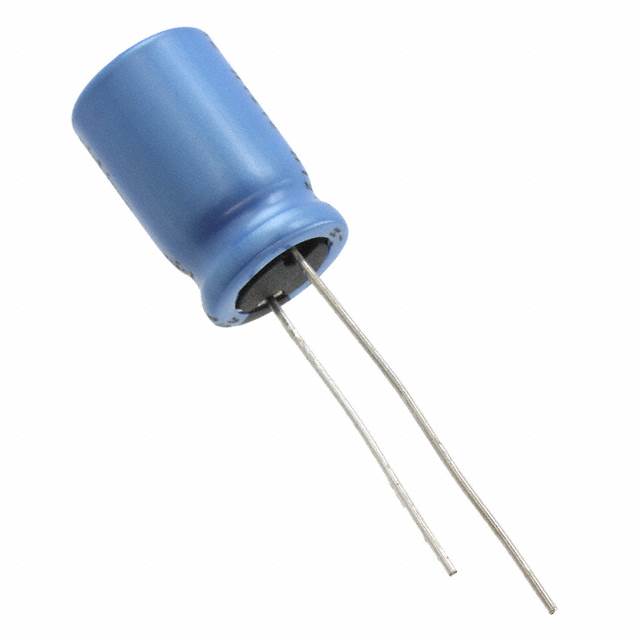

Nichicon UKA1H331MPD	50 VDC	-55 C	105 ░C		0.394 in	10 mm	20 %	Can Radial	Through Hole	5 mm	0.197 "	330 µF	2000 Hrs	Polar	Audio	410 mA					AEC-Q200		0.689 in	17.5 mm
