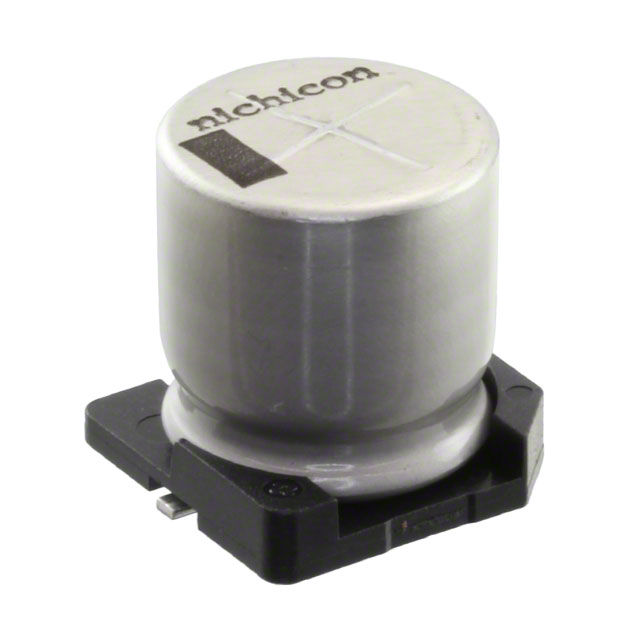

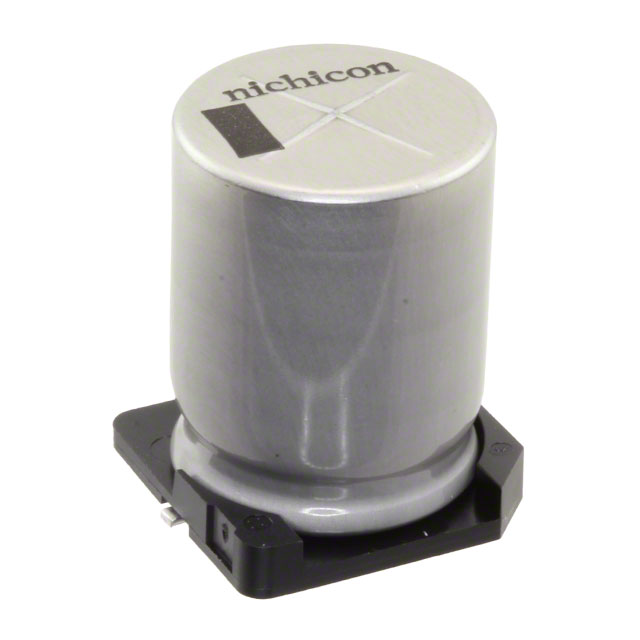

UCZ Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD 25V 1200UF 20% AEC-Q200

Part	Ripple Current @ High Frequency	Tolerance	Package / Case	Mounting Type	ESR (Equivalent Series Resistance)	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Lifetime @ Temp.	Ratings	Ripple Current @ Low Frequency	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Polarization	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon UCZ1E122MNQ1MS	1.7 A	20 %	Radial Can - SMD	Surface Mount	47 mOhm	1.2 mF	17.5 mm	0.689 in	Automotive	3500 Hrs	AEC-Q200	850 mA	25 VDC	125 °C	-40 C	0.63 in	16 mm	17.1 mm	0.673 in	17.1 mm	0.673 in	Polar
Nichicon UCZ1E272MNQ1MS	3000 mA	20 %	Radial Can - SMD	Surface Mount	34 mOhm	2.7 mF			Automotive	4000 Hrs	AEC-Q200	1.5 A	25 VDC	125 °C	-40 C	0.63 in	16 mm	17.1 mm	0.673 in	17.1 mm	0.673 in	Polar	0.886 in	22.5 mm
Nichicon UCZ2A151MNS1MS	1 A	20 %	Radial Can - SMD	Surface Mount	190 mOhm	150 µF	17.5 mm	0.689 in	General Purpose	3500 Hrs	AEC-Q200	500 mA	100 V	125 °C	-40 C	0.63 in	16 mm	17.1 mm	0.673 in	17.1 mm	0.673 in	Polar
Nichicon UCZ2A221MNJ1MS	1.6 A	20 %	Radial Can - SMD	Surface Mount	120 mOhm	220 µF			General Purpose	4000 Hrs	AEC-Q200	800 mA	100 V	125 °C	-40 C	0.63 in	16 mm	17.1 mm	0.673 in	17.1 mm	0.673 in	Polar	0.886 in	22.5 mm
Nichicon UCZ1K330MCL6GS		20 %	Radial Can - SMD	Surface Mount	750 mOhm	33 ÁF			General Purpose	3000 Hrs	AEC-Q200	35 mA	80 V	125 °C	-40 C	0.394 in	10 mm	10.3 mm	0.406 "	10.3 mm	0.406 in	Polar	0.413 "	10.5 mm
Nichicon UCZ1V821MNJ1MS	2.4 A	20 %	Radial Can - SMD	Surface Mount	47 mOhm	820 µF	17.5 mm	0.689 in	Automotive	3500 Hrs	AEC-Q200	1.2 A	35 V	125 °C	-40 C	0.63 in	16 mm	17.1 mm	0.673 in	17.1 mm	0.673 in	Polar
Nichicon UCZ1V561MNS1MS	1.7 A	20 %	Radial Can - SMD	Surface Mount	60 mOhm	560 µF			General Purpose	3000 Hrs	AEC-Q200	850 mA	35 V	125 °C	-40 C	0.492 in	12.5 mm	13.6 mm	0.535 in	13.6 mm	0.535 in	Polar	0.571 "	14.5 mm
Nichicon UCZ1V162MNJ1MS	3000 mA	20 %	Radial Can - SMD	Surface Mount	34 mOhm	1.6 mF			Automotive	4000 Hrs	AEC-Q200	1.5 A	35 V	125 °C	-40 C	0.63 in	16 mm	17.1 mm	0.673 in	17.1 mm	0.673 in	Polar	0.886 in	22.5 mm
Nichicon UCZ1V471MNS1MS	1.7 A	20 %	Radial Can - SMD	Surface Mount	60 mOhm	470 µF			General Purpose	3000 Hrs	AEC-Q200	850 mA	35 V	125 °C	-40 C	0.492 in	12.5 mm	13.6 mm	0.535 in	13.6 mm	0.535 in	Polar	0.571 "	14.5 mm
Nichicon UCZ1V471MNQ1MS	1.7 A	20 %	Radial Can - SMD	Surface Mount	60 mOhm	470 µF			General Purpose	3000 Hrs		850 mA	35 V	125 °C	-40 C	0.492 in	12.5 mm	13.6 mm	0.535 in	13.6 mm	0.535 in	Polar	0.571 "	14.5 mm
