164 Series

Catalog

POWER TRANSFORMERS TRANSFORMER, LOW VOLT PCB MOUNT, LOW PROFILE, 115V, 36VA, 36V C.T. @ 1A

Part	Secondary Winding(s)	Termination Style	Mounting Type	Primary Winding(s)	Type	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Power - Max [Max]	Height - Seated (Max) [Max]	Voltage - Isolation	Voltage - Primary	Current - Output (Max)	Voltage - Secondary (Full Load)	Height - Seated (Max) [Max] [z]	Weight [custom]	Weight [custom]	Current - Output (Max) [custom]	Current - Output (Max) [custom]
Hammond Manufacturing 164J36	Dual	PC Pin	Through Hole	Single	Laminated Core	18 V	36 V	55.55 mm	66.68 mm	1.1 lbs	499 g	36 VA	39.7 mm	2500 Vrms	115 V	1 A 2 A

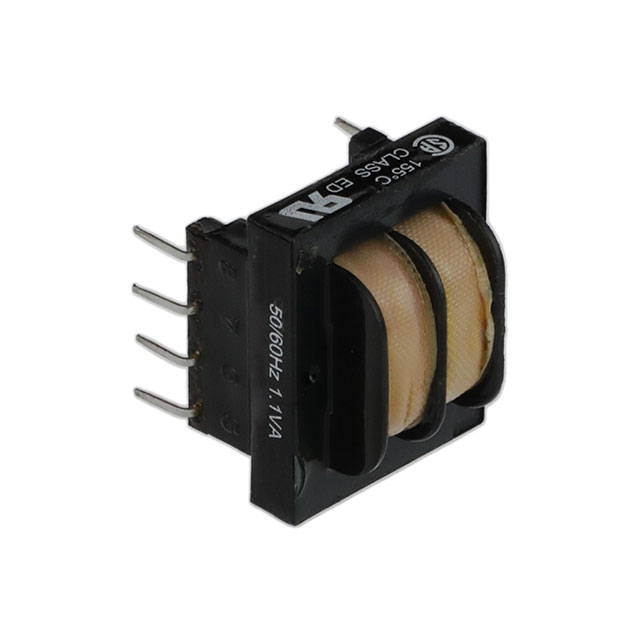

Hammond Manufacturing 164D12	Dual	PC Pin	Through Hole	Single	Laminated Core			28.56 mm	34.93 mm	0.17 lb	77.11 g	1.1 VA		2500 Vrms	115 V	90 mA 180 mA	6.3 V 12.6 V	33.32 mm
Hammond Manufacturing 164E48	Dual	PC Pin	Through Hole	Single	Laminated Core			28.56 mm	34.93 mm			2.4 VA		2500 Vrms	115 V	50 mA 100 mA	24 V 48 V	30.18 mm	113.4 g	0.25 lbs
Hammond Manufacturing 164E24	Dual	PC Pin	Through Hole	Single	Laminated Core	12 V	24 V	28.56 mm	34.93 mm			2.4 VA		2500 Vrms	115 V			30.18 mm	113.4 g	0.25 lbs	100 mA	200 mA
Hammond Manufacturing 164E12	Dual	PC Pin	Through Hole	Single	Laminated Core			28.56 mm	34.93 mm			2.4 VA		2500 Vrms	115 V	200 mA 400 mA	6.3 V 12.6 V	30.18 mm	113.4 g	0.25 lbs
Hammond Manufacturing 164H20	Dual	PC Pin	Through Hole	Single	Laminated Core	10 V	20 V	47.63 mm	2.25 "	0.8 lb	362.87 g	20 VA		2500 Vrms	115 V	1 A 2 A		36.52 mm
