IPA80R Series

Manufacturer: INFINEON

Catalog

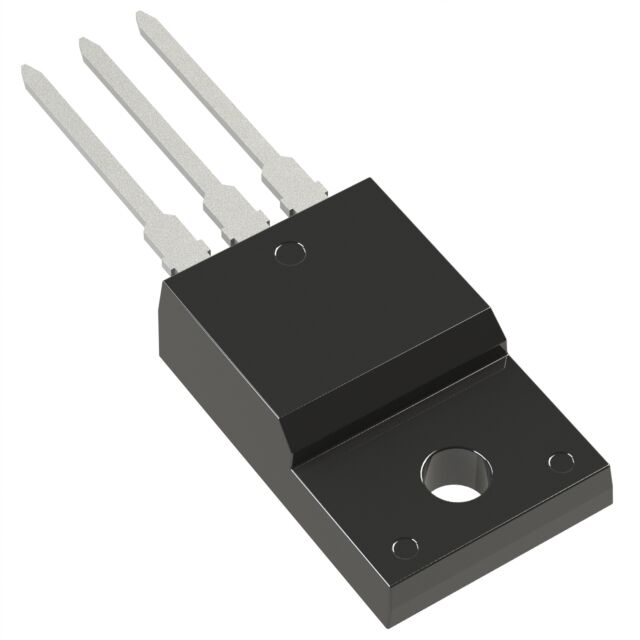

MOSFET N-CH 800V 3.6A TO220

Part	Vgs (Max)	Power Dissipation (Max)	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Drive Voltage (Max Rds On, Min Rds On)	Rds On (Max) @ Id, Vgs	Gate Charge (Qg) (Max) @ Vgs	Package / Case	Input Capacitance (Ciss) (Max) @ Vds	FET Type	Mounting Type	Supplier Device Package	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds [Max]
INFINEON IPA80R1K0CEXKSA1	20 V	32 W	800 V	3.6 A	-40 °C	150 °C	MOSFET (Metal Oxide)	10 V	950 mOhm	31 nC	TO-220-3 Full Pack	785 pF	N-Channel	Through Hole	PG-TO220-FP	3.9 V
INFINEON IPA80R460CEXKSA1	20 V	34 W	800 V	5 A	-40 °C	150 °C	MOSFET (Metal Oxide)	10 V	460 mOhm	64 nC	TO-220-3 Full Pack	1600 pF	N-Channel	Through Hole	PG-TO220-FP	3.9 V
INFINEON IPA80R1K4CEXKSA1	20 V	31 W	800 V	2.8 A	-40 °C	150 °C	MOSFET (Metal Oxide)	10 V		23 nC	TO-220-3 Full Pack		N-Channel	Through Hole	PG-TO220-FP	3.9 V	1.4 Ohm	570 pF
