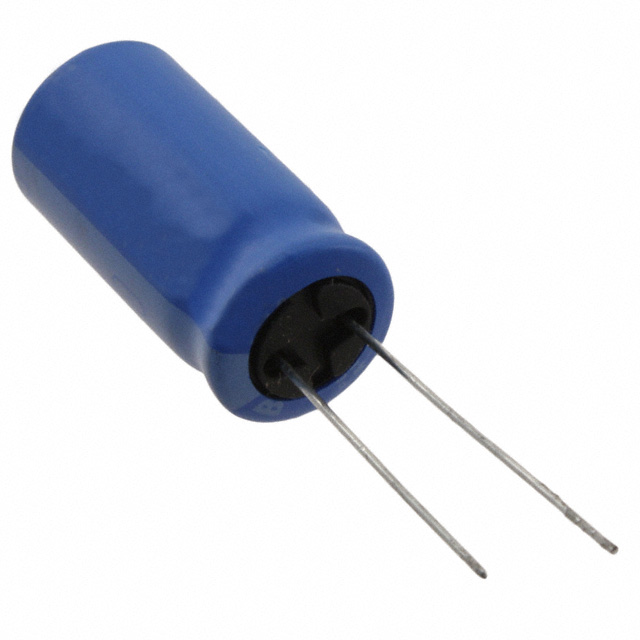

UBT Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 47UF 50V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Impedance	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Polarization	Tolerance	Ripple Current @ High Frequency	Applications	Ripple Current @ Low Frequency	Capacitance	Lead Spacing	Lead Spacing	Ratings	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon UBT1H470MPD8TD	125 °C	-40 C	Can Radial	350 mOhms	Through Hole	0.531 in	13.5 mm	0.315 in	8 mm	50 VDC	Polar	20 %	440 mA	Automotive	220 mA	47 µF	0.138 in	3.5 mm	AEC-Q200	2000 Hrs
Nichicon UBT2D101MHD8TN	125 °C	-40 C	Can Radial		Through Hole	1.063 in	27 mm	0.63 in	16 mm	200 VDC	Polar	20 %	493.5 mA	Automotive	329 mA	100 µF	0.295 in	7.5 mm		2000 Hrs
Nichicon UBT2G100MPD8	125 °C	-25 °C	Can Radial		Through Hole	1.063 in	27 mm	0.394 in	10 mm	400 V	Polar	20 %	154.8 mA	Automotive	86 mA	10 µF	0.197 "	5 mm		2000 Hrs
Nichicon UBT1H470MPD8	125 °C	-40 C	Can Radial	350 mOhms	Through Hole	0.531 in	13.5 mm	0.315 in	8 mm	50 VDC	Polar	20 %	440 mA	Automotive	220 mA	47 µF	0.138 in	3.5 mm		2000 Hrs
Nichicon UBT1E221MPD8TD	125 °C	-40 C	Can Radial	100 mOhms	Through Hole	0.571 "	14.5 mm	0.394 in	10 mm	25 VDC	Polar	20 %	680 mA	Automotive	340 mA	220 µF	0.197 "	5 mm		5000 Hrs
Nichicon UBT1E331MPD8	125 °C	-40 C	Can Radial	75 mOhms	Through Hole			0.394 in	10 mm	25 VDC	Polar	20 %	945 mA	Automotive	472.5 mA	330 µF	0.197 "	5 mm		5000 Hrs	0.709 in	18 mm
Nichicon UBT2C680MHD8	125 °C	-40 C	Can Radial		Through Hole	1.063 in	27 mm	0.492 in	12.5 mm	160 V	Polar	20 %	367.5 mA	Automotive	245 mA	68 µF	0.197 "	5 mm		2000 Hrs
Nichicon UBT1H220MPD8	125 °C	-40 C	Can Radial	500 mOhms	Through Hole	0.531 in	13.5 mm	0.315 in	8 mm	50 VDC	Polar	20 %	250 mA	Automotive	125 mA	22 µF	0.138 in	3.5 mm	AEC-Q200	2000 Hrs
Nichicon UBT1J220MPD8TA	125 °C	-40 C	Can Radial	2 Ohms	Through Hole	0.531 in	13.5 mm	0.315 in	8 mm	63 V	Polar	20 %	130 mA	Automotive	65 mA	22 µF	0.138 in	3.5 mm		2000 Hrs
Nichicon UBT2A100MPD8TD	125 °C	-40 C	Can Radial	1.5 Ohms	Through Hole	0.531 in	13.5 mm	0.315 in	8 mm	100 V	Polar	20 %	150 mA	Automotive	75 mA	10 µF	0.138 in	3.5 mm		2000 Hrs
