LNK Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SCREW TERMINAL 4700 UF 350 VDC 20 %

Part	Package / Case	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Polarization	Capacitance	Tolerance	Applications	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Lifetime @ Temp.	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Height - Seated (Max)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)
Nichicon LNK2V472MSEHBB	Radial Can - Screw Terminals	350 V	3.661 in	93 mm	Polar	4700 µF	20 %	General Purpose	1.252 in	31.8 mm	3 in	76.2 mm	Chassis Mount	5000 Hrs	14.2 A	85 °C	-25 °C	19.88 A
Nichicon LNK2G103MSEJBN	Radial Can - Screw Terminals	400 V	5.236 "	133 mm	Polar	10000 µF	20 %	General Purpose	1.252 in	31.8 mm	3.543 in	90 mm	Chassis Mount	5000 Hrs	24.2 A	85 °C	-25 °C	33.88 A
Nichicon LNK2H103MSEJBB	Radial Can - Screw Terminals	500 V	9.37 in		Polar	10000 µF	20 %	General Purpose	1.252 in	31.8 mm	3.543 in	90 mm	Chassis Mount	5000 Hrs	29.3 A	85 °C	-25 °C	41.02 A	238 mm
Nichicon LNK2V392MSEH	Radial Can - Screw Terminals	350 V	3.346 in	85 mm	Polar	3900 µF	20 %	General Purpose	1.252 in	31.8 mm	3 in	76.2 mm	Chassis Mount	5000 Hrs	13 A	85 °C	-25 °C	18.2 A

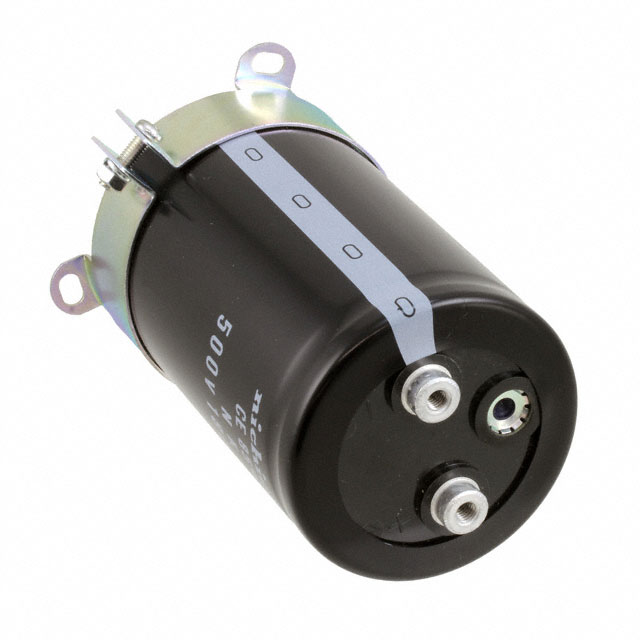

Nichicon LNK2H182MSEG	Radial Can - Screw Terminals	500 V			Polar	1800 µF	20 %	General Purpose	1.126 "	28.6 mm	2.5 in	63.5 mm	Chassis Mount	5000 Hrs	8.3 A	85 °C	-25 °C	11.62 A		105 mm	4.134 "
Nichicon LNK2W182MSEFBB	Radial Can - Screw Terminals	450 V	4.252 in	108 mm	Polar	1800 µF	20 %	General Purpose	0.866 "	22 mm	2.008 in	51 mm	Chassis Mount	5000 Hrs	7.6 A	85 °C	-25 °C	10.64 A
Nichicon LNK2H392MSEH	Radial Can - Screw Terminals	500 V		5.906 in	Polar	3900 µF	20 %	General Purpose	1.252 in	31.8 mm	3 in	76.2 mm	Chassis Mount	5000 Hrs	14.4 A	85 °C	-25 °C	20.16 A				150 mm
Nichicon LNK2H822MSEJBB	Radial Can - Screw Terminals	500 V	7.598 in	193 mm	Polar		20 %	General Purpose	1.252 in	31.8 mm	3.543 in	90 mm	Chassis Mount	5000 Hrs	24.5 A	85 °C	-25 °C	34.3 A
Nichicon LNK2V152MSEF	Radial Can - Screw Terminals	350 V			Polar	1.5 mF	20 %	General Purpose	0.866 "	22 mm	2.008 in	51 mm	Chassis Mount	5000 Hrs	6.5 A	85 °C	-25 °C	9.1 A		75 mm	2.953 "
Nichicon LNK2G472MSEHBB	Radial Can - Screw Terminals	400 V			Polar	4700 µF	20 %	General Purpose	1.252 in	31.8 mm	3 in	76.2 mm	Chassis Mount	5000 Hrs	15 A	85 °C	-25 °C	21 A	113 mm		4.449 in
