PEAD150C Series

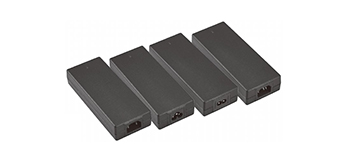

Desktop Power Supply 12V 150W *New Slimline Design*

Manufacturer: TT Electronics/BI

Catalog

Desktop Power Supply 12V 150W *New Slimline Design*

Catalog

Desktop Power Supply 12V 150W *New Slimline Design*

Part	Current - Output (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Standard Number	No Load Power Consumption	Cord Length	Cord Length	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Region Utilized	Input Type	Voltage - Output	Output Connector	Applications	Form	Operating Temperature [Min]	Operating Temperature [Max]	Input Connector
TT Electronics/BI PEAD150C-14	6.3 A	264 VAC	90 VAC	CB CCC CE cULus PSE UKCA	62368-1	210 mW	47 in	1.2 m	151 W	2.52 in	1.18 in	6.3 in	64 mm	30 mm	160 mm	CoC Tier 2 Level VI	International	Cord (Sold Separately)	24 V	Power DIN 4 Pin	ITE (Commercial)	Desktop (Class I)	0 °C	60 °C	IEC 320-C14
TT Electronics/BI PEAD150C-18	3.1 A	264 VAC	90 VAC	CB CCC CE cULus PSE UKCA	62368-1	210 mW	47 in	1.2 m	149 W	2.52 in	1.18 in	6.3 in	64 mm	30 mm	160 mm	CoC Tier 2 Level VI	International	Cord (Sold Separately)	48 V	Power DIN 4 Pin	ITE (Commercial)	Desktop (Class I)	0 °C	60 °C	IEC 320-C14
TT Electronics/BI PEAD150C-13	10 A	264 VAC	90 VAC	CB CCC CE cULus PSE UKCA	62368-1	210 mW	47 in	1.2 m	150 W	2.52 in	1.18 in	6.3 in	64 mm	30 mm	160 mm	CoC Tier 2 Level VI	International	Cord (Sold Separately)	15 V	Power DIN 4 Pin	ITE (Commercial)	Desktop (Class I)	0 °C	60 °C	IEC 320-C14
TT Electronics/BI PEAD150C-12	12.5 A	264 VAC	90 VAC	CB CCC CE cULus PSE UKCA	62368-1	210 mW	47 in	1.2 m	150 W	2.52 in	1.18 in	6.3 in	64 mm	30 mm	160 mm	CoC Tier 2 Level VI	International	Cord (Sold Separately)	12 V	Power DIN 4 Pin	ITE (Commercial)	Desktop (Class I)	0 °C	60 °C	IEC 320-C14
