IPG20N Series

Manufacturer: INFINEON

Catalog

INFINEON’S IPG20N06S2L-35 IS A DUAL N-CHANNEL MOSFET, 150°C OPERATING TEMP, ROHS COMPLIANT, IDEAL FOR DIRECT FUEL INJECTION AND ABS VALVES. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Part	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds	Technology	Operating Temperature [Max]	Operating Temperature [Min]	Gate Charge (Qg) (Max) @ Vgs	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Package / Case	Power - Max [Max]	Supplier Device Package	FET Feature	Grade	Current - Continuous Drain (Id) @ 25°C	Configuration	Qualification	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds [Max]	Rds On (Max) @ Id, Vgs [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]

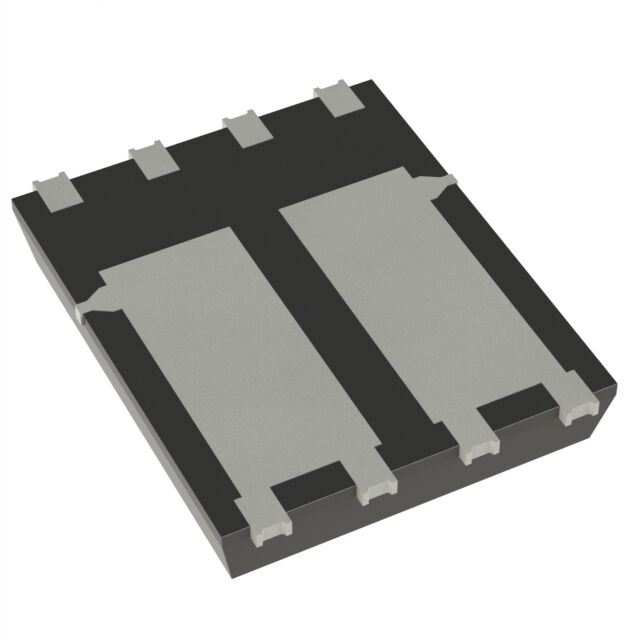

INFINEON IPG20N06S2L35ATMA1	2 V	790 pF	MOSFET (Metal Oxide)	175 °C	-55 °C	23 nC	55 V	35 mOhm	8-PowerVDFN	65 W	PG-TDSON-8-4	Logic Level Gate	Automotive	20 A	2 N-Channel (Dual)	AEC-Q101	Surface Mount
INFINEON IPG20N06S2L50ATMA1	2 V	560 pF	MOSFET (Metal Oxide)	175 °C	-55 °C	17 nC	55 V	50 mOhm	8-PowerVDFN	51 W	PG-TDSON-8-4	Logic Level Gate		20 A	2 N-Channel (Dual)		Surface Mount
INFINEON IPG20N06S3L-35	2.2 V		MOSFET (Metal Oxide)	175 °C	-55 °C	23 nC	55 V	35 mOhm	8-PowerVDFN	30 W	PG-TDSON-8-4	Logic Level Gate		20 A	2 N-Channel (Dual)		Surface Mount	1730 pF
INFINEON IPG20N04S4L07ATMA1	2.2 V		MOSFET (Metal Oxide)	175 °C	-55 °C	50 nC	40 V	7.2 mOhm	8-PowerVDFN	65 W	PG-TDSON-8-4	Logic Level Gate	Automotive	20 A	2 N-Channel (Dual)	AEC-Q101	Surface Mount	3980 pF
INFINEON IPG20N06S2L65AUMA1
INFINEON IPG20N04S4L08ATMA1	2.2 V		MOSFET (Metal Oxide)	175 °C	-55 °C	39 nC	40 V	8.2 mOhm	8-PowerVDFN	54 W	PG-TDSON-8-4	Logic Level Gate	Automotive	20 A	2 N-Channel (Dual)	AEC-Q101	Surface Mount	3050 pF
INFINEON IPG20N10S436AATMA1	3.5 V	990 pF	MOSFET (Metal Oxide)	175 °C	-55 °C	15 nC	100 V		8-PowerVDFN	43 W	PG-TDSON-8-10		Automotive	20 A	2 N-Channel (Dual)	AEC-Q101	Surface Mount Wettable Flank		36 mOhm
INFINEON IPG20N04S4L08AATMA1	2.2 V		MOSFET (Metal Oxide)	175 °C	-55 °C	39 nC	40 V	8.2 mOhm	8-PowerVDFN	54 W	PG-TDSON-8-10	Logic Level Gate	Automotive	20 A	2 N-Channel (Dual)	AEC-Q101	Surface Mount Wettable Flank	3050 pF
INFINEON IPG20N04S412AATMA1	4 V		MOSFET (Metal Oxide)	175 °C	-55 °C		40 V	12.2 mOhm	8-PowerVDFN	41 W	PG-TDSON-8-10		Automotive	20 A	2 N-Channel (Dual)	AEC-Q101	Surface Mount Wettable Flank	1470 pF		18 nC
INFINEON IPG20N04S408ATMA1	4 V		MOSFET (Metal Oxide)	175 °C	-55 °C		40 V	7.6 mOhm	8-PowerVDFN	65 W	PG-TDSON-8-4			20 A	2 N-Channel (Dual)		Surface Mount	2940 pF
