C0740 Series
Manufacturer: Prysmian Group
Beta
⌘K

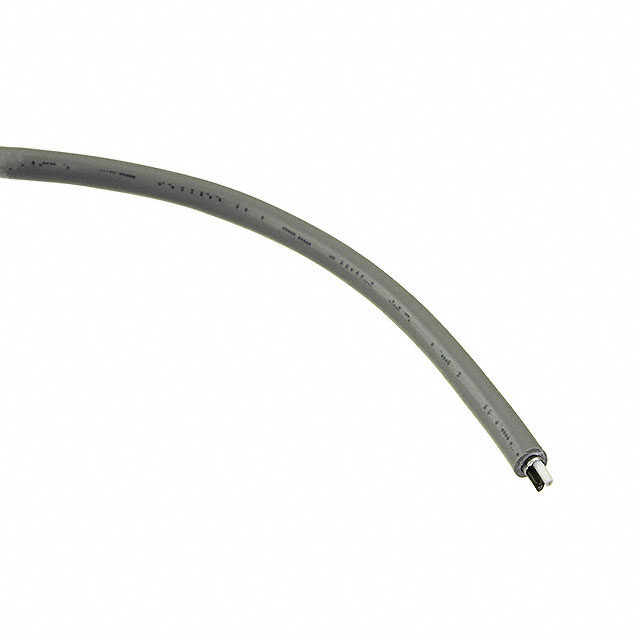

CABLE 2COND 24AWG GRAY SHLD 500'
| Part | Length | Length | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Conductor Insulation | Number of Conductors | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Features | Shield Type | Jacket (Insulation) Material | Conductor Material | Length [x] | Length [x] | Usage | Operating Temperature [Min] | Operating Temperature [Max] | Shield Coverage | Shield Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 0.813 mm | 0.032 in | Gray | 7 | 32 AWG | 24 AWG | Poly-Vinyl Chloride (PVC) | 2 | 300 VDC | 0.157 in | 3.99 mm | Multi-Conductor | Drain Wire | Foil | Poly-Vinyl Chloride (PVC) | Copper Tinned | 100 ft | 30.5 m | Computer | -20 ░C | 105 ░C | ||
Prysmian Group | 152.4 m 304.8 m | 500 ft 1000 ft | 0.813 mm | 0.032 in | Gray | 7 | 32 AWG | 24 AWG | Poly-Vinyl Chloride (PVC) | 2 | 300 VDC | 0.157 in | 3.99 mm | Multi-Conductor | Drain Wire | Foil | Poly-Vinyl Chloride (PVC) | Copper Tinned | 100 ft | 30.5 m | Computer | -20 ░C | 80 °C 105 ░C | 100 % | Flexfoil® |
