1011025 Series
Manufacturer: Integrated Power Designs
Beta
⌘K

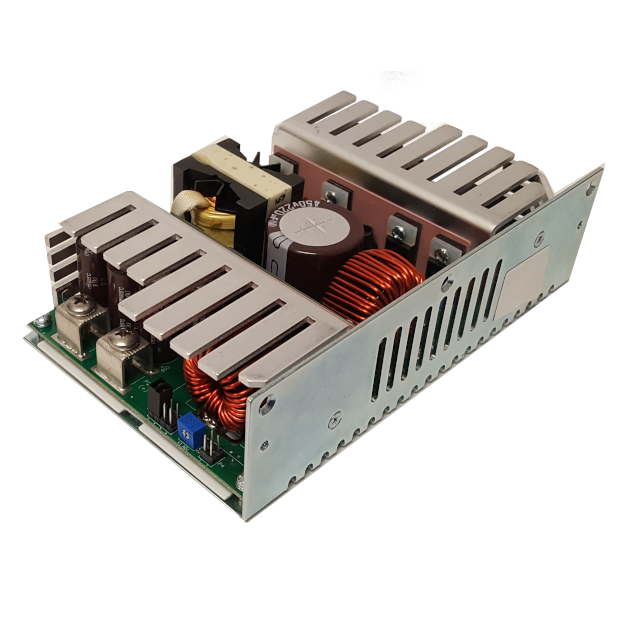

AC/DC CONVERTER 48V 350W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Efficiency | Power (Watts) | Type | Mounting Type | Current - Output 1 | Approval Agency | Standard Number | Voltage - Input [Min] | Voltage - Input [Max] | Number of Outputs | Features | Applications | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Integrated Power Designs | 70 °C | 0 °C | 157.5 mm | 4 " | 6.2 in | 1.75 in | 44.5 mm | 101.6 mm | 85 % | 350 W | Chassis | Chassis Mount | 7.3 A | CE cURus TUV UKCA | 60601-1; 62368-1 | 100 VAC | 240 VAC | 1 | Adjustable Output Remote Sense Universal Input | ITE (Commercial) Medical | 48 V |
