ESDALD05 Series

Catalog

THE ESDALD05UD4 IS DESIGNED TO P

Part	Current - Peak Pulse (10/1000µs)	Package / Case	Supplier Device Package	Type	Mounting Type	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Unidirectional Channels [custom]	Power - Peak Pulse	Applications	Voltage - Breakdown (Min) [Min]	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ)	Bidirectional Channels [custom]	Unidirectional Channels

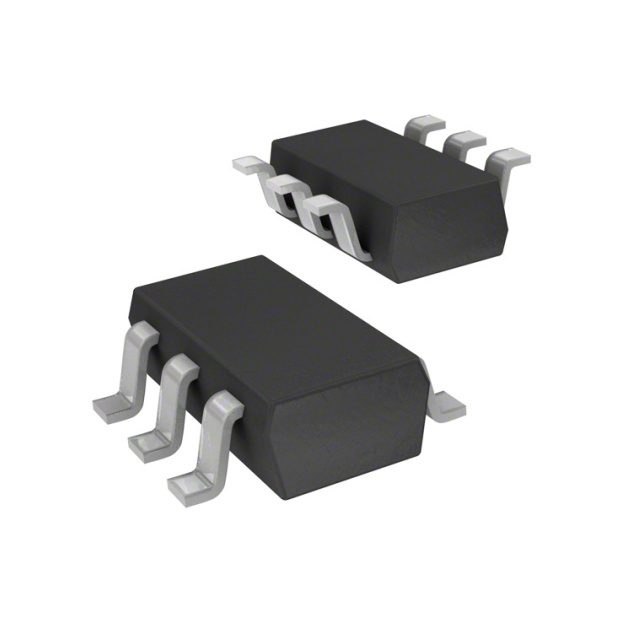

WeEn Semiconductors ESDALD05UD4X	5.5 A	SOT-23-6	SOT-23-6L	Steering (Rail to Rail)	Surface Mount	16 V	150 °C	-55 °C	4	88 W	DVI USB	6 V	0.6 pF	5 V

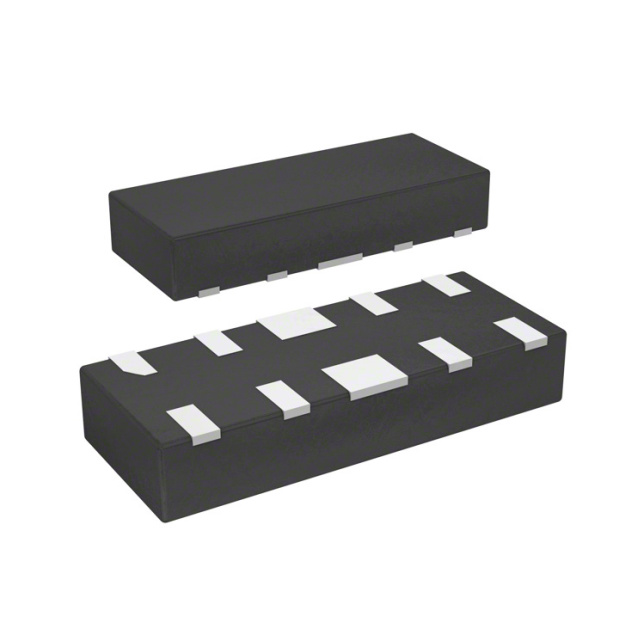

WeEn Semiconductors ESDALD05UG4X	4 A	10-UFDFN	DFN2510	Steering (Rail to Rail)	Surface Mount	15 V	150 °C	-55 °C	4	60 W	DVI HDMI USB	6 V	0.6 pF	5 V
WeEn Semiconductors ESDALD05BCX	15 A	SC-76 SOD-323	SOD-323	Zener	Surface Mount	21 V	150 °C	-55 °C			General Purpose	6.5 V	0.8 pF	5 V	1

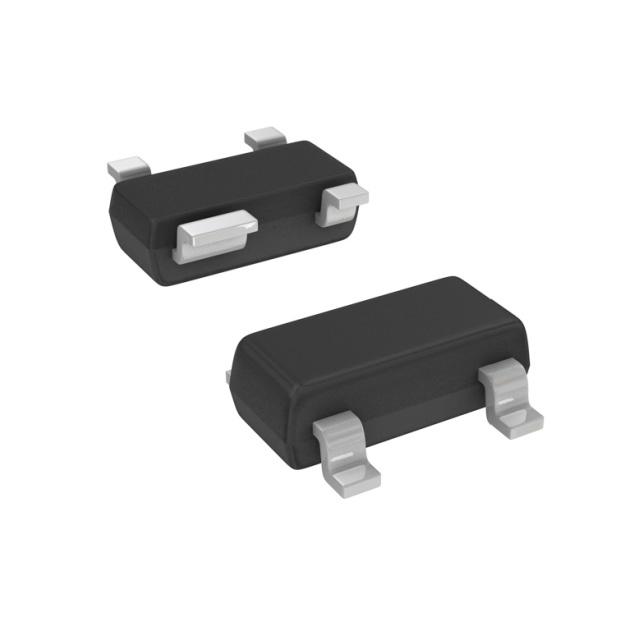

WeEn Semiconductors ESDALD05UJ2X	8 A	TO-253-4 TO-253AA	SOT-143	Steering (Rail to Rail)	Surface Mount	17 V	150 °C	-55 °C		136 W	USB	6 V	1.35 pF	5 V		2
WeEn Semiconductors ESDALD05UE2X	4 A	SC-59 SOT-23-3 TO-236-3	SOT-23-3L	Zener	Surface Mount	15 V	150 °C	-55 °C		60 W	DVI HDMI USB	6 V	0.5 pF	5 V		2
