F175H1 Series
Manufacturer: NMB TECHNOLOGIES
Beta
⌘K

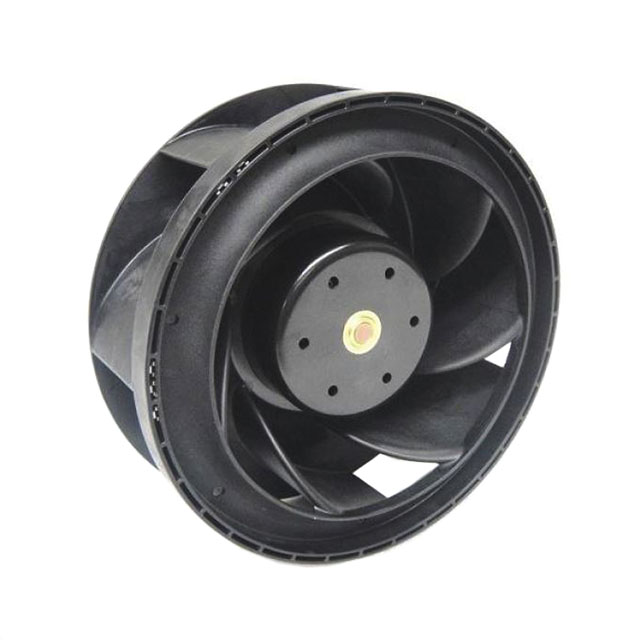

FAN BLOWER, F175H SERIES, MOTORIZED IMPELLER, 48 VDC, DC, 175 MM, 69 MM, 610 CFM
| Part | Material - Blade | Lifetime @ Temp. | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Air Flow | Air Flow | Size / Dimension | Size / Dimension [diameter] | Noise | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Static Pressure | Static Pressure | Features | Power (Watts) | Fan Type | Width [y] | RPM | Weight | Weight | Bearing Type | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NMB TECHNOLOGIES | Plastic | 70000 Hrs | 72 VDC | 36 VDC | 3.8 A | 17.08 m³/min | 610 CFM | Round | 175 mm | 78 dB(A) | 48 VDC | 70 °C | -30 ░C | -30 °C | 70 °C | 4.19 in H2O | 1046 Pa | PWM Control Speed Sensor (Tach) | 182 W | Motorized Impellers | 69 mm | 5400 RPM | 907.2 g | 2 lbs | Ball | 4 Wire Leads |
