Connectors, Interconnects

09332162648

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN ES PRESS SERIES, INSERT, 16 CONTACTS, 16B, PLUG, CAGE CLAMP PIN

Search across all available documentation for this part.

Connectors, Interconnects

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN ES PRESS SERIES, INSERT, 16 CONTACTS, 16B, PLUG, CAGE CLAMP PIN

Technical Specifications

Parameters and characteristics for this part

Specification	09332162648

Color	Gray
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	16+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Termination Style	Tension Clamp
Voltage Rating	500 V

Part	Termination Style	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Gender	Housing Material	Color	Contact Material	Voltage Rating	Number of Positions	Material Flammability Rating	Size	Connector Type	Contact Type
HARTING Technology Group 09332162648	Tension Clamp	16 A	125 °C	-40 °C	Gold	Male	Polycarbonate (PC)	Gray	Copper Alloy	500 V	16+Ground	UL94 V-0	16 B

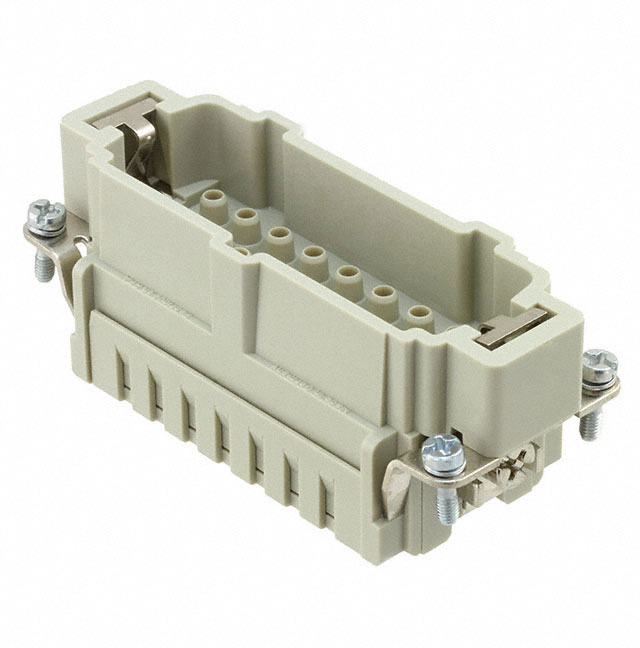

HARTING Technology Group 09332162602	Crimp	16 A	125 °C	-40 °C		Male	Polycarbonate (PC)	Gray		500 V	16+Ground	UL94 V-0	16 B	Insert without Contacts	Han E® HMC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert Gray 16+Ground Position Tension Clamp
