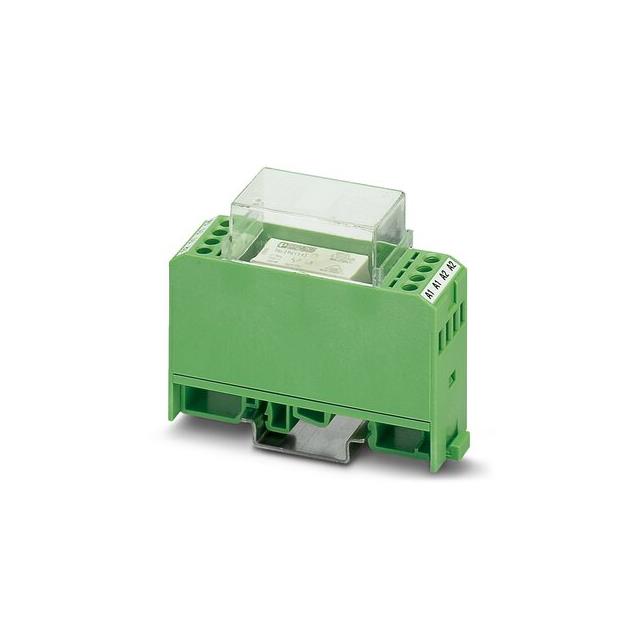

Technical Specifications
Parameters and characteristics for this part
| Specification | 2947721 |
|---|---|
| Approval Agency | EAC |
| Coil Current | 18 mA |
| Coil Resistance | 1.3 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi), Gold (Au) |
| Contact Rating (Current) | 6 A |
| Features | Socket Included, Lighted Indicator |
| Load - Max Switching | 144 W, 1500 VA |
| Mounting Type | DIN Rail |
| Operate Time | 8 ms |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 ░C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Screw Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 123.83 | |
| N/A | 0 | $ 137.59 | ||
Description
General part information
29477 Series
General Purpose Relay SPDT (1 Form C) 24VAC/DC Coil DIN Rail
