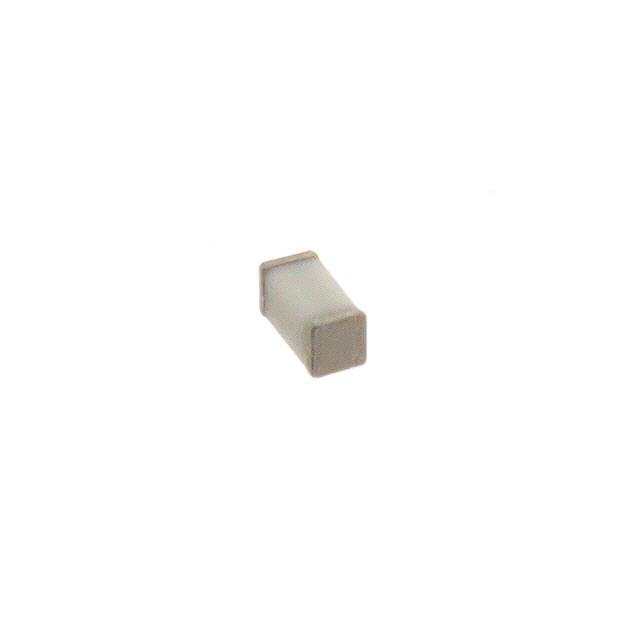

3410.0141.03

Active

SCHURTER Inc.

FUSE CHIP VERY FAST ACTING 5A 32V SMD SOLDER PAD 1206 3.2 X 1.55 X 1.55MM CERAMIC T/R CULUS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Circuit Protection

3410.0141.03

Active

SCHURTER Inc.

FUSE CHIP VERY FAST ACTING 5A 32V SMD SOLDER PAD 1206 3.2 X 1.55 X 1.55MM CERAMIC T/R CULUS

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3410.0141.03

Breaking Capacity @ Rated Voltage	50 A
Current Rating (Amps)	4 A
DC Cold Resistance	0.0135 Ohms
Fuse Type	Board Mount (Cartridge Style Excluded)
Melting I²t	0.45
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 C
Package / Case	2-SMD, Square End Block
Response Time	Fast Blow
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.061 in
Size / Dimension [y]	1.55 mm
Size / Dimension [z]	1.55 mm
Size / Dimension [z]	0.061 in
Voltage Rating - AC	63 V
Voltage Rating - DC	125 VDC

MGA Series

Part	DC Cold Resistance	Mounting Type	Current Rating (Amps)	Package / Case	Voltage Rating - DC	Melting I²t	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Breaking Capacity @ Rated Voltage	Fuse Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Response Time
SCHURTER Inc. 3410.0036.04	0.0295 Ohms	Surface Mount	2.5 A	2-SMD Square End Block	125 VDC	0.15	-55 C	150 °C	125 V	50 A 300 A	Board Mount (Cartridge Style Excluded)	0.061 in	0.126 "	1.55 mm	1.55 mm	0.061 in	3.2 mm	Fast Blow
SCHURTER Inc. 3410.0022.04	0.8 Ohms	Surface Mount	0.25 A	2-SMD Square End Block	125 VDC	0.0009 I²t	-55 C	150 °C	125 V	50 A 300 A	Board Mount (Cartridge Style Excluded)	0.061 in	0.126 "	1.55 mm	1.55 mm	0.061 in	3.2 mm	Fast Blow
SCHURTER Inc. 3410.0141.03	0.0135 Ohms	Surface Mount	4 A	2-SMD Square End Block	125 VDC	0.45	-55 C	150 °C	63 V	50 A	Board Mount (Cartridge Style Excluded)	0.061 in	0.126 "	1.55 mm	1.55 mm	0.061 in	3.2 mm	Fast Blow
SCHURTER Inc. 3410.0022.02		Surface Mount	0.25 A	2-SMD Square End Block	125 VDC	0.0009 I²t	-55 C	150 °C	125 V	50 A 300 A	Board Mount (Cartridge Style Excluded)	0.061 in	0.126 "	1.55 mm	1.55 mm	0.061 in	3.2 mm	Fast Blow
SCHURTER Inc. 3410.0029.04		Surface Mount	750 mA	2-SMD Square End Block	125 VDC	0.01	-55 C	150 °C	125 V	50 A 300 A	Board Mount (Cartridge Style Excluded)	0.061 in	0.126 "	1.55 mm	1.55 mm	0.061 in	3.2 mm	Fast Blow
SCHURTER Inc. 3410.0029.01	0.115 Ohms	Surface Mount	750 mA	2-SMD Square End Block	125 VDC	0.01	-55 C	150 °C	125 V	50 A 300 A	Board Mount (Cartridge Style Excluded)	0.061 in	0.126 "	1.55 mm	1.55 mm	0.061 in	3.2 mm	Fast Blow

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.32
		5	$ 3.21
		10	$ 3.09
		50	$ 2.41
		100	$ 2.02
	Digi-Reel®	1	$ 3.32
		5	$ 3.21
		10	$ 3.09
		50	$ 2.41
		100	$ 2.02
	N/A	2939	$ 5.20
	Tape & Reel (TR)	3000	$ 2.02
Mouser	N/A	3000	$ 2.12

Description

General part information

MGA Series

4 A 63 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
