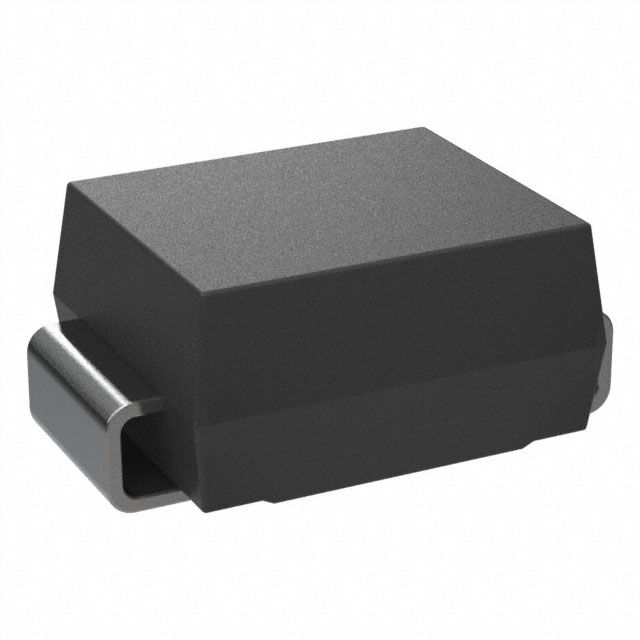

SMBJ58CA
Circuit Protection

SMBJ200CA

Active
Semtech Corporation

TVS DIODE 200VWM 324VC DO214AA

Deep-Dive with AI

Search across all available documentation for this part.

SMBJ58CA
Circuit Protection

SMBJ200CA

Active
Semtech Corporation

TVS DIODE 200VWM 324VC DO214AA

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

SpecificationSMBJ200CA
ApplicationsTelecom
Bidirectional Channels [custom]1
Current - Peak Pulse (10/1000µs)1.9 A
Mounting TypeSurface Mount
Operating Temperature [Max]175 °C
Operating Temperature [Min]-55 °C
Package / CaseSMB, DO-214AA
Power - Peak Pulse600 W
Power Line ProtectionFalse
Supplier Device PackageDO-214AA (SMB)
TypeZener
Voltage - Breakdown (Min) [Min]224 V
Voltage - Clamping (Max) @ Ipp [Max]324 V
Voltage - Reverse Standoff (Typ)200 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.58
1$ 0.38
10$ 0.51
10$ 0.29
100$ 0.35
100$ 0.18
500$ 0.29
500$ 0.16
1000$ 0.11
1000$ 0.25
Digi-Reel® 1$ 0.58
1$ 0.38
10$ 0.29
10$ 0.51
100$ 0.35
100$ 0.18
500$ 0.16
500$ 0.29
1000$ 0.11
1000$ 0.25
N/A 0$ 0.28
0$ 0.05
3060$ 0.42
3438$ 0.33
5857$ 0.54
6000$ 0.28
11675$ 0.30
37433$ 0.32
Tape & Reel (TR) 3000$ 0.10
3000$ 0.28
3000$ 0.22
6000$ 0.21
6000$ 0.26
6000$ 0.10
9000$ 0.24
9000$ 0.09
9000$ 0.19
15000$ 0.23
21000$ 0.23
30000$ 0.19
30000$ 0.09
75000$ 0.08

Description

General part information

SMBJ200 Series

324V Clamp 1.9A Ipp Tvs Diode Surface Mount DO-214AA (SMB)

Documents

Technical documentation and resources

No documents available
