Technical Specifications
Parameters and characteristics for this part
| Specification | 1323C SL001 |
|---|---|
| Cable Type | Multi-Pair |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 30 AWG |
| Conductor Strand [custom] | 7 |
| Jacket (Insulation) Diameter [diameter] | 0.371 in |
| Jacket (Insulation) Diameter [diameter] | 9.42 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.035 in |
| Jacket (Insulation) Thickness | 0.889 mm |
| Jacket Color | Slate |
| Length | 304.8 m |
| Length | 1000 ft |
| Number of Conductors | 18 |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -20 ░C |
| Usage | Communication, Control |
| Voltage | 300 VDC |
| Wire Gauge | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | N/A | 0 | $ 3.20 | |
| Spool | 1000 | $ 2.59 | ||
Description
General part information
1323C Series

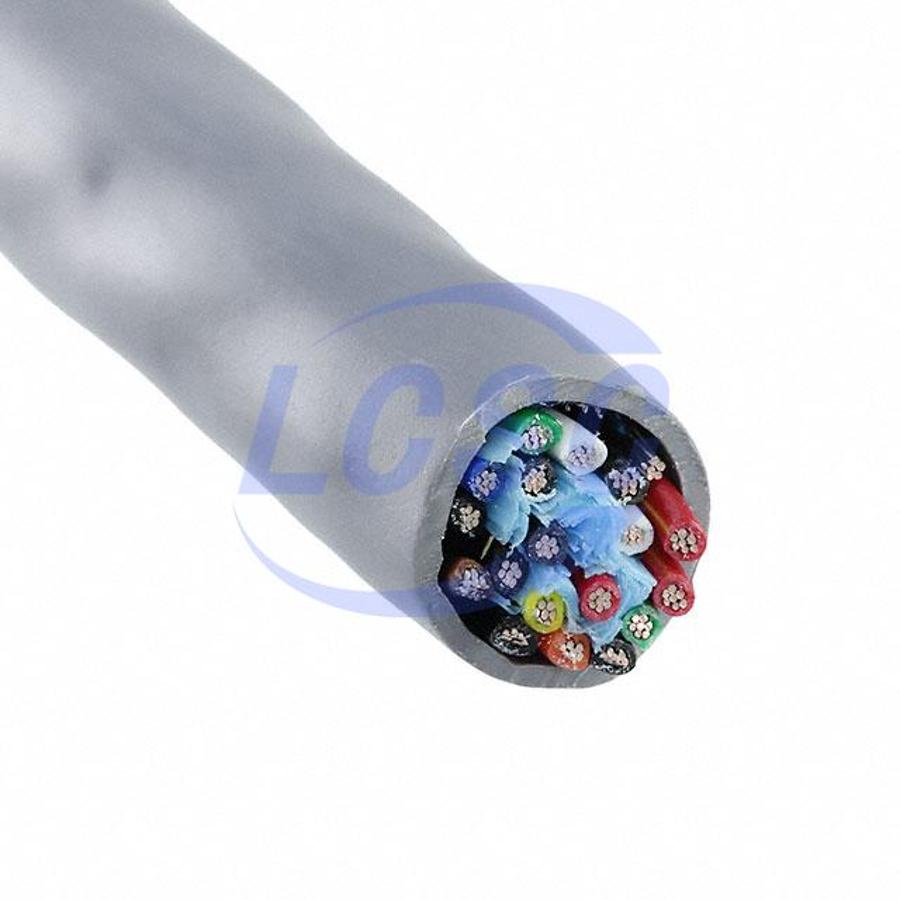

18 (9 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG 1000.0' (304.8m)
