ATS-10E-22-C2-R0

Active

Advanced Thermal Solutions Inc.

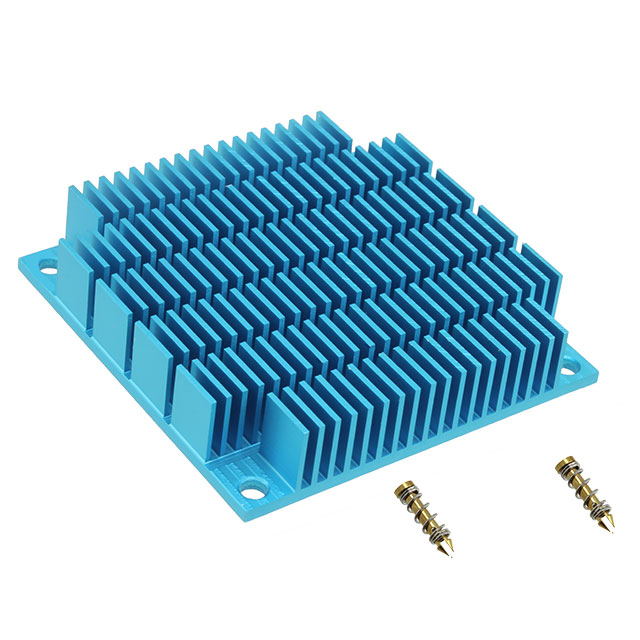

HEATSINK 60X60X12.7MM XCUT T766

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Fans, Blowers, Thermal Management

ATS-10E-22-C2-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 60X60X12.7MM XCUT T766

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ATS-10E-22-C2-R0

Attachment Method	Push Pin
Fin Height [z]	12.7 mm
Fin Height [z]	0.5 in
Length [x]	60 mm
Length [x]	2.362 in
Material	Aluminum
Material Finish	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Fins
Thermal Resistance @ Forced Air Flow	13.83 °C/W
Type	Top Mount
Width [x]	60 mm
Width [x]	2.362 in

ATS-10E Series

...

Part	Type	Material Finish	Fin Height [z]	Fin Height [z]	Attachment Method	Package Cooled	Material	Shape	Thermal Resistance @ Forced Air Flow	Length	Length	Width	Width [x]	Length [x]	Length [x]	Width [x]	Fin Height	Fin Height	Width	Width [y]
Advanced Thermal Solutions Inc. ATS-10E-47-C1-R0	Top Mount	Blue Anodized	1.181 in	30 mm	Push Pin	ASIC BGA CPU LGA	Aluminum	Fins Square	9.24 °C/W 100 LFM	25 mm	0.984 in	25 mm	0.984 in
Advanced Thermal Solutions Inc. ATS-10E-112-C1-R1	Top Mount	Blue Anodized	0.5 in	12.7 mm	Push Pin	ASIC BGA CPU LGA	Aluminum	Fins Square	26.29 °C/W				2.362 in	60 mm	2.362 in	60 mm
Advanced Thermal Solutions Inc. ATS-10E-198-C3-R0	Top Mount	Blue Anodized	0.472 in	12 mm	Push Pin	ASIC BGA CPU LGA	Aluminum	Fins Square	9.21 °C/W 100 LFM	45 mm		45 mm	1.772 in		1.772 "
Advanced Thermal Solutions Inc. ATS-10E-22-C2-R0	Top Mount	Blue Anodized	0.5 in	12.7 mm	Push Pin	ASIC BGA CPU LGA	Aluminum	Fins Square	13.83 °C/W				2.362 in	60 mm	2.362 in	60 mm
Advanced Thermal Solutions Inc. ATS-10E-193-C3-R0	Top Mount	Blue Anodized			Push Pin	ASIC BGA CPU LGA	Aluminum	Fins Square	21.29 °C/W				1.575 in			40 mm
Advanced Thermal Solutions Inc. ATS-10E-170-C2-R0	Top Mount	Blue Anodized			Push Pin	ASIC BGA CPU LGA	Aluminum	Fins Square	10.07 °C/W			30 mm		30 mm	1.181 in		0.59 "	15 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-10E-20-C3-R0	Top Mount	Blue Anodized			Push Pin	ASIC BGA CPU LGA	Aluminum	Fins Square	7.21 °C/W 100 LFM				2.126 "	54 mm	2.126 "	54 mm	0.984 in	25 mm
Advanced Thermal Solutions Inc. ATS-10E-34-C1-R0	Top Mount	Blue Anodized	0.9 in	22.86 mm	Push Pin	ASIC BGA CPU LGA	Aluminum	Rectangular Fins	14.31 °C/W	57.9 mm	2.28 "	36.83 mm								1.45 "
Advanced Thermal Solutions Inc. ATS-10E-197-C2-R0	Top Mount	Blue Anodized	0.394 in	10 mm	Push Pin	ASIC BGA CPU LGA	Aluminum	Fins Square	10.9 °C/W 100 LFM	45 mm		45 mm	1.772 in		1.772 "
Advanced Thermal Solutions Inc. ATS-10E-02-C3-R0	Top Mount	Blue Anodized	0.5 in	12.7 mm	Push Pin	ASIC BGA CPU LGA	Aluminum	Fins Square	18.44 °C/W				1.575 in			40 mm
