Connectors, Interconnects

37_N-50-0-1/133_NE

Active

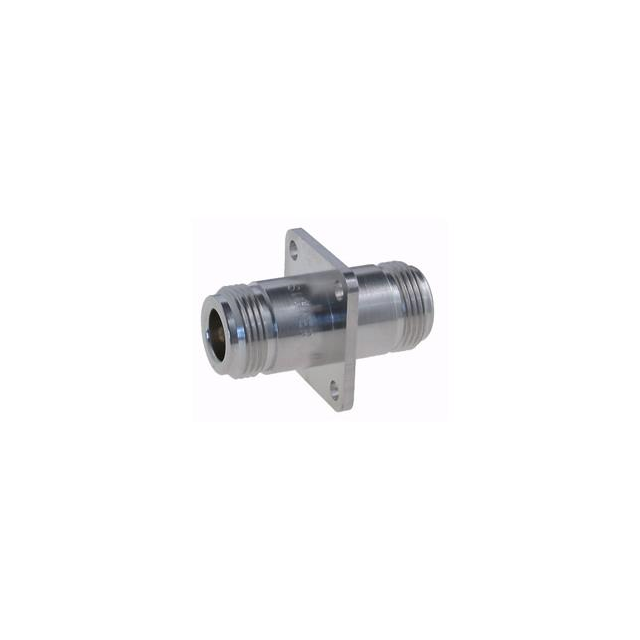

CONN TYPE N ADAPTER 0HZ TO 11GHZ 50OHM ST FLANGE MOUNT F/F GOLD OVER NICKEL SINGLE

Search across all available documentation for this part.

Connectors, Interconnects

Active

CONN TYPE N ADAPTER 0HZ TO 11GHZ 50OHM ST FLANGE MOUNT F/F GOLD OVER NICKEL SINGLE

Technical Specifications

Parameters and characteristics for this part

Specification	37_N-50-0-1/133_NE

Adapter Series	N to N
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	Female Socket, N Jack
Convert To (Adapter End)	N Jack, Female Socket
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Panel Mount
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Body Material	Dielectric Material	Center Contact Material	Mating Cycles	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Convert To (Adapter End)	Center Gender	Center Contact Plating	Conversion Type	Mounting Feature	Style	Frequency - Max [Max]	Impedance	Adapter Type	Adapter Series	Convert From (Adapter End)	Mounting Type
Huber+Suhner, Inc. 37_N-50-0-1/133_NE	Brass	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	500	White Bronze	-65 ░C	165 °C	N Jack Female Socket	Female to Female	Gold	Same Series	Flange	Straight	11 GHz	50 Ohms	Jack to Jack	N to N	Female Socket N Jack	Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To N Jack, Female Socket 50 Ohms
