Technical Specifications

Parameters and characteristics for this part

Specification	770W-X2/04

Accomodates a Fuse	False
Approval Agency	CSA, UL, VDE
Connector Style	IEC 320-C8, Non-Polarized
Connector Type	Receptacle, Male Pins
Current Rating - Appliance Inlet	2.5 A
Filter Type	Unfiltered - Commercial
Mounting Type	Panel Mount, Snap-In
Number of Positions	2
Panel Cutout Dimensions [x]	21 mm
Panel Cutout Dimensions [y]	13 mm
Panel Thickness	5.1 mm
Panel Thickness	0.201 in
Termination	Solder Eyelet
Voltage Rating - Appliance Inlet	250 VAC

770W-X2 Series

Part	Voltage Rating - Appliance Inlet	Mounting Type	Features	Termination	Connector Style	Connector Type	Panel Thickness	Panel Thickness	Number of Positions	Current Rating - Appliance Inlet	Approval Agency	Filter Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Termination	Termination	Material Flammability Rating
Qualtek 770W-X2/10	250 VAC	Panel Mount Right Angle Snap-In Through Hole	Board Lock	Solder	IEC 320-C8 Non-Polarized	Receptacle Male Pins	1.6 mm	0.063 in	2	2.5 A	CSA UL VDE	Unfiltered - Commercial
Qualtek 770W-X2/12	250 VAC	Panel Mount Snap-In Through Hole		Solder	IEC 320-C8	Receptacle Male Pins			2	2.5 A	CSA UL VDE	Unfiltered - Commercial	24.5 mm	12.5 mm	0.024 in	0.079 "	2 mm	0.6 mm
Qualtek 770W-X2/13	250 VAC	Panel Mount Snap-In		Solder Eyelet	IEC 320-C8	Receptacle Male Pins			2	2.5 A	CSA UL VDE	Unfiltered - Commercial	24.5 mm	12.5 mm	0.024 in	0.079 "	2 mm	0.6 mm
Qualtek 770W-X2/11	250 VAC	Panel Mount Flange Through Hole Right Angle		Solder	IEC 320-C8 Non-Polarized	Receptacle Male Pins	6.8 mm	0.268 in	2	2.5 A	CCC CSA UL VDE	Unfiltered - Commercial	21 mm	12.4 mm
Qualtek 770W-X2/07	250 VAC	Panel Mount Right Angle Snap-In Through Hole		Solder	IEC 320-C8 Non-Polarized	Receptacle Male Pins	2.5 mm	0.098 in	2	2.5 A	CSA UL VDE	Unfiltered - Commercial	19.5 mm	12.5 mm
Qualtek 770W-X2/04	250 VAC	Panel Mount Snap-In		Solder Eyelet	IEC 320-C8 Non-Polarized	Receptacle Male Pins	5.1 mm	0.201 in	2	2.5 A	CSA UL VDE	Unfiltered - Commercial	21 mm	13 mm
Qualtek 770W-X2/03	250 VAC	Flange Panel Mount		Solder Quick Connect	IEC 320-C8 Non-Polarized	Receptacle Male Pins			2	2.5 A	CSA UL VDE	Unfiltered - Commercial	21 mm	13 mm					2.8 mm	0.11 "
Qualtek 770W-X2/08	250 VAC	Panel Mount Right Angle Snap-In Through Hole	Board Lock	Solder	IEC 320-C8 Non-Polarized	Receptacle Male Pins	2.3 mm	0.091 in	2	2.5 A	CSA UL VDE	Unfiltered - Commercial	20 mm	12.8 mm							UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	N/A	0	$ 0.00

Description

General part information

770W-X2 Series

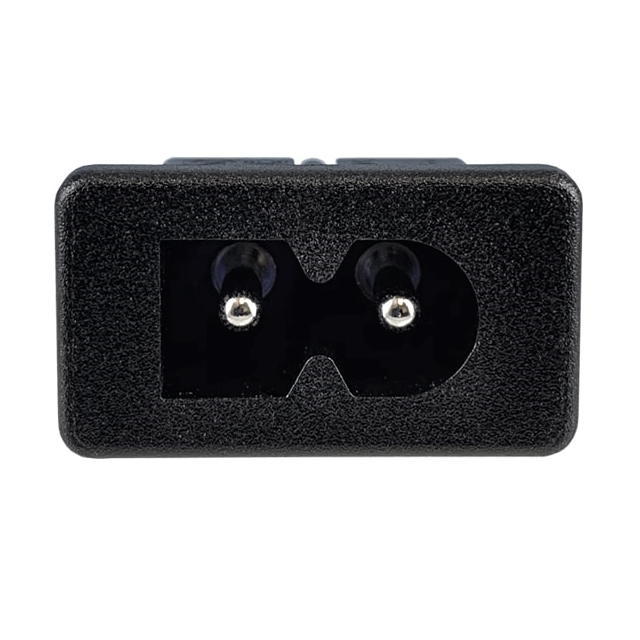

Power Entry Connector Receptacle, Male Pins IEC 320-C8, Non-Polarized Panel Mount, Snap-In
