Technical Specifications
Parameters and characteristics for this part
| Specification | 850-06/002 |
|---|---|
| Applications | General Purpose |
| Approval Agency | UR, VDE, CSA |
| Configuration | Two Stage |
| Current | 6 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Inductance | 1.7 mH, 70 µH |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 115 V, 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | N/A | 0 | $ 0.00 | |
| 960 | $ 0.00 | |||
| Tray | 10 | $ 16.20 | ||
Description
General part information
850-06 Series

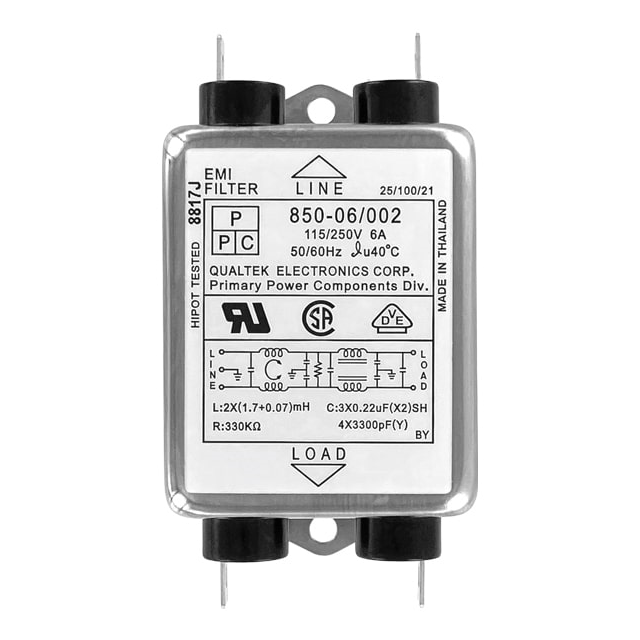

Single Phase EMC/EMI Line Filter 6 A 115V, 250V 50/60Hz Two Stage Quick Connect
