Specification	2212C SL002

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.89 mm
Jacket (Insulation) Diameter [diameter]	0.232 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.813 mm
Jacket (Insulation) Thickness	0.032 in
Jacket Color	Slate
Length	152.4 m
Length	500 ft
Number of Conductors	4
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 ░C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Communication, Control
Voltage	150 V
Wire Gauge	22 AWG

2212 Series

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Number of Conductors	Shield Type	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Usage	Length [x]	Length [x]	Jacket Color	Features	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Wire Gauge	Shield Coverage	Shield Material	Length	Length
ALPHA WIRE 2212C SL005	5.89 mm	0.232 in	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	150 V	4	Foil	80 °C	-20 ░C	Multi-Pair	Communication Control	100 ft	30.5 m	Slate	Drain Wire	Copper Tinned	30 AWG	7	Poly-Vinyl Chloride (PVC)	22 AWG
ALPHA WIRE 2212C SL002	5.89 mm	0.232 in	Poly-Vinyl Chloride (PVC)	0.813 mm	0.032 in	150 V	4	Foil	80 °C	-20 ░C	Multi-Pair	Communication Control			Slate	Drain Wire	Copper Tinned	30 AWG	7	Poly-Vinyl Chloride (PVC)	22 AWG	100 %	Aluminum	152.4 m	500 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

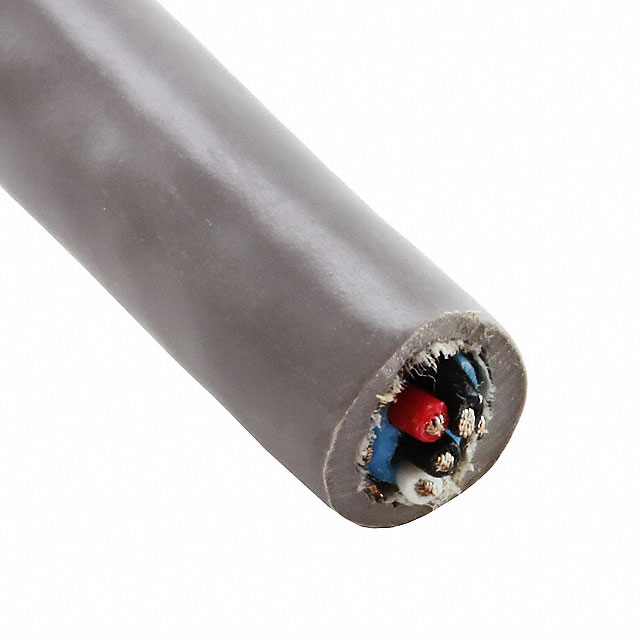

4 (2 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil 500.0' (152.4m)
