Connectors, Interconnects

09340062702

Active

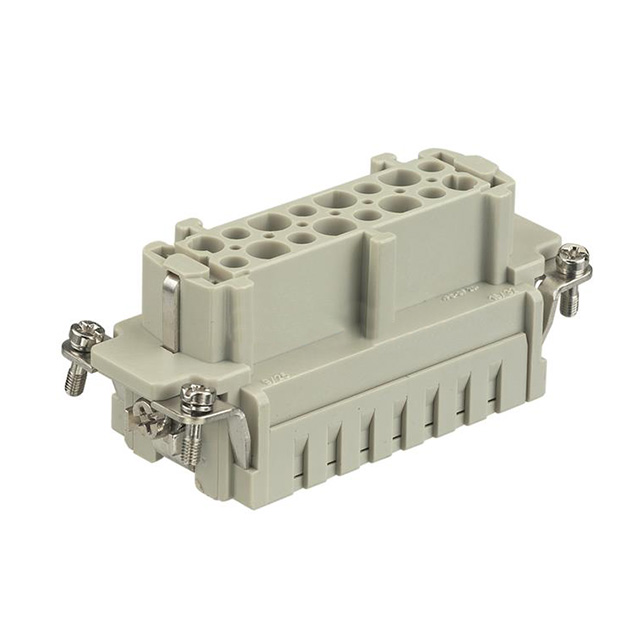

HAN HVE 6 POS. F INSERT CRIMP ROHS COMPLIANT: NA

Search across all available documentation for this part.

Connectors, Interconnects

Active

HAN HVE 6 POS. F INSERT CRIMP ROHS COMPLIANT: NA

Technical Specifications

Parameters and characteristics for this part

Specification	09340062702

Color	Gray
Connector Type	Insert without Contacts
Contact Type	Han®
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	2, 6
Number of Positions	Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 C
Size	16 B
Termination Style	Crimp
Voltage Rating	830 V

Part	Color	Material Flammability Rating	Contact Finish	Contact Material	Housing Material	Termination Style	Number of Positions	Number of Positions	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating	Size	Connector Type	Contact Type
HARTING 09340062716	Gray	UL94 V-0	Silver	Copper Alloy	Polycarbonate (PC)	Push In	2 6	Ground	Female	125 °C	-40 C	16 A	830 V	16 B	Insert	Han®
HARTING 09340062601	Gray	UL94 V-0	Silver	Copper Alloy	Polycarbonate (PC)	Screw	2 6	Ground	Male	125 °C	-40 C	16 A	830 V	16 B	Insert
HARTING 09340062702	Gray	UL94 V-0			Polycarbonate (PC)	Crimp	2 6	Ground	Female	125 °C	-40 C	16 A	830 V	16 B	Insert without Contacts	Han®
HARTING 09340062701	Gray	UL94 V-0	Silver	Copper Alloy	Polycarbonate (PC)	Screw	2 6	Ground	Female	125 °C	-40 C	16 A	830 V	16 B	Insert

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts Gray 6+2+Ground Position Crimp
