Capacitors

4TPU68MSI

Obsolete

Panasonic Industrial Automation Sales

CAP TANT POLY 68UF 4V 0805

Search across all available documentation for this part.

Capacitors

Obsolete

Panasonic Industrial Automation Sales

CAP TANT POLY 68UF 4V 0805

Technical Specifications

Parameters and characteristics for this part

Specification	4TPU68MSI

Capacitance	68 µF
ESR (Equivalent Series Resistance)	150 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Lifetime @ Temp.	1000 Hrs
Manufacturer Size Code	S09
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Package / Case	0805
Size / Dimension [x]	2 mm
Size / Dimension [x]	0.079 in
Size / Dimension [y]	0.049 in
Size / Dimension [y]	1.25 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	4 V

Part	Voltage - Rated	Manufacturer Size Code	Type	Capacitance	Lifetime @ Temp.	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Mounting Type	Features	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]
Panasonic Industrial Automation Sales 4TPU68MSI	4 V	S09	Molded	68 µF	1000 Hrs	20 %	85 °C	-55 °C	150 mOhm	Surface Mount	General Purpose	0.039 "	1 mm	0805	2 mm	0.079 in	0.049 in	1.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

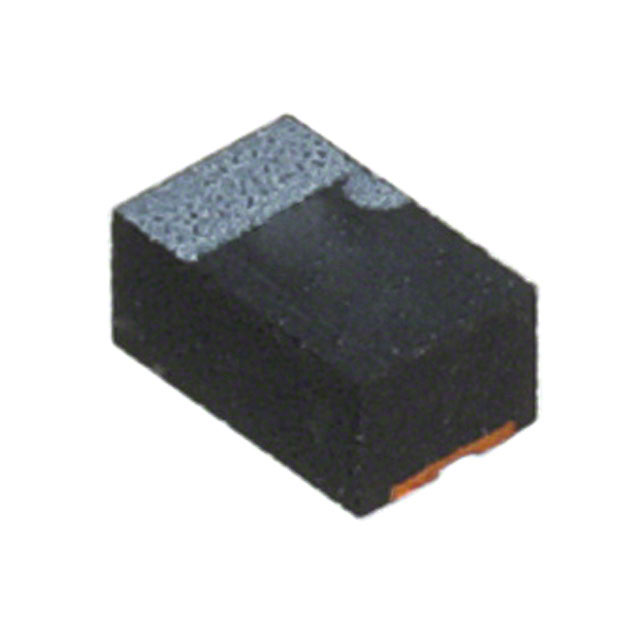

68 µF Molded Tantalum Polymer Capacitor 4 V 0805 (2012 Metric) 150mOhm @ 100kHz
