Connectors, Interconnects

XW5T-P4.0-1.1-1

Active

Omron Electronics Inc-EMC Div

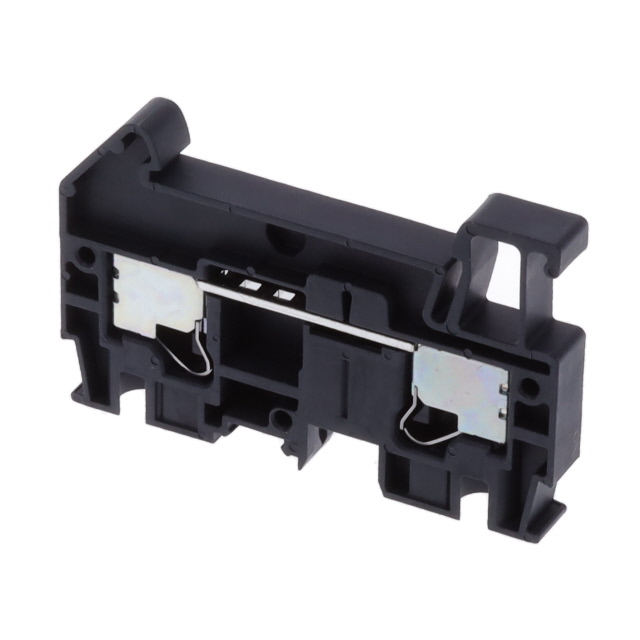

TERM BLK PUSHIN 4MM 1:1 1TIER

Search across all available documentation for this part.

Connectors, Interconnects

Active

Omron Electronics Inc-EMC Div

TERM BLK PUSHIN 4MM 1:1 1TIER

Technical Specifications

Parameters and characteristics for this part

Specification	XW5T-P4.0-1.1-1

Color	Gray
Current - IEC	32 A
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	1
Number of Positions	2
Stripping Length [x]	12 mm
Terminal - Width [y]	6.2 mm
Termination Style	Push In
Type	Feed Through
Voltage - IEC	800 V
Voltage - UL	600 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm² [Max]	6 mm²
Wire Gauge or Range - mm² [Min]	0.25 mm²

Part	Color	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Number of Levels	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - IEC	Voltage - UL	Current - IEC	Termination Style	Type	Material - Insulation	Material Flammability Rating	Terminal - Width [y]	Stripping Length [x]	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
Omron Electronics Inc-EMC Div XW5T-P4.0-2.2-1	Gray	6 mm˛	0.25 mm˛	1	10 AWG	24 AWG	800 V	600 V	32 A	Push In	Feed Through	Nylon Polyamide (PA)	UL94 V-0	6.2 mm	12 mm	4
Omron Electronics Inc-EMC Div XW5T-P4.0-1.1-2BL	Blue			2	10 AWG	24 AWG	500 V	600 V	28 A	Push In	Feed Through	Nylon Polyamide (PA)	UL94 V-0	6.2 mm	12 mm	4	0.25 mm²	6 mm²
Omron Electronics Inc-EMC Div XW5T-P4.0-1.1-2	Gray			2	10 AWG	24 AWG	500 V	600 V	28 A	Push In	Feed Through	Nylon Polyamide (PA)	UL94 V-0	6.2 mm	12 mm	4	0.25 mm²	6 mm²
Omron Electronics Inc-EMC Div XW5T-P4.0-1.2-1BL	Blue			1	10 AWG	24 AWG	800 V	600 V	32 A	Push In	Feed Through	Nylon Polyamide (PA)	UL94 V-0	6.2 mm	12 mm		0.25 mm²	6 mm²
Omron Electronics Inc-EMC Div XW5T-P4.0-1.1-1	Gray			1	10 AWG	24 AWG	800 V	600 V	32 A	Push In	Feed Through	Nylon Polyamide (PA)	UL94 V-0	6.2 mm	12 mm	2	0.25 mm²	6 mm²
Omron Electronics Inc-EMC Div XW5T-P4.0-2.2-1BL	Blue			1	10 AWG	24 AWG	800 V	600 V	32 A	Push In	Feed Through	Nylon Polyamide (PA)	UL94 V-0	6.2 mm	12 mm	4	0.25 mm²	6 mm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Connector 2 Position Feed Through Gray 10-24 AWG
