Technical Specifications
Parameters and characteristics for this part
| Specification | ELSW-E71B1-0LPNM-CB7B8 |
|---|---|
| Color | Blue |
| Current - Max [Max] | 400 mA |
| Current - Test | 350 mA |
| Height - Seated (Max) | 2.23 mm |
| Height - Seated (Max) [Max] | 0.088 in |
| Lumens/Watt @ Current - Test | 17 lm/W |
| Luminous Flux @ Current/Temperature | 19 lm |
| Luminous Flux @ Current/Temperature [Max] | 20 lm |
| Luminous Flux @ Current/Temperature [Min] | 17 lm |
| Mounting Type | Surface Mount |
| Package / Case | 1414 (3535 Metric) |
| Size / Dimension [x] | 0.138 in |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 0.138 in |
| Size / Dimension [y] | 3.5 mm |
| Supplier Device Package | SMD |
| Temperature - Test | 25 °C |
| Thermal Resistance of Package | 10 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.25 V |
| Wavelength | 465 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.06 | |
| 10 | $ 2.87 | |||
| 100 | $ 2.35 | |||
| Digi-Reel® | 1 | $ 4.06 | ||
| 10 | $ 2.87 | |||
| 100 | $ 2.35 | |||
| N/A | 0 | $ 4.11 | ||
| Tape & Reel (TR) | 400 | $ 1.95 | ||
| 800 | $ 1.86 | |||
| 1200 | $ 1.81 | |||
| 2000 | $ 1.76 | |||
| 2800 | $ 1.73 | |||
| 4000 | $ 1.71 | |||
Description
General part information
ELSW-E71 Series

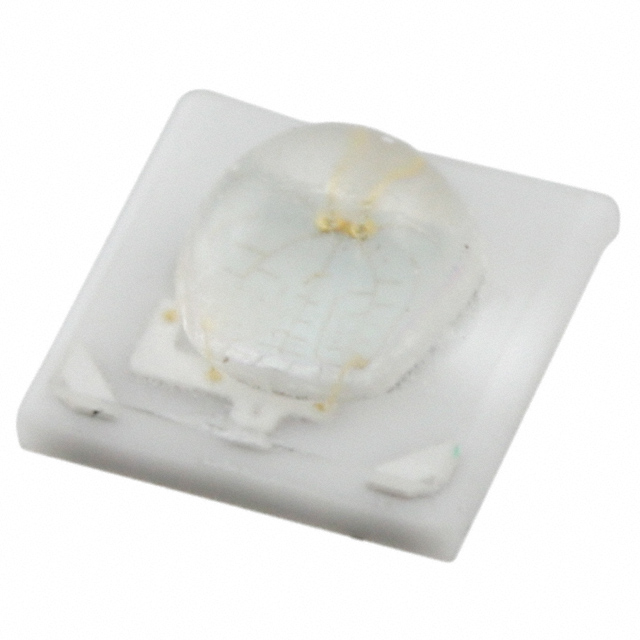

LED Lighting Color SHWO Blue 465nm (460nm ~ 470nm) 1414 (3535 Metric)
