Specification	NSVBC144EDXV6T1G

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	500 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	80
Grade	Automotive
Mounting Type	Surface Mount

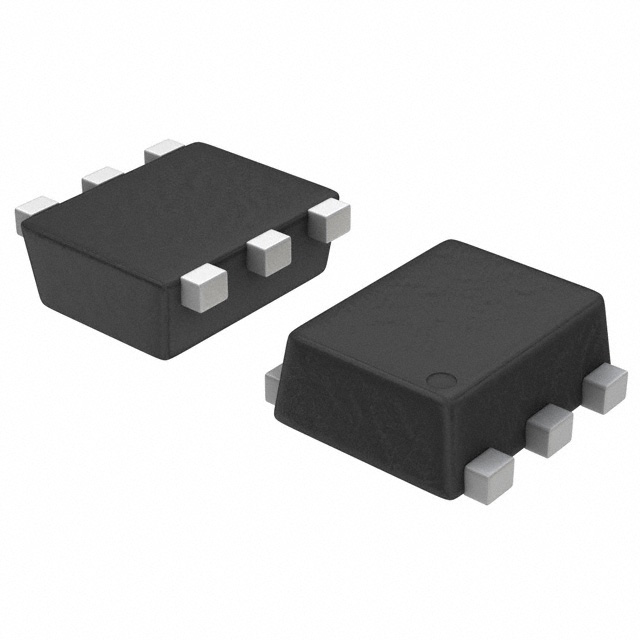

Package / Case	SOT-666, SOT-563
Power - Max [Max]	500 mW
Qualification	AEC-Q101
Resistor - Base (R1)	47 kOhms
Resistor - Emitter Base (R2)	47000 Ohms
Supplier Device Package	SOT-563
Transistor Type	2 NPN - Pre-Biased
Vce Saturation (Max) @ Ib, Ic	250 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

NSBC144WDXV6 Series

Dual NPN Bipolar Digital Transistor (BRT)

Part	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Power - Max [Max]	Package / Case	Current - Collector (Ic) (Max) [Max]	Transistor Type	Resistor - Emitter Base (R2)	Vce Saturation (Max) @ Ib, Ic	Resistor - Base (R1)	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Resistors Included	Grade	Qualification
ON Semiconductor NSBC144EPDXV6T1G	500 nA	SOT-563	80	500 mW	SOT-563 SOT-666	100 mA	1 NPN 1 PNP	47000 Ohms	250 mV	47 kOhms	Surface Mount	50 V
ON Semiconductor NSBC144EPDXV6T5G	500 nA	SOT-563	80	500 mW	SOT-563 SOT-666	100 mA	1 NPN 1 PNP	47000 Ohms	250 mV	47 kOhms	Surface Mount	50 V
ON Semiconductor NSBC144EDXV6T5G	500 nA	SOT-563	80	500 mW	SOT-563 SOT-666	100 mA	2 NPN - Pre-Biased (Dual)	47000 Ohms	250 mV	47 kOhms	Surface Mount	50 V
ON Semiconductor NSBC144EPDXV6T5	500 nA	SOT-563	80	500 mW	SOT-563 SOT-666	100 mA	1 NPN 1 PNP	47000 Ohms	250 mV	47 kOhms	Surface Mount	50 V
ON Semiconductor NSBC144EF3T5G	500 nA	SOT-1123	80	254 mW	SOT-1123	100 mA	NPN - Pre-Biased	47000 Ohms	250 mV	47 kOhms	Surface Mount	50 V
ON Semiconductor NSBC144EDP6T5G	500 nA	SOT-963	80	339 mW	SOT-963	100 mA	2 NPN - Pre-Biased (Dual)	47000 Ohms	250 mV	47 kOhms	Surface Mount	50 V
ON Semiconductor NSBC144WF3T5G	500 nA	SOT-1123	80	254 mW	SOT-1123	100 mA	NPN - Pre-Biased	22 kOhms	250 mV	47 kOhms	Surface Mount	50 V	R1 and R2
ON Semiconductor NSBC144WDXV6T1G	500 nA	SOT-563	80	500 mW	SOT-563 SOT-666	100 mA	2 NPN - Pre-Biased (Dual)	22 kOhms	250 mV	47 kOhms	Surface Mount	50 V
ON Semiconductor NSVBC144EDXV6T1G	500 nA	SOT-563	80	500 mW	SOT-563 SOT-666	100 mA	2 NPN - Pre-Biased	47000 Ohms	250 mV	47 kOhms	Surface Mount	50 V		Automotive	AEC-Q101

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 0.08
		8000	$ 0.07
		12000	$ 0.06
		28000	$ 0.06
		100000	$ 0.05
ON Semiconductor	N/A	1	$ 0.05

Description

General part information

NSBC144WDXV6 Series

This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space.

Documents

Technical documentation and resources

Package Drawing-463A-01-SOT-563-6 1.60x1.20x0.55, 0.50P

Package Drawing
